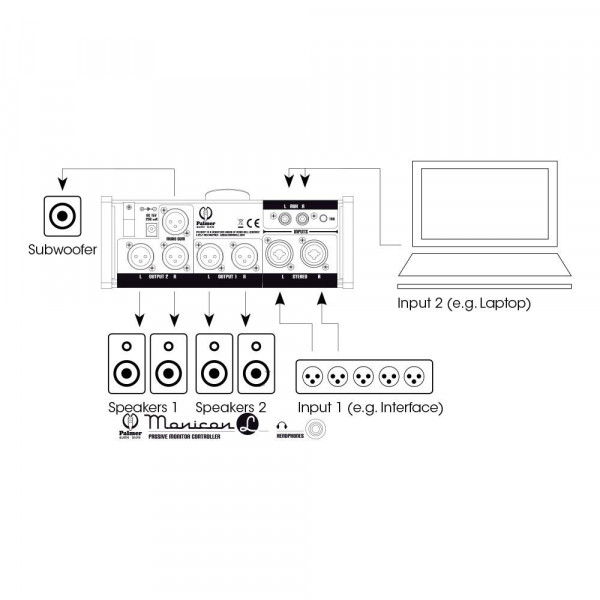

The Palmer Monicon® L is a precise, analogue volume control that connects between a computer or audio interface and active monitor speakers. The switch is completely passive and distortion-free, the LED displays and built-in headphone amplifier are powered via the included power supply.
Symmetric combo sockets serve as stereo input. The Monicon® L’s AUX input features RCA sockets and a 3.5 mm stereo jack. The compact console offers outputs for two monitor pairs and a mono summed output via XLR sockets. The stereo or AUX input can be selected alternately, the two outputs individually and together. In addition to its large volume controller, the Monicon® L is also equipped with mono, mute and PFL switches, a 6.35 mm headphone output, and separate AUX and headphone controllers for convenient operation.

  • Product type: Other Studio and Recording Equipment
  • Channels: 2
  • Inputs: 2
  • Input connectors: 3.5 mm TRS , RCA , XLR
  • Input type: balanced/unbalanced (depending on TS/TRS connection)
  • Max. input leve: l20 dBu
  • Input impedance: (balanced) 10k Ohm(s) , (unbalanced) 5k Ohm(s)
  • Outputs: 3
  • Output connectors: XLR
  • Output type: balanced/unbalanced (depending on TS/TRS connection)
  • Max. output leve: l20 dBu
  • Output impedance: 600 Ohm(s)
  • Frequency response: 10 - 40000 Hz
  • Total Harmonic Distortion (THD): 0.001 %
  • Max. attenuation: (Attenuator + Mute) 112 dB , (Attenuator) 85 dB
  • Controls: attenuation , input selector , mono , mute , output selector , PFL source
  • Cabinet material: sheet steel , wood
  • Cabinet surface: Powder coated
  • Width: 218 mm
  • Height: 77 mm
  • Depth: 100 mm
  • Weight: 1,14 kg
