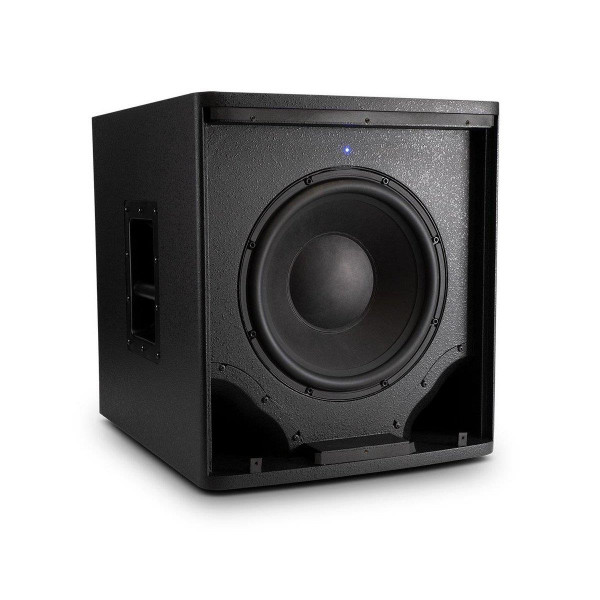

KALI AUDIO WS-12

The WS-12 was designed as a companion subwoofer for Kali’s LP- and IN-Series Studio monitors.

When used with a pair of Kali monitors, the subwoofer’s crossover and gain settings can be configured to precisely match those of the full-range monitors. With these settings dialed in, set the subwoofer between the speakers, and turn all speakers’ volume knob either to noon or all the way up. The subwoofer’s level will be exactly where it needs to in order to match the full- range speakers.

The WS-12 can be used for bass management in systems as large as 5.1 with any Kali monitors.

Convenient settings allow the use of an external crossover, and the WS-12 can even be configured as a dedicated Low Frequency Effects channel.

Specifications

Powered: Yes

Amp Class: D

Continuous Power: 500W

Peak Power: 1000W

Driver Size: 12 Inches

Freq Response: (-10 dB): 23Hz - 160 Hz

Freq Response: (+/-3 dB): 30Hz - 160 Hz

Crossover: Selectable; See User's Manual

Max SPL: 123dB

Unbalanced Inputs: Stereo RCA

Balanced Inputs: Stereo TRS/XLR Combi Jack

Balanced Outputs: Stereo XLR

XLR Pass-Through Noise: .09 mV; 99 dB Signal-to-Noise

THD: <2% (95 dB @1m w/100 Hz crossover)

Other Inputs/Outputs: 1/4-Inch Footswitch Input

Enclosure: 18mm Plywood

Height: 19 Inches (48.3cm)

Depth: 17 Inches (43.2cm)

Width: 16 Inches (40.7cm)

Weight: 63 Lbs (29kg)
