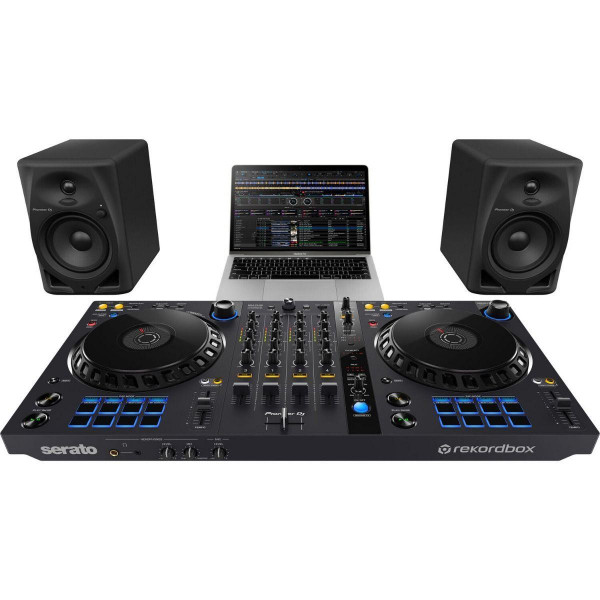

PIONEER DM-50D

The DM-50D speakers deliver balanced, punchy bass sound and they can pump out extra power thanks to the new Class D amplifier and 5-inch woofer in each unit. Flick the switch to change from DJ mode to Production mode and the DSP settings will automatically create the best sound for each application.

Type

2-way bass reflex, active monitor speakers

Tweeter

3/4” (19 mm) soft dome

Woofer

5" (127 mm) fiberglass cones

What's in the Box

DM-50D

Power cord

Audio converter cable (3.5 mm stereo mini plug to RCA)

Speaker cord

Bottom cushion

Quick Start Guide

Precautions for Use

Warranty

Dimensions (W x H x D)

Lch: 175 x 262 x 257 mm / 6.89” x 10.32” x 10.12”

Rch: 175 x 262 x 247 mm / 6.89” x 10.32” x 9.72”

Weight

Lch: 3.9 kg / 8.6 lbs.

Rch: 3.5 kg / 7.7 lbs.

Power Supply

AC 100-240 V, 50 Hz / 60Hz

Amplifier Output

Lch: 25 W / 4 Ω

Rch: 25 W / 4 Ω

Impedance

10 kΩ

Enclosure

Bass reflex

Enclosure material

MDF vinyl laminate

Power Consumption

25 W

Power consumption during standby mode

0.3 W or less

Terminals

Inputs

1/4” TRS jack x 1 (balanced input)

RCA pin jack x 1 (unbalanced input)

3.5 mm stereo mini jack x 1 (unbalanced input)

Outputs

3.5 mm stereo mini jack x 1
