- Pieejamība: SAZINIES PAR PIEEJAMĪBU
- Ražotājs: Focusrite
- Modelis: MOCL0005UKEU
Sazinies ar mums
8-IN, 8-OUT. OVER ADAT
Clarett OctoPre gives you eight Clarett mic pres renowned for their transparency, and eight outputs too. You can use these to extend the capabilities of your Clarett audio interface or any other interface fitted with ADAT optical inputs and outputs.
EIGHT CLARETT MIC PRES WITH EXTRA AIR
The eight mic pres have been designed specifically for the Clarett range, with plenty of gain, yet low noise and distortion – and great sound quality. They are Air-enabled, so can reproduce the input impedance, clarity and frequency response curve of our original ISA mic preamp.
MIC, LINE AND INSTRUMENT INPUTS

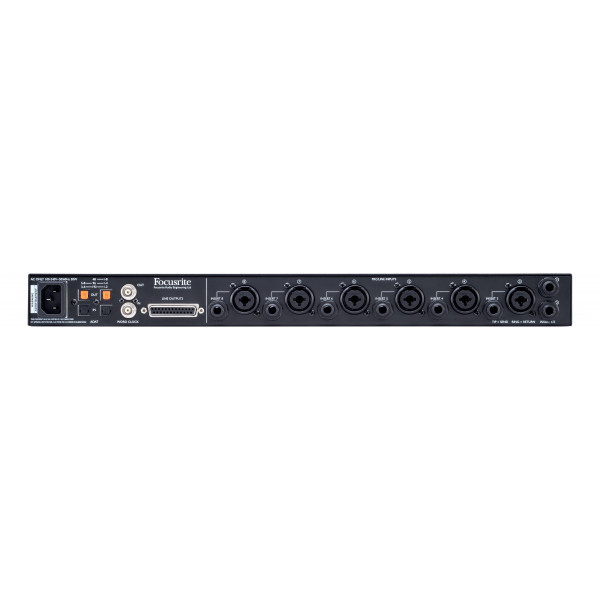

The front panel includes dual instrument inputs featuring extra headroom to handle the loudest pickup, while the rear panel includes universal XLR/jack connectors for the remaining auto-switching mic/line inputs.
INSERT POINTS
Each input has its own switched insert point for single-cable connection of compression, equalisation and other outboard analogue processing – with hardwired relay bypass so you can leave outboard gear or a patchbay connected ready to access at the press of a button.
EIGHT OUTPUTS
The Clarett OctoPre offers up to eight ADAT digital channels feeding 25-pin DSUB rear-panel analogue outputs, making it useful for mixing as well as tracking. The line outputs can optionally provide feeds from the mic pres – useful for feeding a live console while recording the digital outputs.
WHAT'S IN THE BOX
Clarett OctoPre
Power Supply
Focusrite – Red Plug-in Suite: accurately models our classic Red 2 equaliser and Red 3 compressor
Softube – Time and Tone Bundle: four of Softube's world-class reverb, delay, mastering and distortion plug-ins
Focusrite – Plug-in Collective: exclusive offers, tutorial content and more, from some of the most innovative and prestigious plug-in companies
ADAT cable sold separately.
SPECIFICATIONS IN DETAIL
We always quote 'real world' performance figures (measured to the AES17 standard). Some companies choose to quote chipset performance, which is misleading, and here's why.
SUPPORTED SAMPLE RATES
44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
MICROPHONE INPUTS
Frequency Response
20 Hz - 35 kHz ±0.1 dB
Dynamic Range (Without Insert)
118 dB (A-weighted)
Dynamic Range (With Insert)
115 dB (A-Weighted)
THD+N
0.001%
Noise EIN
–128 dBu (A-Weighted)
Maximum input level
+18 dBu ±0.5 dB
Gain Range
57dB
LINE INPUTS
Frequency Response
20 Hz - 35 kHz ±0.1 dB
Dynamic Range (Without Insert)
117 dB (A-weighted)
Dynamic Range (With Insert)
115 dB (A-Weighted)
THD+N
0.001%
Maximum input level
+26 dBU ±0.5 dB
Gain Range
57dB
INSTRUMENT INPUTS
Frequency Response
20 Hz – 35 kHz ± 0.1 dB
Dynamic Range (Without Insert)
116 dB (A-weighted)
Dynamic Range (With Insert)
114 dB (A-Weighted)
THD+N
0.001%
Maximum input level
+14dBu ±0.5 dB
Gain Range
57dB
LINE OUTPUTS
Dynamic Range (Line Outputs)
118 dB (A-Weighted)
Maximum Output Level (0 dBFS)
+16 dBu, balanced
THD+N
0.0007%
Skaņas kartes | |
Bitu sistēma | 24 |
Ekstras | Worldclock |
Ieeju skaits | 8 |
Izeju skaits | 8 |
Pieslēguma veids | ADAT |
Veids | Mikrofona |
