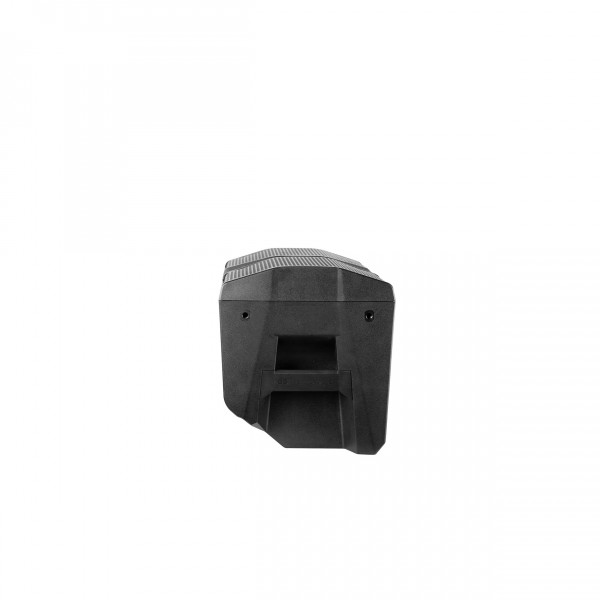

DB TECHNOLOGIES OPERA REEVO 210

DB TECHNOLOGIES OPERA REEVO 210
DB TECHNOLOGIES OPERA REEVO 210
DB TECHNOLOGIES OPERA REEVO 210
DB TECHNOLOGIES OPERA REEVO 210
DB TECHNOLOGIES OPERA REEVO 210
DB TECHNOLOGIES OPERA REEVO 210
DB TECHNOLOGIES OPERA REEVO 210
DB TECHNOLOGIES OPERA REEVO 210
DB TECHNOLOGIES OPERA REEVO 210
DB TECHNOLOGIES OPERA REEVO 210
DB TECHNOLOGIES OPERA REEVO 210
DB TECHNOLOGIES OPERA REEVO 210
DB TECHNOLOGIES OPERA REEVO 210
DB TECHNOLOGIES OPERA REEVO 210
DB TECHNOLOGIES OPERA REEVO 210
DB TECHNOLOGIES OPERA REEVO 210

OPERA REEVO 210 and OPERA REEVO 212 deliver an astonishing sound pressure level with touring-grade sound definition and a remarkable low-end extension in a compact and freshly designed enclosure accessible to anybody who wants great sound anywhere.


The Quasi 3-way configuration delivers a vigorous yet pristine sound. This bold acoustic design is in-fact unparalled in its category, inspired by dBTechnologies touring series, marks a clear step-up In the longest running and most appreciated dBTechnologies active speaker series of all times.


Opera Reevo translates the mix in an impeccable way, adapting the speaker to complex musical material especially when rich in the midrange region, where separation and clarity can really make a difference in the outcome of any performance.

This is granted by the coaxial acoustic design, featuring a front Integrated HF horn with diamond-shaped cutouts with the aim of rendering comb filtering-free high frequency reproduction, and at the same time of improving the upper woofer’s efficiency.

Another phase plug enhances the lower woofer efficiency: this acoustic device greatly improves the transient response and overall behavior of this transducer.

Low noise reflex ports are integrated in the front molding. The honeycomb structure inside the ports helps reducing wind turbulence caused by the high airflow of this high SPL powerhouse.

Both models are equipped with a Class-D Digipro G2 amplifier which delivers an impressive 1050 W RMS and 2100 W Peak power, and features advanced DSP processing where FIR linear phase filters allow the systems to achieve a coherent audio performance, rendering an uniform and crystal-clear sound. Moreover, Opera Reevo offers factory-tailored voicing presets to adapt to multiple scenarios, including when in need of a wedge stage monitor or a completely standalone full-range PA system.


This versatile sound processing works in tandem with a cleverly designed box shape which combines cutting-edge design and ease of use. OPERA REEVO can be used as a wedge stage monitor or on a classic speaker stand support. When paired with a subwoofer can be mounted on a 36mm standard pole, and can be also suspended thanks to the integrated 3x M10 threaded eyebolts, making this enclosure a perfect permanent installation complement.


Both cabinets have a very compact size compared to the output SPL of 132.5 dB (REEVO 210) and 133 dB (REEVO 212), yet featuring 2x Neodymium woofers (10” for REEVO 210 and 12” for REEVO 212) and one 1.75” coaxial compression driver, keeping the overall weight down to 17.2 Kg / 37 lbs (REEVO 210) and 20.4 Kg / 44 lbs (REEVO 212).


When it comes down to business, Opera Reevo outstanding voicing ensures seamless and transparent rendition of any speech, where intelligibility is mission critical (such as corporate events or houses of worship) with a very wide nominal dispersion: 100°x80° (REEVO 212) and 100°x90° (REEVO 210) granting greatly consistent coverage from every listening position.


Technical Data
Speaker Type
Quasi 3-Way Active Speaker
Acoustical data
Frequency Response [-10dB]
54 - 19.400 Hz
Frequency Response [- 6dB]
60 - 19.100 Hz
Max SPL
132.5 dB
HF
1" Exit CD, 1.75" v.c.
Type HF
Compression driver
Horizontal Directivity
100°
Vertical Directivity
90°
Horn
Asymmetrical Horn
LF
2x 10" Neo, 2.5" v.c.
Amplifier
Amp Technology
Digipro G2 with SMPS
Amp Class
Class D
RMS Power
1050 W (525W + 525W)
Peak Power
2100 W (1050W + 1050W)
Processor
Controller
DSP 28/56 bit
AD/DA Converter
24 bit/48 KHz
CrossOver Frequency
1260 Hz
Limiter
Peak, RMS, Thermal
Advanced DSP Functions
Linear Phase FIR Filters
Input
Signal Input
1x Combo (XLR/Jack 6.3 mm) Line
Signal Output
1x XLR Male (True link)
Controls
Gain (rotary)
Preset (Flat, Playback, Wedge)
Mechanics
Housing
Polyproylene
Grille
Full grille
Handles
1 on left Side, 1 on Top
Rigging Points
2x M10 on Top + 1x M10 on Back
Pole Mount
D36 mm
Width
300 mm (11.81 in)
Height
604 mm (23.78 in)
Depth
324 mm (12.76 in)
Weight
17.2 kg (37 lbs)


Skandas un PA sistēmas
Frekvenču diapazons (Hz) 60 - 19.100
Jauda (RMS), W 1050
Korpusa materiāls Polipropelēns
Skaļruņa diametrs (collas) 2x12
Skaļums (max SPL), dB 132.5
Skaņas pārklājums 100° x 90°
Skandu ekstras DSP / FIR filtrs
