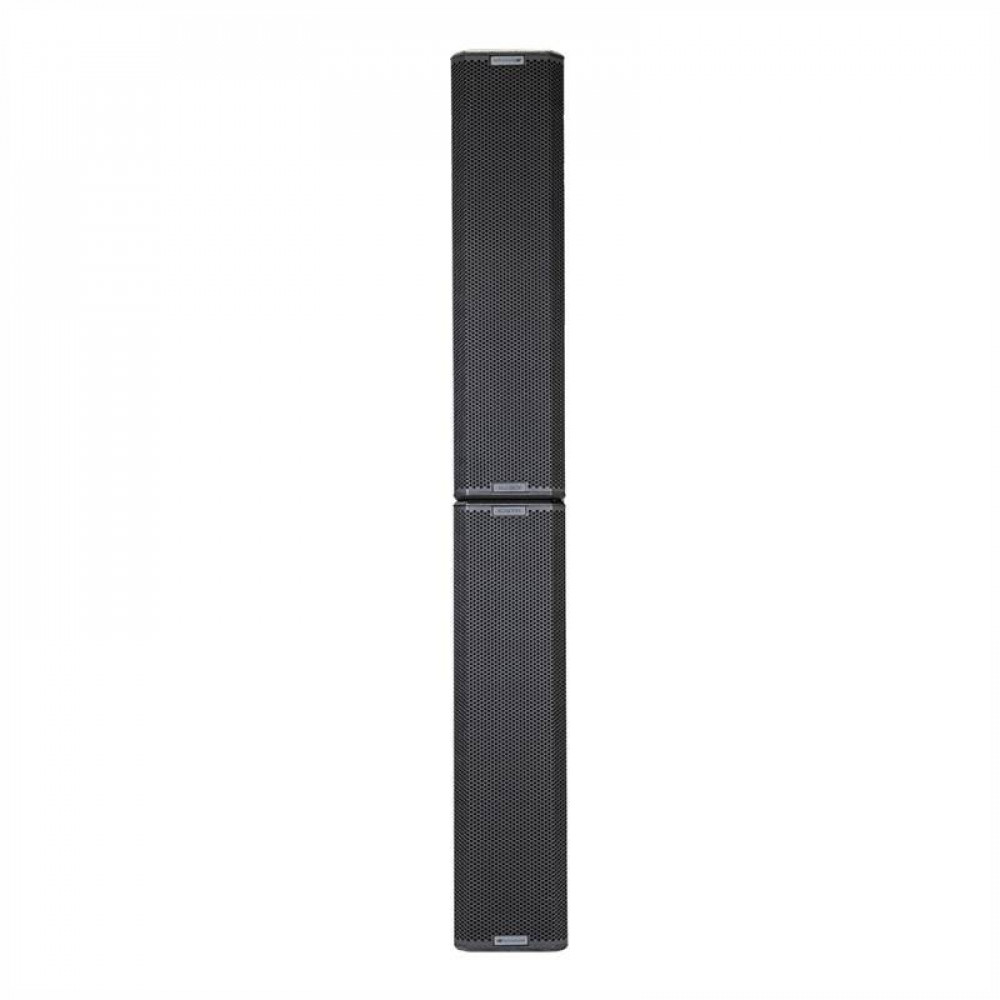

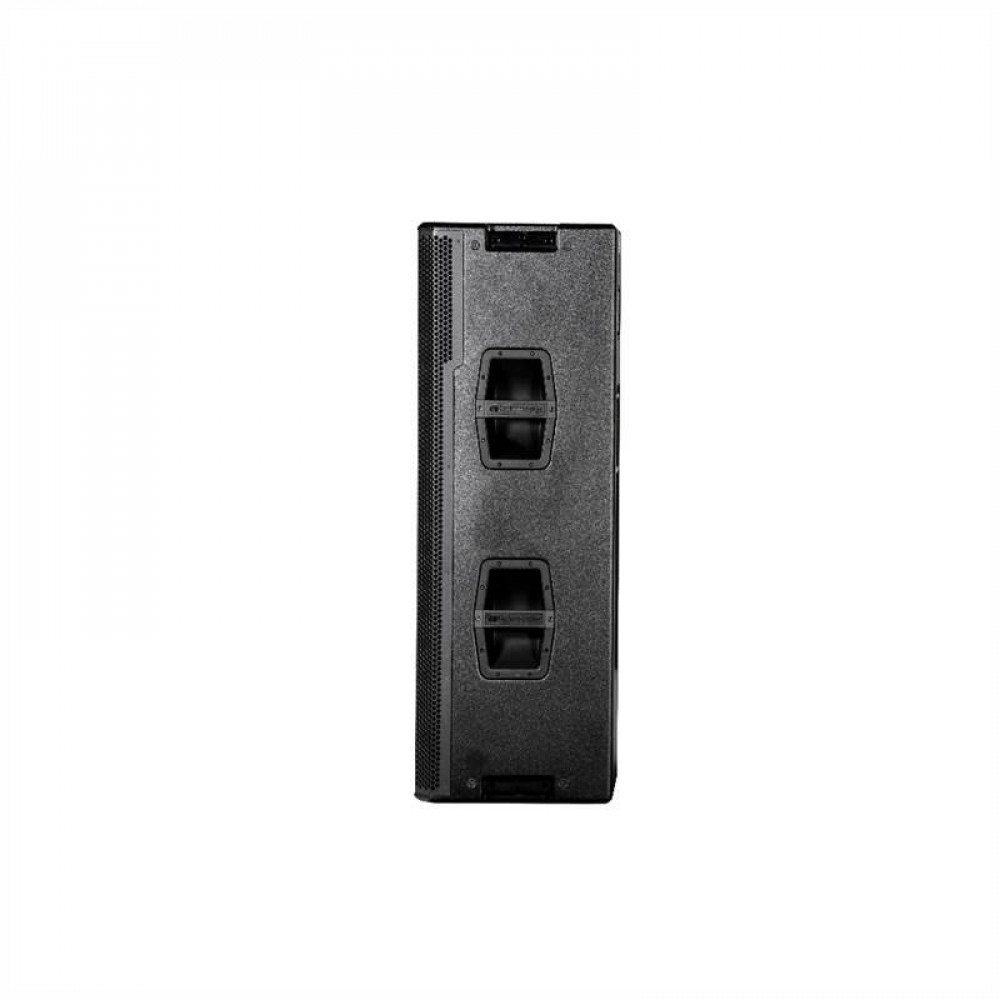

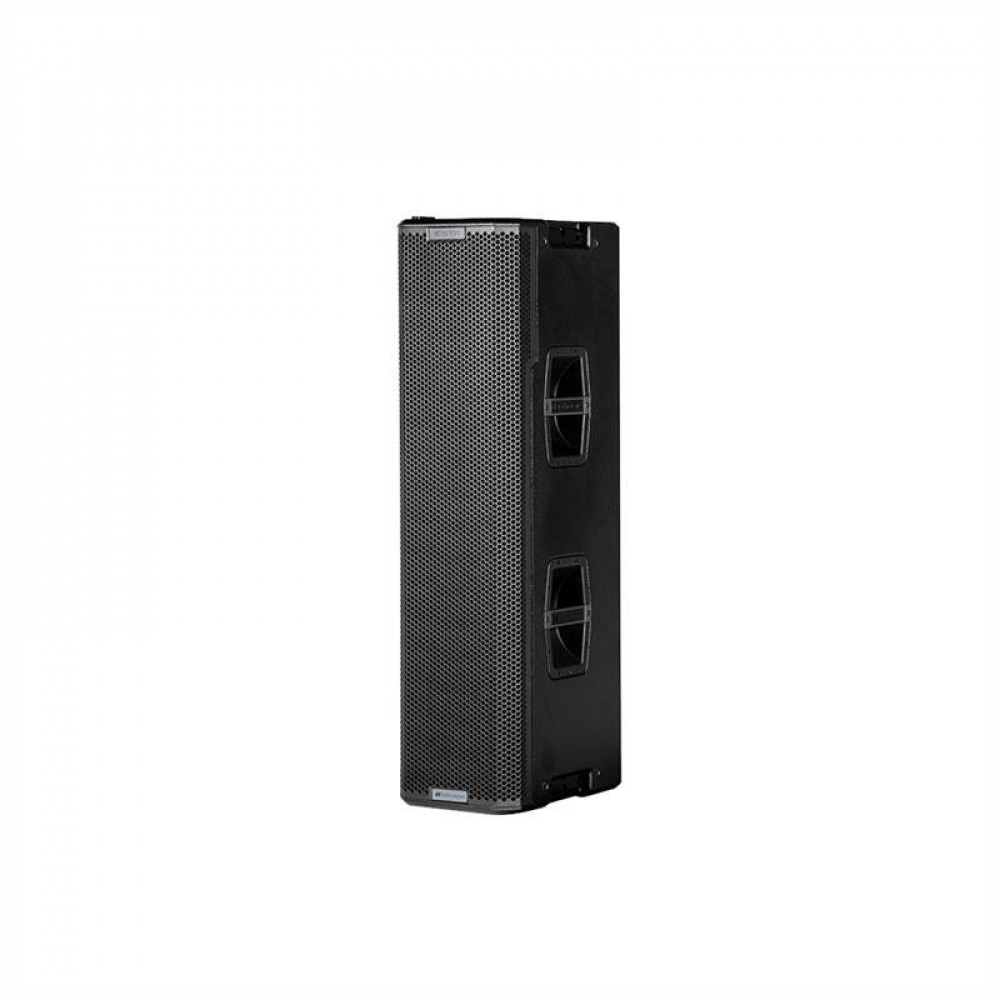

The Ingenia IG5TR loudspeaker elevates the sound experience, expanding the possibilities for live applications and installations. Thanks to advanced technology, an optimized design, and high dynamic range sound performance, the IG5TR offers unparalleled flexibility, typical of dBTechnologies' column series, for powerful, impactful, and precise performances.

Advanced technology
The IG5TR system is a 2-way Quad-amplified system equipped with advanced beam steering and beamforming technologies, allowing precise control over directivity. The innovative AWG [Asymmetric Waveguide] optimizes vertical coverage across the entire frequency spectrum (930 Hz - 20 kHz), reducing internal turbulence and improving sound distribution to ensure clarity and precision. The asymmetrical vertical dispersion focuses on the lower half (+20° in the upper part and 55° in the lower part), minimizing comb filtering when configuring a headstack of two IG5TR tops.

Directivity and flexibility
The horn with a vertical angle of +20° / -55° increases directivity, allowing optimal sound control, while the possibility of rotation in +90/0/-90 steps ensures total versatility in any scenario. The advanced directivity control allows the sound beam to be shaped and directed along the vertical axis with 7 tilt steps (from -10° to +10°) both in standalone and coupled modes. Two vertical beamforming steps are available only in headstack mode: Beamforming: The sound beam is widened or narrowed along the vertical axis, only in headstack mode, with narrow or wide steps (default: narrow). Beamsteering: The beam moves along the vertical axis with 7 adjustable steps (10° / 5° / 2.5° / 0° / -2.5° / -5° / -10°), both in headstack and standalone modes. High-Efficiency Amplification The IG5TR is equipped with a Class-D 4-channel amplifier, 400W per channel, capable of delivering 1600W RMS. This module is designed to optimize output power, adapting perfectly to the electroacoustic chain, and ensuring controlled, dynamic transients.

Smart control and connectivity
The integrated DSP, supported by a high-brightness OLED display, provides precise real-time monitoring. RDNet connectivity allows full remote control, while the 24-bit/96 kHz AD/DA converters (the first Ingenia at 96 kHz) ensure impeccable audio quality. Firmware updates are simple via USB-C or Aurora Net. The SPD (Speaker Position Detection) technology, based on infrared, allows the speakers to automatically communicate and synchronize when paired. The OLED display and meters are updated in real-time, thanks to the onboard accelerometer, automatically adjusting to the position of the speakers.

Durable, versatile, modular design

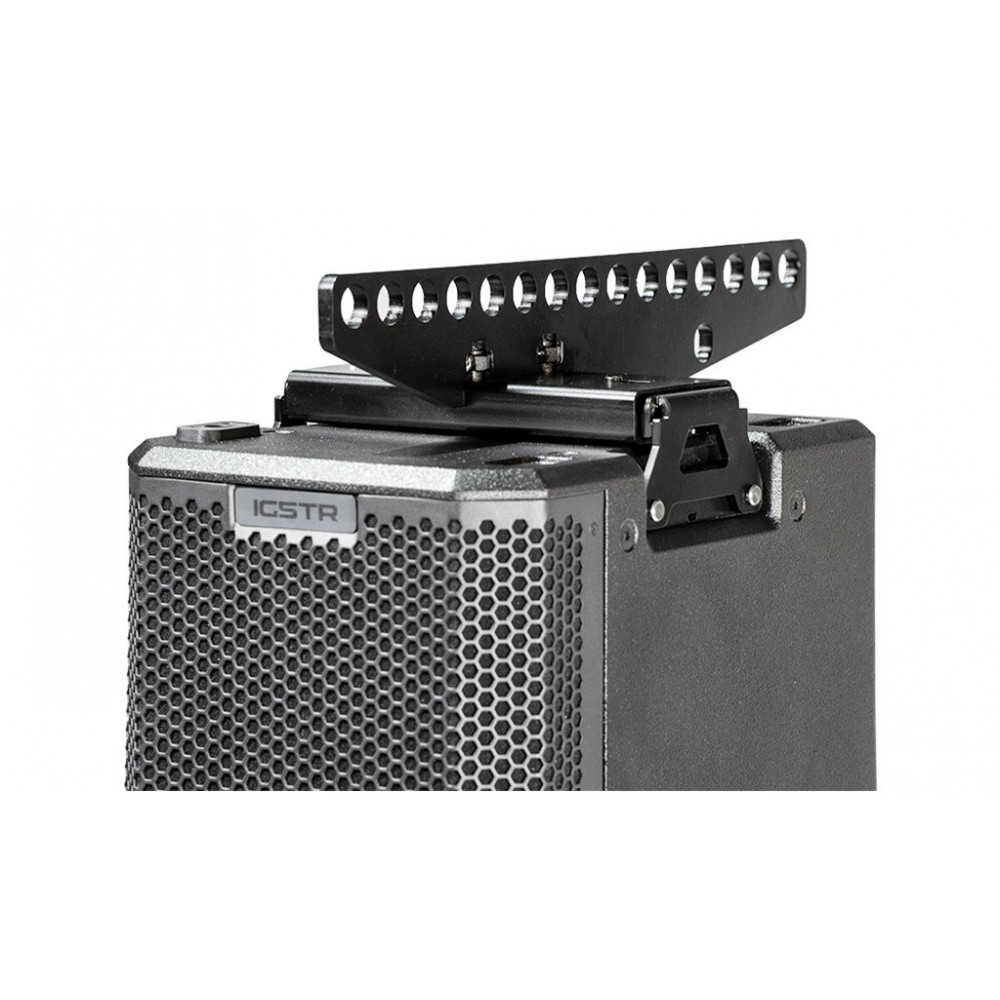

The DRK-IG5 configurable flybar is reversible, easily adapting to extreme tilts (both positive and negative). Additionally, the adjustable Ground Stack Accessory (GSA-IG5) ensures perfect alignment with any subwoofer. Fly-scaff or C-clamp can be mounted on the flybar, adding further versatility. The IG5TR is equipped with a raincover, ensuring excellent performance even in the most challenging conditions.

Technical Data
Speaker Type
2-Way Active Speaker

Acoustical data
Frequency Response [-10dB]
55- 20.000 Hz

Frequency Response [-6dB]
27 - 16.500 Hz

Max SPL
135.5 dB

HF
1.4"

HF Voice Coil
3"

Directivity (HxV)
90°H x 75°V (+20°/-55°)

HF Type
Neodymium compression driver

Horn
Rotatable

Crossover Frequency
930 Hz

LF
3x10”

LF Voice Coil
2.5"

LF Type
Neodymium

Amplifier
Amp Class
Class-D | SMPS | PFC

Peak Power
3200 W

RMS Power
1600 W

User Interface
OLED display + rotative knob w/switch

Self-rotating display
Yes

Positioning
EPD (Element Position Detection)

Display Mirroring
Yes

Processor
Controller
DSP 32 bit

AD/DA Converter
24bit/96kHz

System Presets
Factory presets + User defined

Limiter
Peak, RMS, Thermal

Advanced functions
Steering, Beam forming (when coupled)

Input
Signal Input
1x XLR link In

1x RJ45

Signal Out
1 x XLR link OUT

1x True Link Out

1x RJ45

USB connector
Yes - mini USB

Mechanics
Housing
Plywood cabinet, Black, Polyurea finish

Flyable
Yes

Handles
1x side

Width
280 mm (11.02 in)

Height
1100 mm (43.31 in)

Depth
380 mm (14.96 in)

Weight
35 Kg (77 lbs.)
Skandas un PA sistēmas
Frekvenču diapazons (Hz) 55 - 20.000
Jauda (RMS), W 1600
Korpusa materiāls Finieris
Pretestība, Ω --
Skaļruņa diametrs (collas) 3x10
Skaļums (max SPL), dB 135.5
Skaņas pārklājums 90x75
Skandu ekstras Oled ekrāns / DSP / FIR filtrs
