DB TECHNOLOGIES INGENIA IGS2
- Pieejamība: SAZINIES PAR PIEEJAMĪBU
- Ražotājs: dB Technologies
- Modelis: 1030104090
4,699.00€
bez PVN: 3,883.47€
Sazinies ar mums

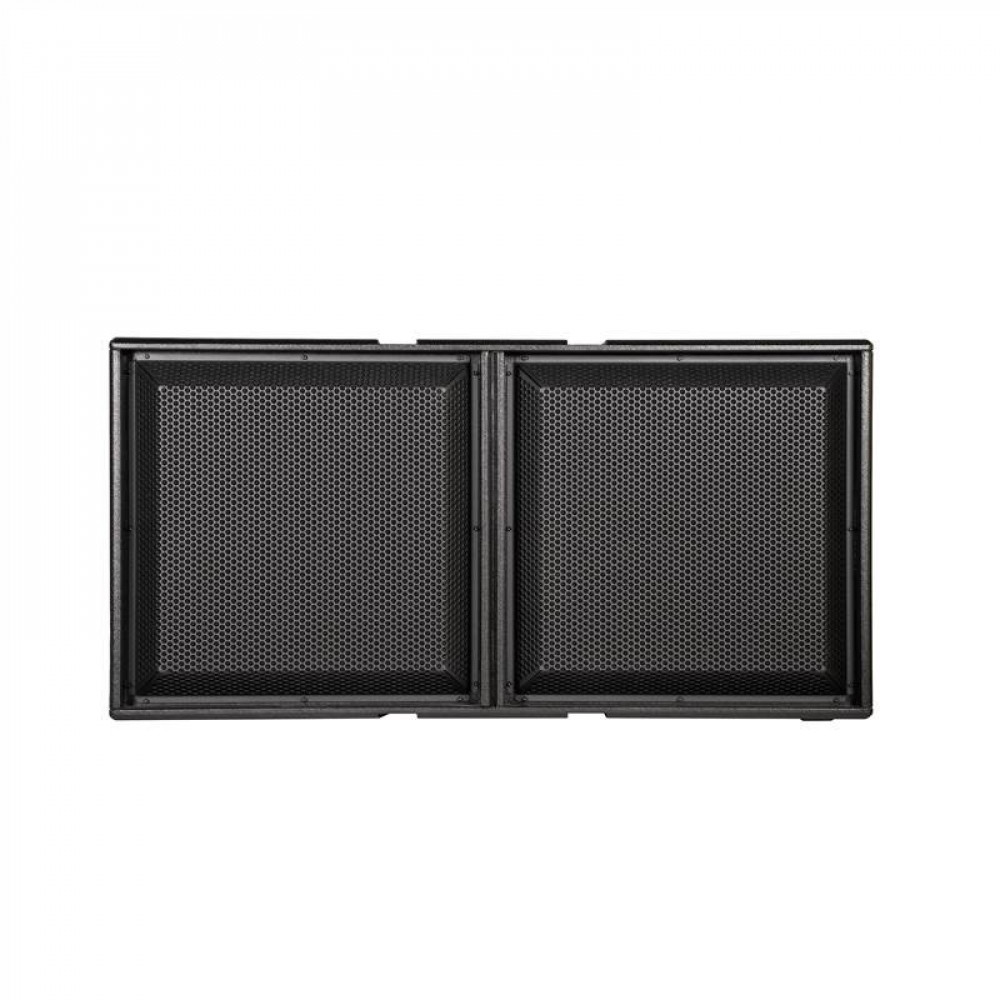

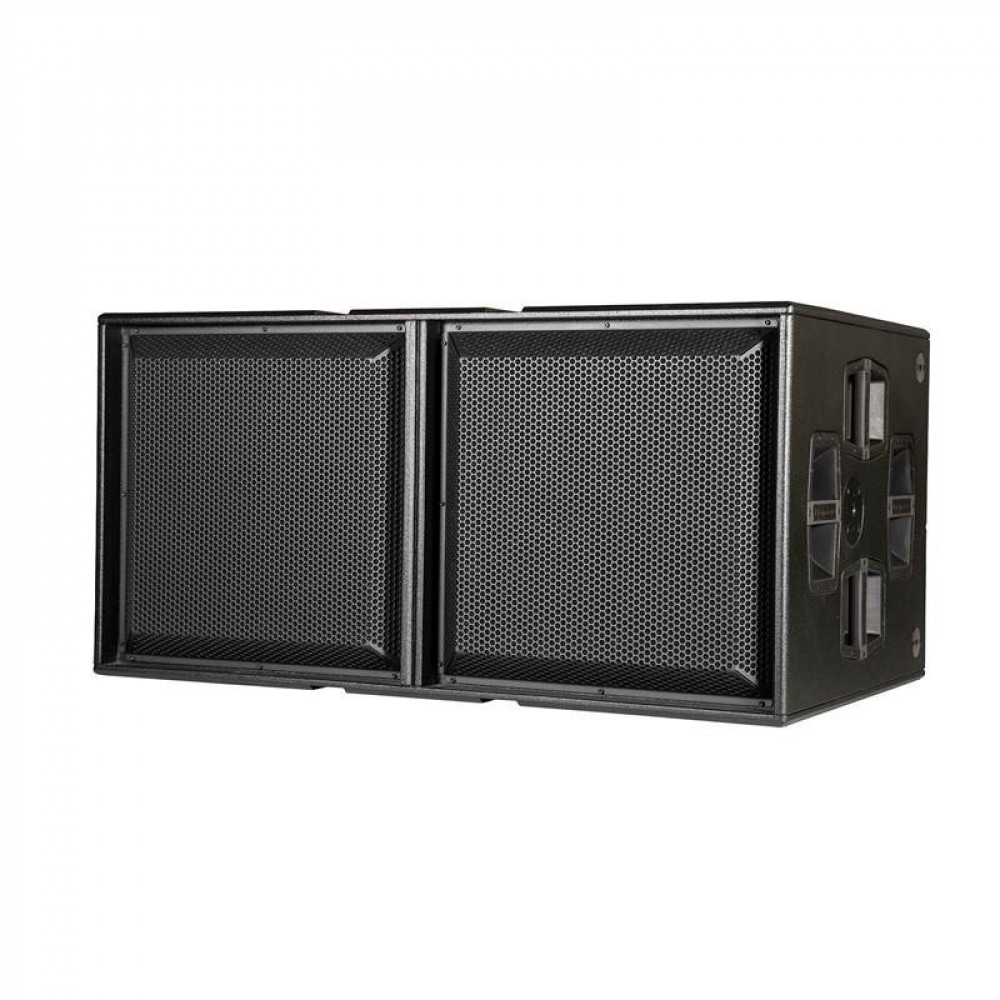

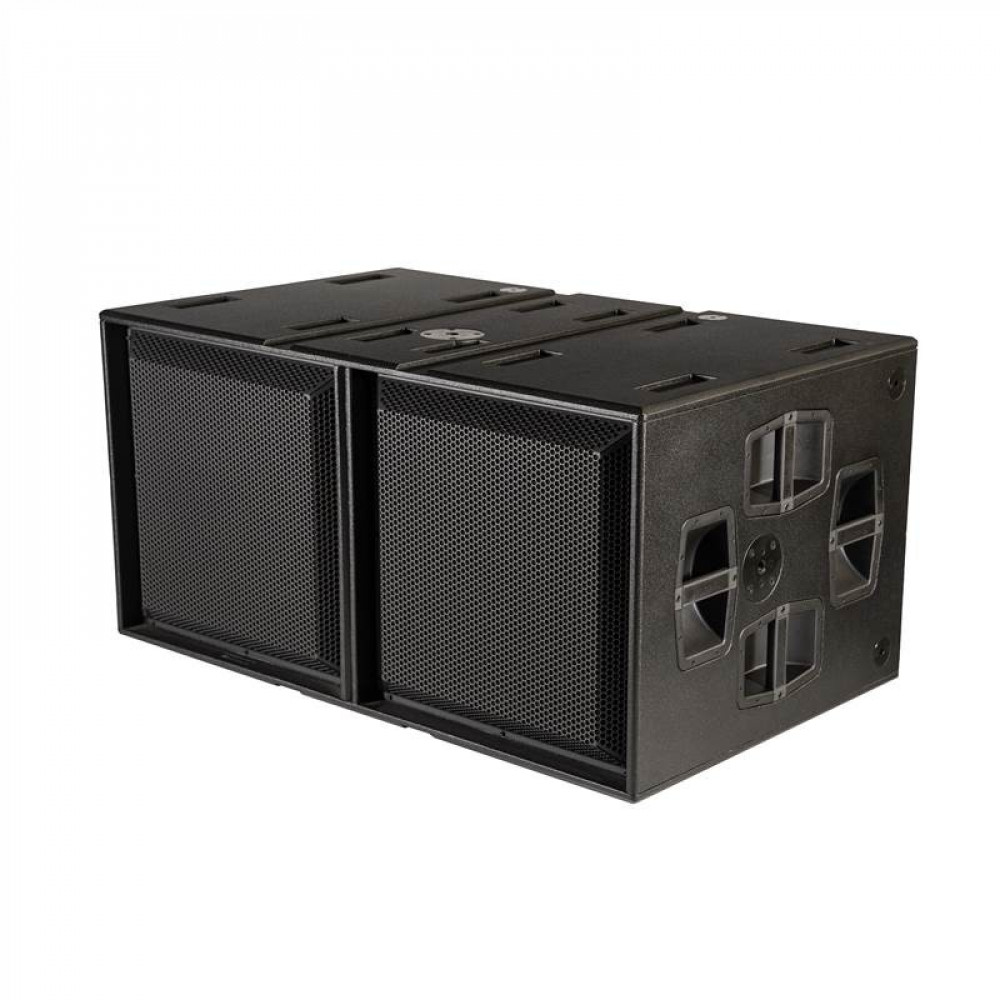

IGS2 features two 18" neodymium woofers in a solid bass-reflex cabinet. The powerful Class D DSP-controlled double amplifier section can handle up to 3200 W (RMS power), ensuring maximum reliability and full-bodied sound pressure.
The system is enabled via RDNet to complete real-time monitoring and control using Aurora Net software (available for Windows and Mac), which supports advanced configurations between IGS1 and perfect matching with dBTechnologies full-range systems.

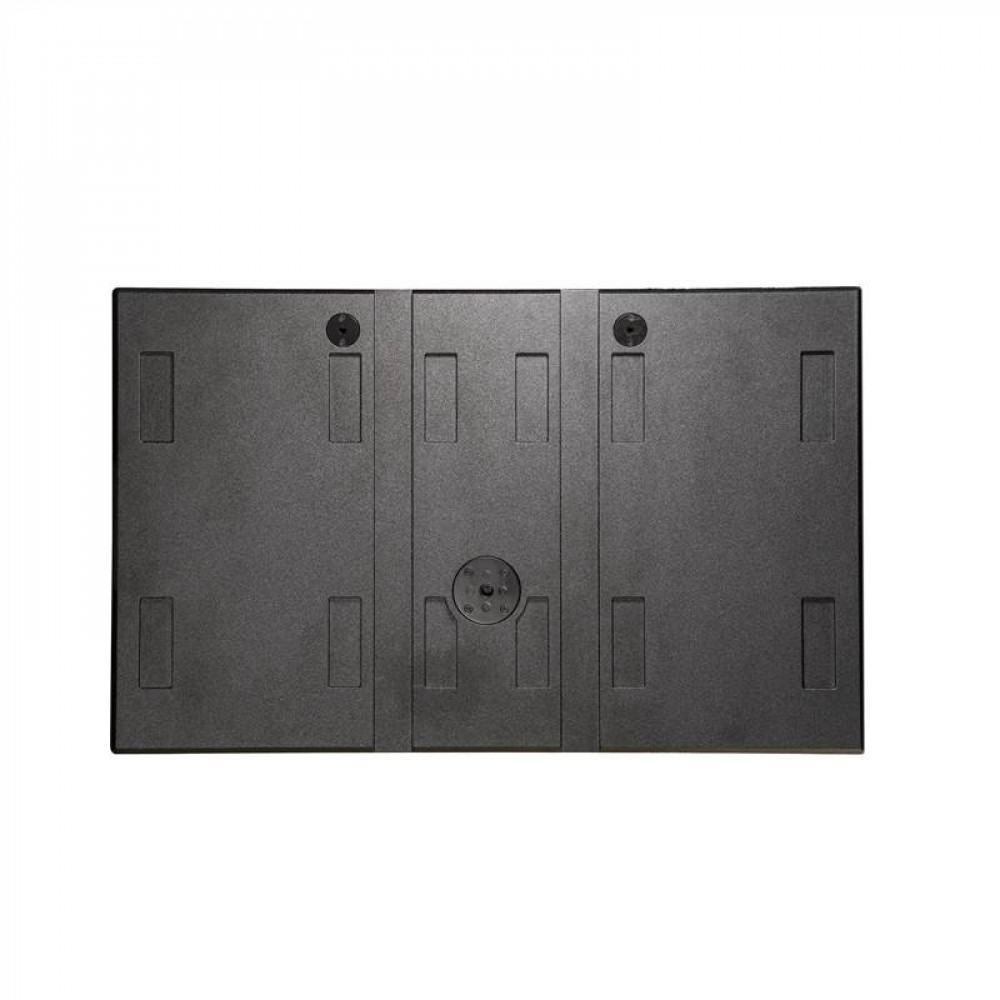

The mechanical design allows perfect scalability between this line's subwoofer models, while two M20 threaded for standard poles make matching with the top easy and immediate; four pick points allow using fly-bars dedicated to other dBTechnologies top systems for live installations.

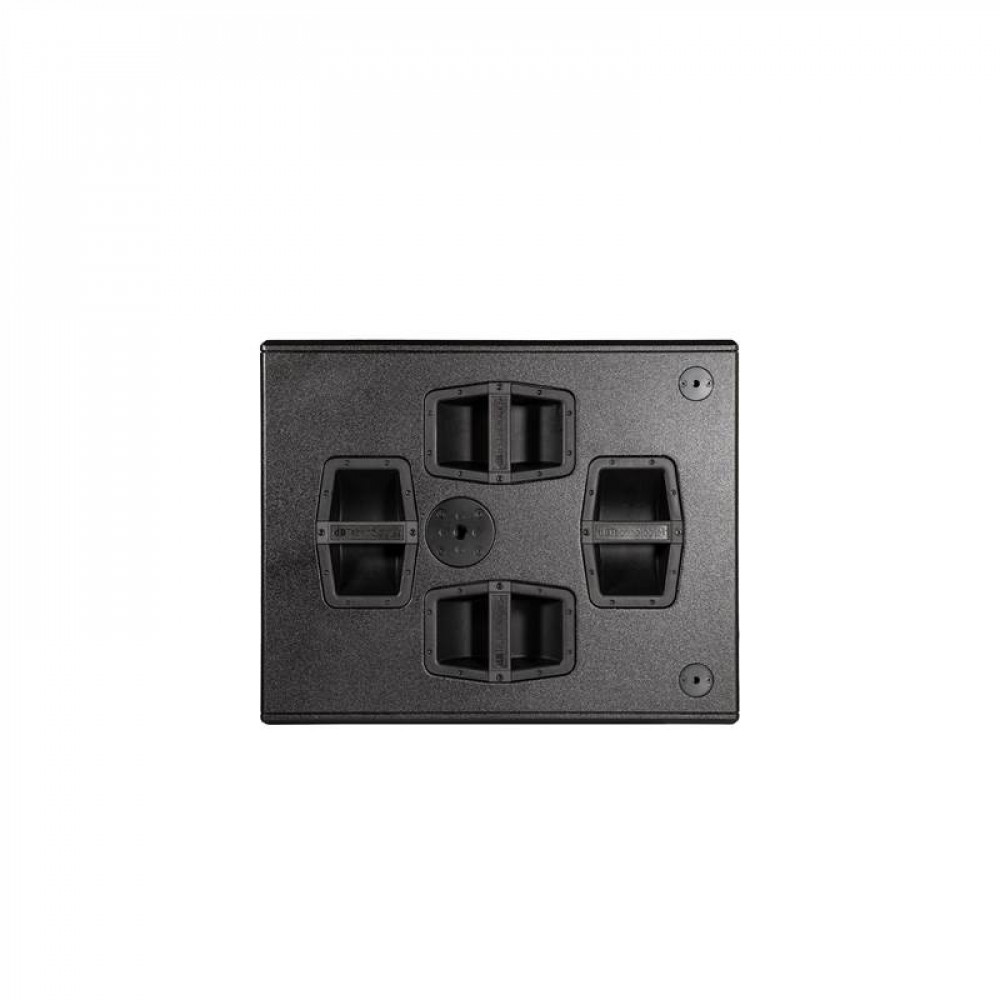

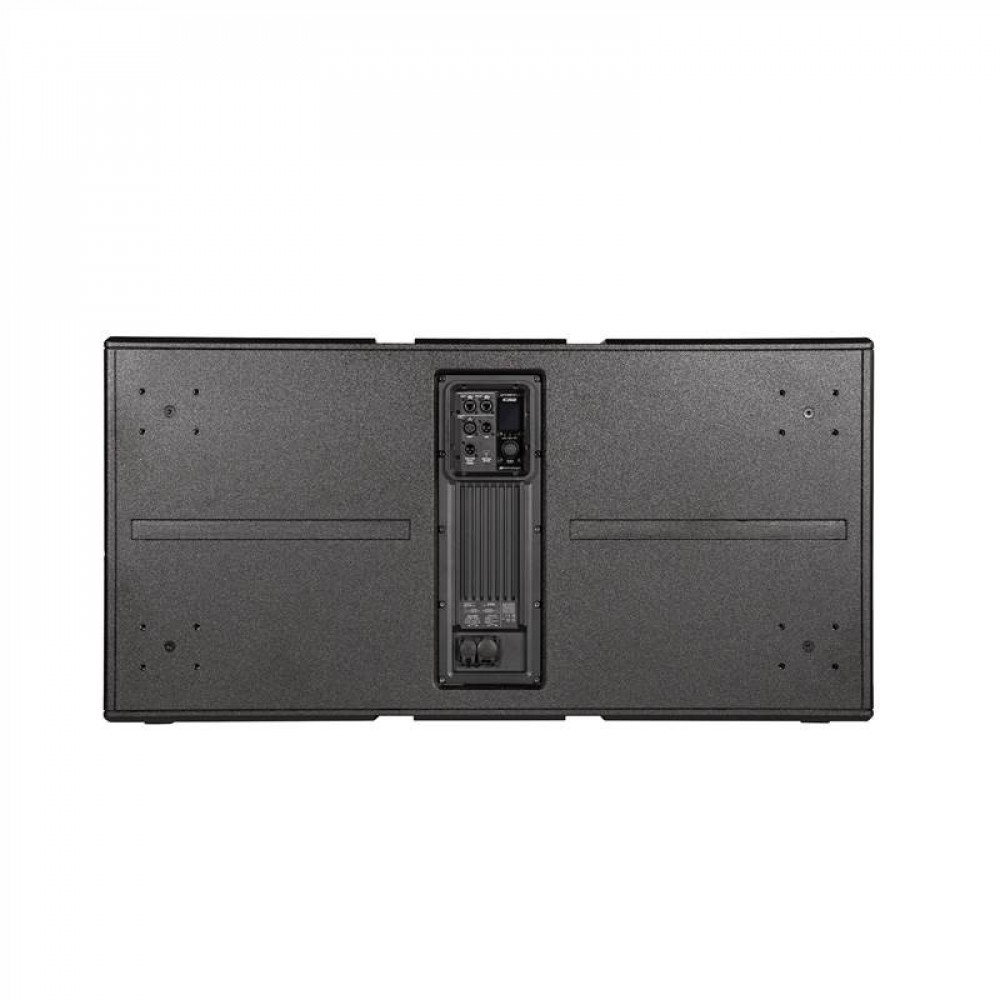

This sturdy cabinet also features four built-in handles and a back panel for easy wheeled transport. A polyurea finish complements the standard features, ensuring durability and endurance.
Technical Data
Speaker Type
Active Subwoofer
Acoustical data
Frequency Response [-10dB]
36Hz to Xover
Max SPL (1 m)
142 dB
LF
2x 18"
LF Voice Coil
4"
Amplifier
Amp Class
Class D with PFC
RMS Power
3200 W
Processor
Controller
32bit processing
AD/DA Converter
24bit 96kHz
Limiter
Peak, Thermal, RMS
Crossover Frequency
60-65-70-75-80-90-100-110-120-400 Hz
Controls
FunctionControl (rotary)
Input
Signal Input/Output
1x XLR In/Out
1x PowerCon True In/Out
2x Ethercon In/Out
Mechanics
Housing
Plywood cabinet with Polyurea finish
Handles
4x side
Pole Mount
2x M20 (1 on top and 1 on side)
Rigging Points
4x Pick Points on top to fix DRK 10/20 rigging frames
Width
1160 mm (45.67 in)
Height
580 mm (22.83 in)
Depth
720 mm (28.35 in)
Weight
80.8 Kg (178 lbs)
Skandas un PA sistēmas | |
Frekvenču diapazons (Hz) | 36 |
Jauda (RMS), W | 3200 |
Korpusa materiāls | Finieris |
Skaļruņa diametrs (collas) | 2x18 |
Skaļums (max SPL), dB | 142 |
Skandu ekstras | Oled ekrāns / DSP / FIR filtrs |
