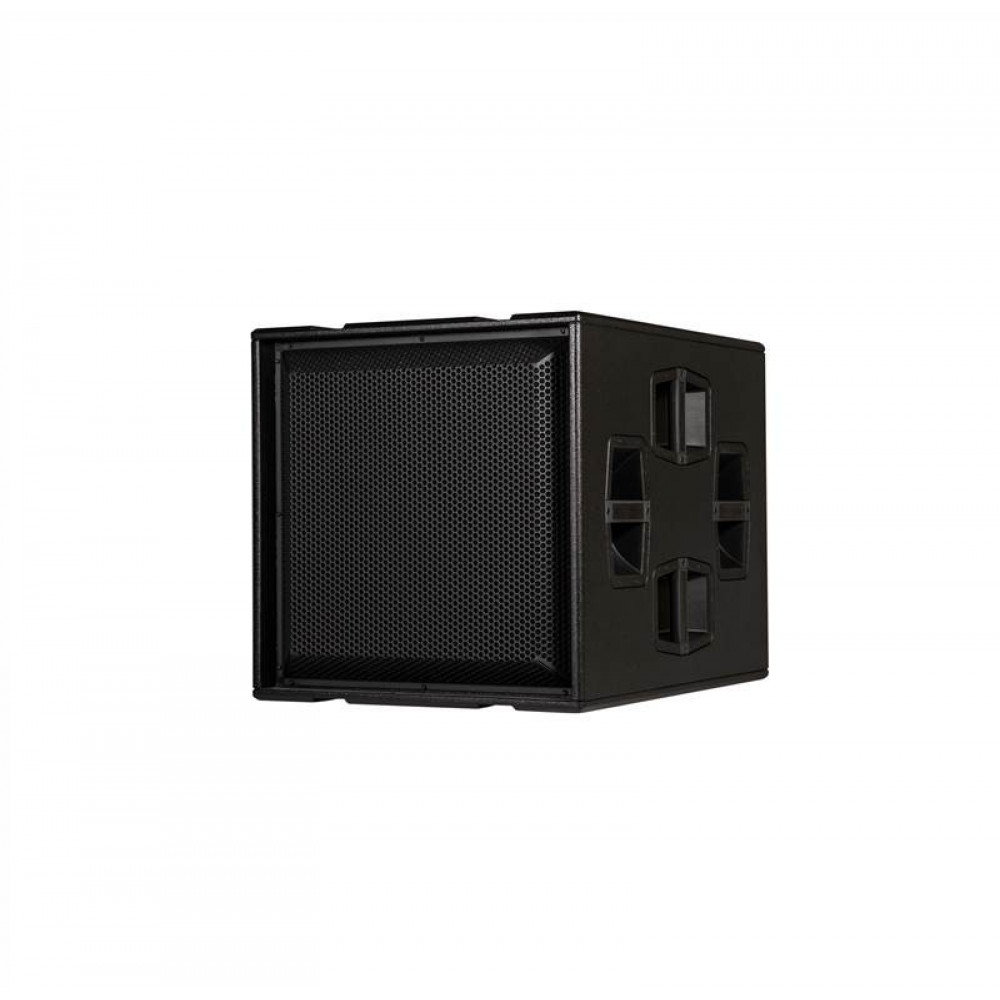

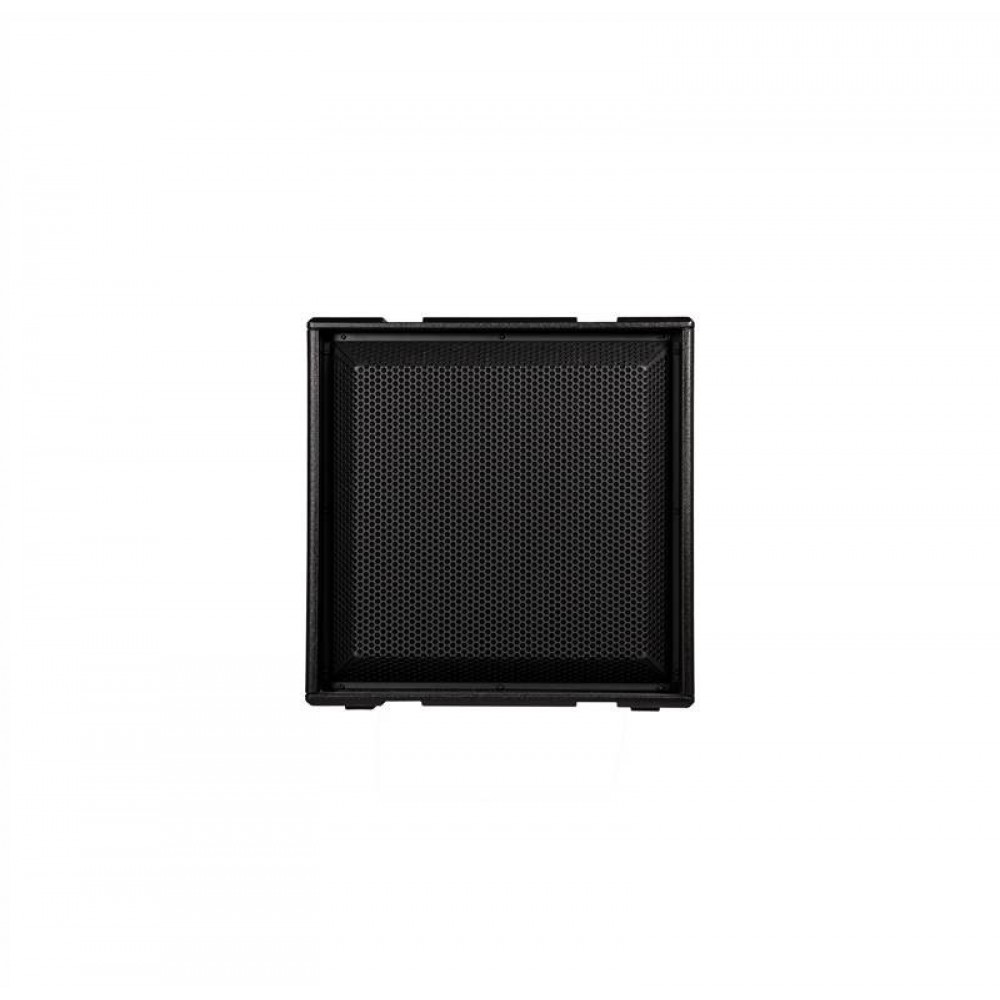

IGS1 features a single 18" woofer placed in a solid bass-reflex cabinet. The 1600 W RMS Class D amplifier ensures maximum reliability and impressive sound pressure.
The system is enabled via RDNet to complete real-time monitoring and control using Aurora Net software (available for Windows and Mac), which supports advanced configurations between IGS1 and IGS2 systems and perfect matching with dBTechnologies full-range systems.
The mechanical design allows perfect scalability between this line's subwoofer models, while the M20 threaded for standard pole makes matching with the top easy and immediate; moreover, two pick points allow using fly-bars dedicated to other dBTechnologies systems.

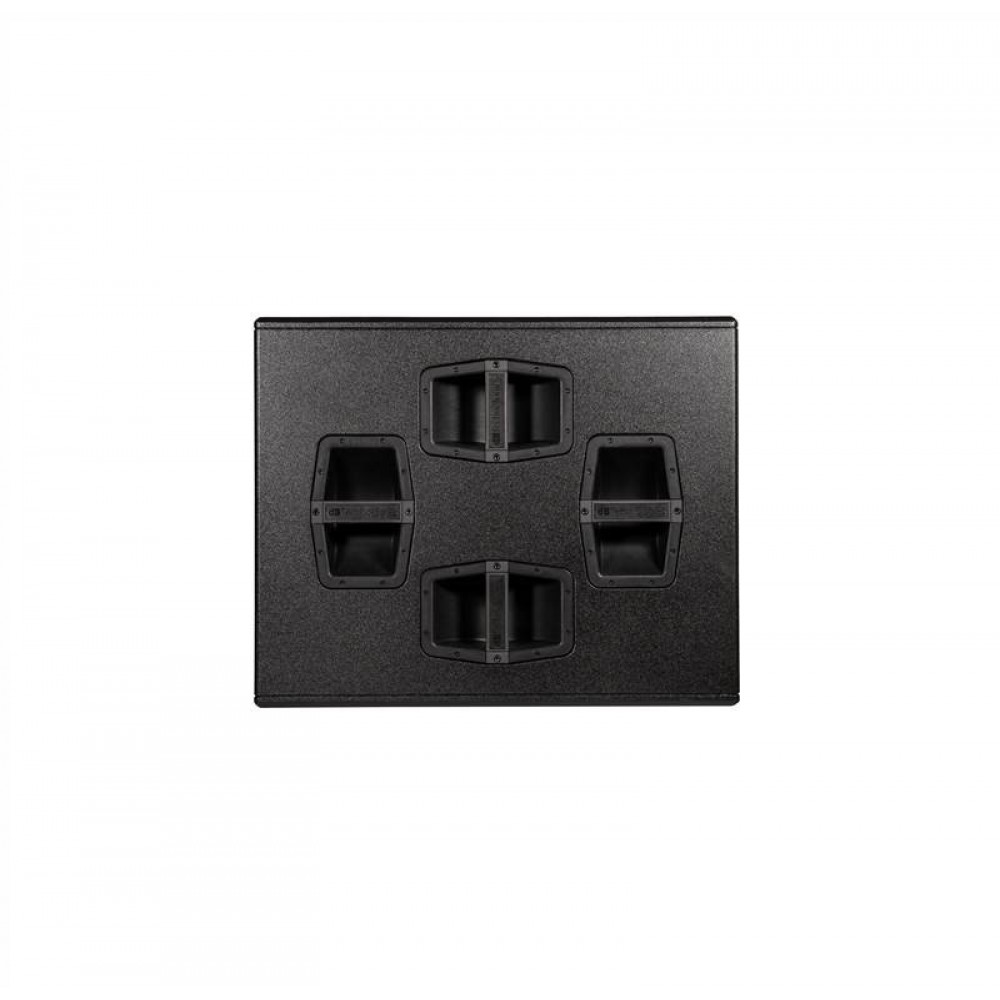

This sturdy cabinet also features four built-in handles and a back panel for easy wheeled transport. A polyurea finish complements the standard features, ensuring durability and endurance.

Technical Data
Speaker Type
Active Subwoofer


Acoustical data
Frequency Response [-10dB]
36Hz to Xover

Max SPL (1 m)
136 dB

LF
18"

LF Voice Coil
4"

Amplifier
Amp Class
Class D with PFC

RMS Power
1600 W

Processor
Controller
32bit processing

AD/DA Converter
24bit 96kHz

Limiter
Peak, Thermal, RMS

Crossover Frequency
60-65-70-75-80-90-100-110-120-400 [Hz]

Controls
FunctionControl (rotary)

Input
Signal Input/Output
1x XLR In/Out

1x PowerCon True In/Out

2x Ethercon In/Out

Mechanics
Housing
Plywood cabinet with Polyurea finish

Handles
4x side

Pole Mount
1x M20 on top

Rigging Points
2xPick Points on top to fix DRK 10/20 rigging frames

Width
578 mm (22.76 in)

Height
580 mm (22.83 in)

Depth
720 mm (28.35 in)

Weight
45.6 Kg (100 lbs)
Skandas un PA sistēmas
Frekvenču diapazons (Hz) 36
Jauda (RMS), W 1600
Korpusa materiāls Finieris
Skaļruņa diametrs (collas) 18
Skaļums (max SPL), dB 136
Skandu ekstras Oled ekrāns / DSP / FIR filtrs
