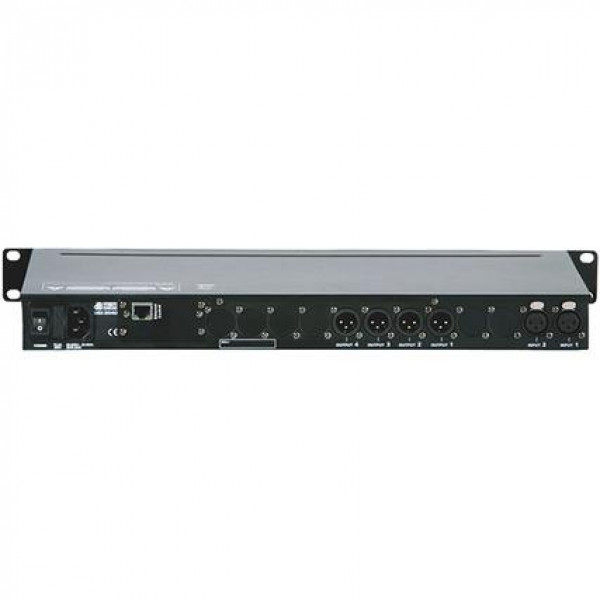

Name: DB TECHNOLOGIES DSX 2040
Brand: dB Technologies
Price: 1099.00 EUR
Availability: OutOfStock

DB TECHNOLOGIES DSX 2040

Pieejamība: SAZINIES PAR PIEEJAMĪBU
Ražotājs: dB Technologies
Modelis: DSX 2040

0 atsauksmes - Uzrakstīt atsauksmi par produktu

1,099.00€

bez PVN: 908.26€

Daudzums

Pievienot grozam

Pievienot vēlmju sarakstam Salīdzināt šo produktu

dB Technologies DSX 2040 Features

2 Inputs and 4 Outputs with flexible routing
40-bit floating point DSP
96kHz Sampling Rate
High Performance 24-bit A/D Converters
1 Hz Frequency Resolution
8 Equalizers (Magnitude or Phase) for each Input and Output
31 Bands GEQ for each Input
Multiple Crossover types with Full Function Limiters
Precise Level, Polarity and Delay
CPU and DSP upgrade via PC
Individual Channel Buttons with Linking capability
2-Line x 16 Character Backlit LCD Display
Full 5-segment LED's on every Input and Output
Storage of up to 30 Preset Setups
Security Lock
USB and RS232 Interface for PC Control and Configuration

dB Technologies DSX 2040 Specifications

Power: 90-240 VAC (50-60Hz)
Input Impedance: >10k Ohms
Output Impedance: 50 Ohms
Inputs and Outputs: Maximum Level: +20dBu
Inputs and Outputs: Type: Electronically balanced
Audio Performance: Frequency Response: +/- 0.1dB (20 to 30kHz)
Audio Performance: Dynamic Range: 115dB typ (unweighted)
Audio Performance: CMMR: > 60dB (50 to 10kHz)
Audio Performance: Crosstalk: < -100dB
Audio Performance: Distortion: 0.002% (1kHz at +4dBu)
Digital Audio Performance: Processor: 40-bit
Digital Audio Performance: Sampling Rate: 96kHz
Digital Audio Analog Converters: High Performance 24-bit
Digital Audio Propagation Delay: 1.5ms
Front Panel Controls: Display: 2 x 16 Character Backlit LCD
Front Panel Controls: Level Meters: 5 segment LED
Front Panel Controls: Buttons: Mute/Edit Controls Menu Controls
Front Panel Controls: Dial Encoder: Embedded Thumb Wheel
Analog Inputs Connectors: 3-pin Female XLR
Analog Outputs Connectors: 3-pin Male XLR
RS-232 Connectors: Female DB-9
USB Connectors: Type B
Connectors Power: Standard IEC Socket
Audio Control Parameters Mic Gain: 0to +45dB in 3dB steps
Audio Control Parameters Gain: -40 to +15dB in 0.25dB steps
Audio Control Parameters Polarity: +/-
Audio Control Parameters Delay: Up to 650ms per I/O
Equalizers (8 per I/O): Type: Parametric, Hi-shelf, Lo-shelf, Phase 1, Phase 2
Equalizers (8 per I/O): Gain: -30 to +15dB in 0.25dB steps
Equalizers (8 per I/O): Bandwidth: 0.02 to 3.61 octaves (Q=0.3 to 72)
31-Band Graphic Equalizers: Gain: -30 to +15dB in 0.25dB steps
Crossover Filter Types: Butterworth, Bessel, Linkwitz Riley
Crossover Slopes: 6 to 48dB/oct
Limiters (1 per Output): Threshold: -20 to +20dBu
Limiters (1 per Output): Attack: 0.3 to 100ms
Limiters (1 per Output): Release: 2 to 32X the attack time
System Parameters: No. of Presets: 30
System Parameters: Program Names: 12 character length
System Parameters: Delay Units: ms, ft, m
System Parameters: Frequency Modes: 36 steps/oct, 1Hz resolution
Dimensions: 19 x 1.75 x 9" / 482.60 x 44.45 x 228.60mm
Weight: 10lbs / 4.54kg
