IMG STAGE LINE MEQ-115/SW

IMG STAGE LINE MEQ-115/SW
IMG STAGE LINE MEQ-115/SW
IMG STAGE LINE MEQ-115/SW
IMG STAGE LINE MEQ-115/SW
MEQ-115/SW
Graphic equalizer
  • 2-channel version, 2 x 15 frequency controls in 2/3 octave steps
  • Switchable control range ±6/±12 dB
  • Peak LED
  • Switchable low cut filter
  • Master volume control
  • Bypass switch and ground lift switch
  • Frequency controls with centre click

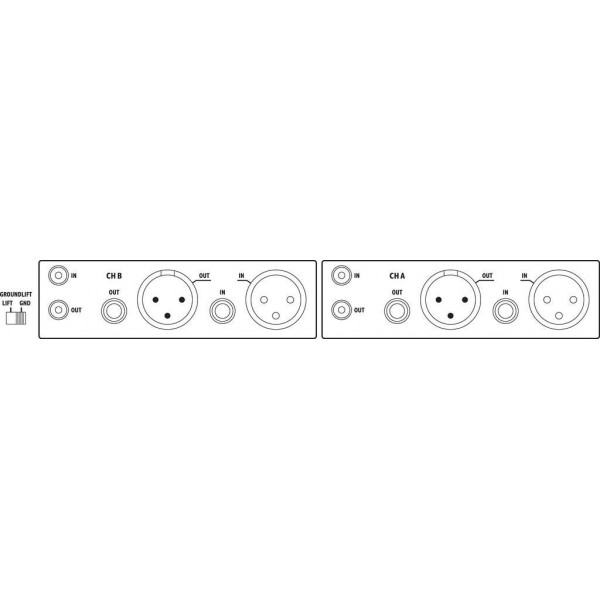

  • Inputs and outputs each via 2 x XLR and 2 x 6.3 mm jack


TECHNICAL SPECIFICATIONS MEQ-115/SW

MEQ-115/SW
Descriptiongraphic equalizer
Frequency range20-20,000 Hz
Control rangeswitchable ±6/±12 dB
Control frequencies2 x 25/40/63/100/160/250/400/630 Hz/

1/1.6/2.5/4/6.3/10/16 kHz

Input signal0.775 V
Input impedance50 kΩ
Output signal0.775 V
Output impedance600 Ω
Low cut20 Hz/-3 dB
S/N ratio66 dB
THD< 0.1%
Admiss. ambient temp.0-40 °C
Power supply˜ 230 V/50 Hz/10 VA
Dimensions482 x 44.5 x 165 mm, 1 RU
Weight2.5 kg
Inputs2 x XLR, 2 x 6.3 mm jack
Outputs2 x XLR, 2 x 6.3 mm jack
Skaņas apstrāde
Ieejas 2
Izeju skaits 2
Joslu skaits 15
Kanālu skaits Mono
