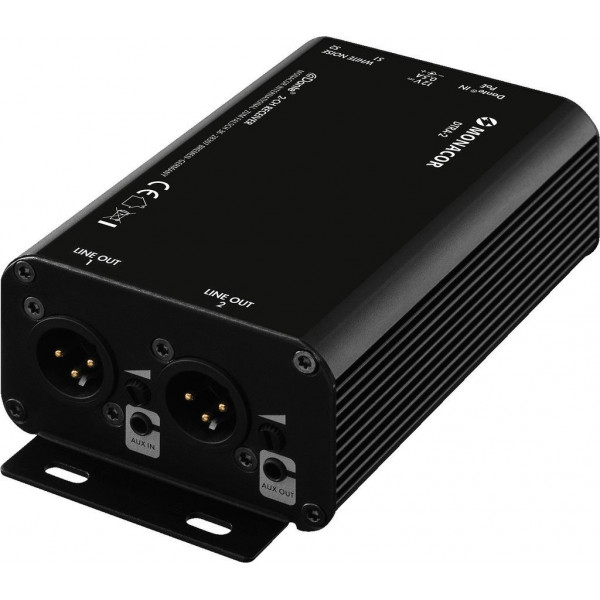

Dante® I/O box, for converting Dante® streams into analogue audio signals.
- 1 x Dante® input (EtherCon/RJ45)
- 1 x aux input (3.5 mm stereo jack)
- 2 x audio output (XLR, bal.)
- 1 x monitor output (3.5 mm stereo jack) with 60 dB crosstalk attenuation to the input channel
- Output adjustable via recessed potentiometer (0-15 dBu)
- Individually switchable noise generator for the outputs
- Encoding/decoding: 16/24/32 bits
- Sampling rates: 44.1/48/88.2/96 kHz
- Frequency range: 20-20,000 Hz
- LED indication for level control, PoE, external power supply and link
- Metal housing
- Power is provided via PoE or optional power supply
- Dimensions: 81 x 45 x 153 mm
- Weight: 400 g
- System requirements Dante®: Windows* 7/8.1/10 or MacOS 10.9.5/10.10.5/10.11
- The brand Dante® as well as the Dante® software which may have been integrated into these products are licenced by Audinate Pty Ltd.
Technical specifications DTRA-2
DTRA-2
- Description: Dante® I/O box
- Colour: black
- Material: metal
- Power supply: PoE or DC 12 V/500 mA
- Admiss. ambient temp.: 0-40 °C
- Dimensions: 81 x 45 x 153 mm
- Weight: 350 g
Connections:
- 1 x EtherCon/RJ45 (Dante® input),
- 1 x 3.5 mm stereo jack (aux input),
- 2 x XLR, bal. (out 1, out 2),
- 1 x 3.5 mm stereo jack (monitor output)
- Other features: noise generator
- Packing unit: 1
