STA-700

• Fan cooling
• 2 level controls
• Ground lift switch
• Speaker switch-on delay
• Protective circuit with LED indication for protection against short circuit, overheating and DC voltage overlay at the outputs
• 1 LED per channel for indicating overload (clip)

TECHNICAL SPECIFICATIONS

• Peak output power 800 W
• Power rating 400 W
• Power rating at 4 Ω 2 x 275 W
• Power rating at 8 Ω 2 x 200 W
• Channels 2
• Inputs 0.85 V/55 kΩ
• Frequency range 10-20,000 Hz
• Integrated limiter yes
• S/N ratio 85 dB
• Crosstalk attenuation > 43 dB
• THD < 0.05%
• Power supply ˜ 230 V/50 Hz/1,100 VA
• Mains voltage 230 V
• Mains frequency 50 Hz
• Power consumption, operation 1,100 VA
• Admiss. ambient temp. 0-40 °C
• Width 482 mm
• Height 96 mm
• Depth 296 mm
• Rack units, RU 2
• Weight 9.4 kg

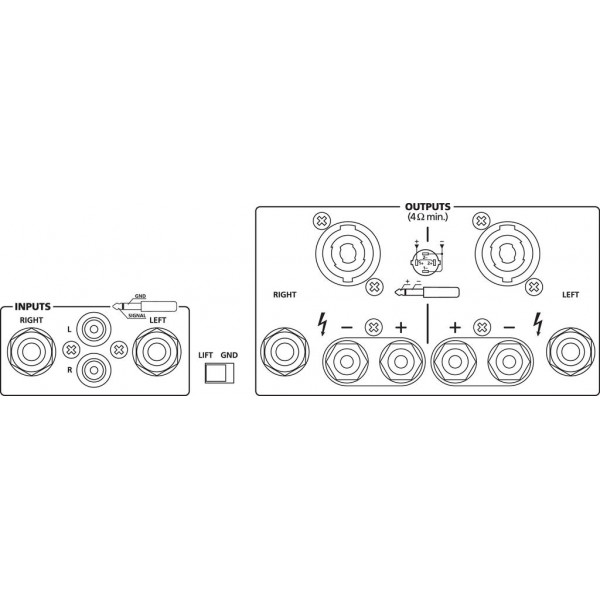

Connections

• 1 x 6.3 mm jack L/R
• 1 x RCA L/R
• 2 x SPEAKER
• 1 x 6.3 mm jack L/R
• 2 x pair of screw terminals

Packing dimensions (W x H x L) 0.37 x 0.14 x 0.51 m

• Gross weight 10.28 kg
• Net weight 9.7 kg
