STA-1000DSP

Series of High-performance class D Amplifiers
Professional equipment consisting of high-quality components, ideally suited for fixed installations and mobile use.

Special features

Class D concept with power amplifier modules from PASCAL
Silent operation due to temperature-controlled fans
Extra wide dynamic range with very low THD

Unbeatable reasons

Excellent acoustic performance
High power reserves
Energy-saving concept due to high efficiency
Impresses by an extra lightweight design

Stereo class D PA amplifier, with DSP technology

Class D concept with power amplifier modules from PASCAL
Excellent acoustic performance
Extra wide dynamic range with very low THD
Excellent pulse response also in the bass range
482 mm (19") rack installation, 2 RS
Silent operation due to temperature-controlled fans which are only activated if the temperature rises above 85 °C
Lightweight design due to compact switch-mode power supply
Energy-efficient concept due to a high efficiency
Protected against short circuit, overtemperature, DC voltage at the output and overload
Power LED
Bridged operation
Wide mains voltage range: ˜ 85-265 V
NEUTRIK POWERCON and SPEAKON connections

DSP specifications

Audio performance
Dynamic range (inputs): 120 dB
Dynamic range (DSP output): 117 dB
Frequency range: 10-40,000 Hz
Latency: 0.62 ms

Interface

Ethernet and USB interface
Real-time control via PC software
Integrated LCD controller
Supplied with PC software

Digital audio performance

Sampling rate: 96 kHz
Mixed mode: 64-bit digital processing

Inputs and outputs

Input sensitivity (setting: 0 dB): 1.2 V
Maximum input voltage: 11 V
Maximum output voltage for subwoofer: 3 V

DSP audio controlling parameters

10 parametric filters for each input and output
Types of filters: bell, shelving, notch or all-pass
Delay for each input: up to 800 ms; delay for each otuput: 5 ms
Filters: Butterworth, Bessel, Linkwitz-Riley with up to 24 dB/oct.
Limiter for each input and output
Selectable phase: 180°
80 presets to be stored

Technical specifications STA-1000DSP

STA-1000DSP

Peak output power: 1,200 W
Power rating: 1,000 W
Power rating at 4 Ω: 2 x 500 W
Power rating at 8 Ω: 2 x 280 W
Power rating with 8 Ω bridged operation: 1 x 1,000 W
Channels: 2
Inputs: 1.2 V/24 kΩ (XLR, bal.)
Frequency range: 20-20,000 Hz
Crossover network: DSP
Integrated limiter: yes
S/N ratio: > 119 dBA
THD: < 0.05%
Mains voltage: ~ 230 V
Mains frequency: 50 Hz
Power consumption, operation: 1,160 VA
Admiss. ambient temp.: 0-40 °C
Width: 482 mm
Height: 89 mm
Depth: 335 mm
Rack spaces, RS: 2
Weight: 5.18 kg

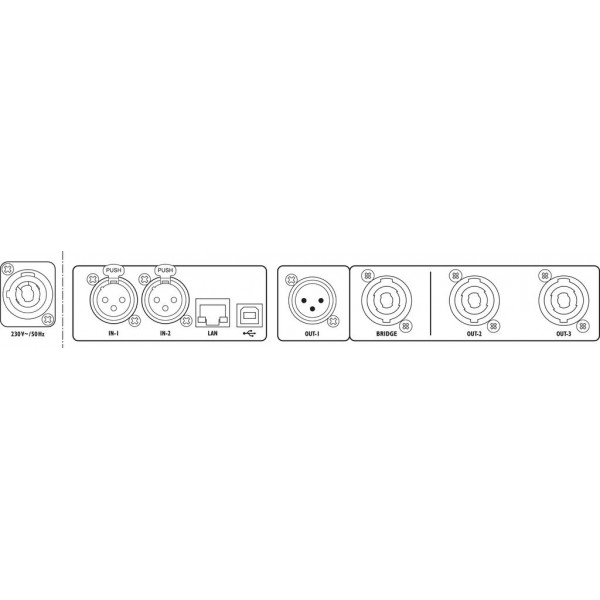

Connections

1 x 3-pole XLR L/R
1 x 3-pole XLR (subwoofer)
1 x NEUTRIK POWERCON
1 x NEUTRIK SPEAKON L/R
1 x NEUTRIK SPEAKON bridged
USB
Ethernet (Cat. 5)

Pastiprinātāji
Ekstras	LAN/ USB
Kanālu skaits	2
Jauda 4 Ω, W	2x 500
Jauda 8 Ω, W	2x 280
Jauda (Bridge 8 Ω), W	1x 1000
Izeju skaits	3
Ieeju skaits	2
