MONACOR TCB-22

MONACOR TCB-22
MONACOR TCB-22
MONACOR TCB-22
MONACOR TCB-22

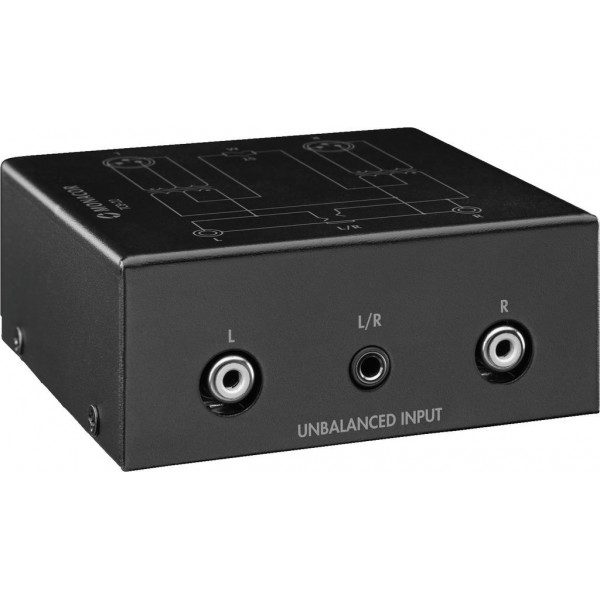

2-channel audio balancing transformer
An unbalanced audio signal is passively converted (without power supply) into a balanced signal by means of an audio transformer (doubled in the device).
In addition, a DIP switch can be used to generate a mono signal (lossless, because it is not coupled via resistors) from two input signals (stereo).
The device can also be operated in the opposite direction, i.e. unbalanced signals can be generated from balanced signals. The only thing required is the XLR/XLR adapter NA-3FF which is available at option.
  • RCA and 3.5 mm stereo inputs
  • 3-pole XLR outputs
  • 2-pole DIP switches for switching as a stereo/mono converter
  • Black metal housing
Description2-channel audio balancing transformer
Frequency range6-25,000 Hz
Input signal15 V max.
Input impedance5.3 kΩ/1 kHz
Output impedance5.4 kΩ/1 kHz
Transmission ratio1:1
Admiss. ambient temp.-20-+50 °C
Dimensions88 x 36 x 83 mm
Weight318 g
Inputs2 x RCA,

1 x 3.5 mm stereo jack, unbal.

Outputs2 x 3-pole XLR, bal.
Skaņas apstrāde
Ieejas 2
Izeju skaits 2
Tips Pasīvs
