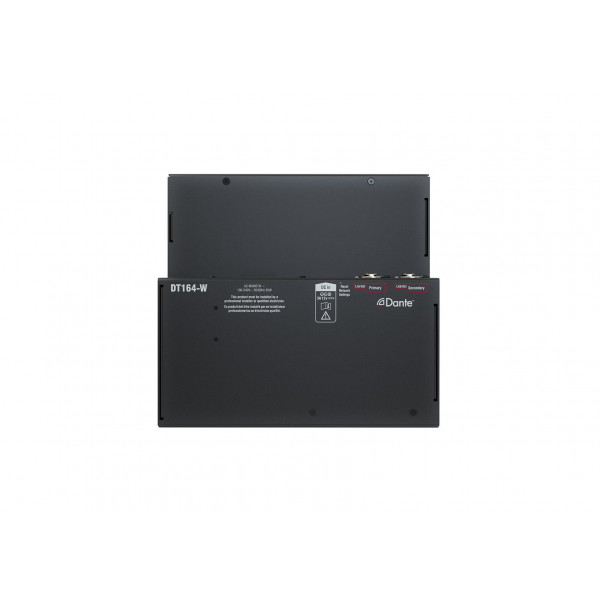

ALLEN & HEATH DT164-W

ALLEN & HEATH DT164-W
ALLEN & HEATH DT164-W
ALLEN & HEATH DT164-W
ALLEN & HEATH DT164-W
ALLEN & HEATH DT164-W
ALLEN & HEATH DT164-W
ALLEN & HEATH DT164-W
ALLEN & HEATH DT164-W
ALLEN & HEATH DT164-W
ALLEN & HEATH DT164-W
ALLEN & HEATH DT164-W
ALLEN & HEATH DT164-W
ALLEN & HEATH DT164-W
ALLEN & HEATH DT164-W
16 XLR Input / 4 XLR Output – 96kHz Dante
The DT164-W provides 16 microphone preamps and 4 line outputs in a versatile wall-mount design for permanent installation. The reversible mounting frame allows for in-wall or on-wall mounting. With custom brackets, the unit can be fitted in a standard NEMA box, or mounted in a floor pocket for stage use. The IEC mains power inlet can be replaced with a gland module and screw terminals for fixed installation, and a DC 12V backup supply is also provided.
DT164-W offers the acclaimed Allen & Heath preamps, complete with 96kHz converters for best-in-class sound quality over Dante, plus Primary and Secondary ports for daisy-chain or redundancy through secure EtherCon connectors.
Up to 16 units can be added to an AHM-64, SQ, Avantis or dLive system when equipped with an SQ Dante or dLive 96kHz Dante card.

Features
  • Dante audio expander, 96kHz / 48kHz
  • Wall mount or dip trap installation
  • 16 mic preamps on XLR with Phantom Power status LEDs
  • 4 XLR Line Outs
  • Primary and Secondary Dante ports with locking EtherCon
  • Redundant or Switched mode
  • Direct preamp control from dLive, Avantis and SQ
  • 3 power supply options: 100-230V AC powered on IEC or screw terminal blocks, as well as 12V DC power
  • DC power can be used as redundant power supply
  • Can fit in a standard NEMA box (custom brackets required)
  • Compatible with ACE Backstage 174SLBK stage pocket system
  • AES67 compatible
  • Dante Domain Manager ready
Mikserpultis
Galvenās izejas 4
Kanālu skaits 16
Mikrofonu ieejas 16
