IT-20
Weatherproof horn speaker
100 V line technique
Weatherproof and IP66 tested
Protected against powerful water jets
Suitable for general indoor and outdoor applications
Robust plastic housing
Mounting bracket and screws made of stainless steel
4-step power selector switch
Technical specifications IT-20
IT-20
- Active/passive: passive
- Transmission method: 100 V
- Total power rating: 15 W
- Power rating (RMS): 15/10/5/2.5 W

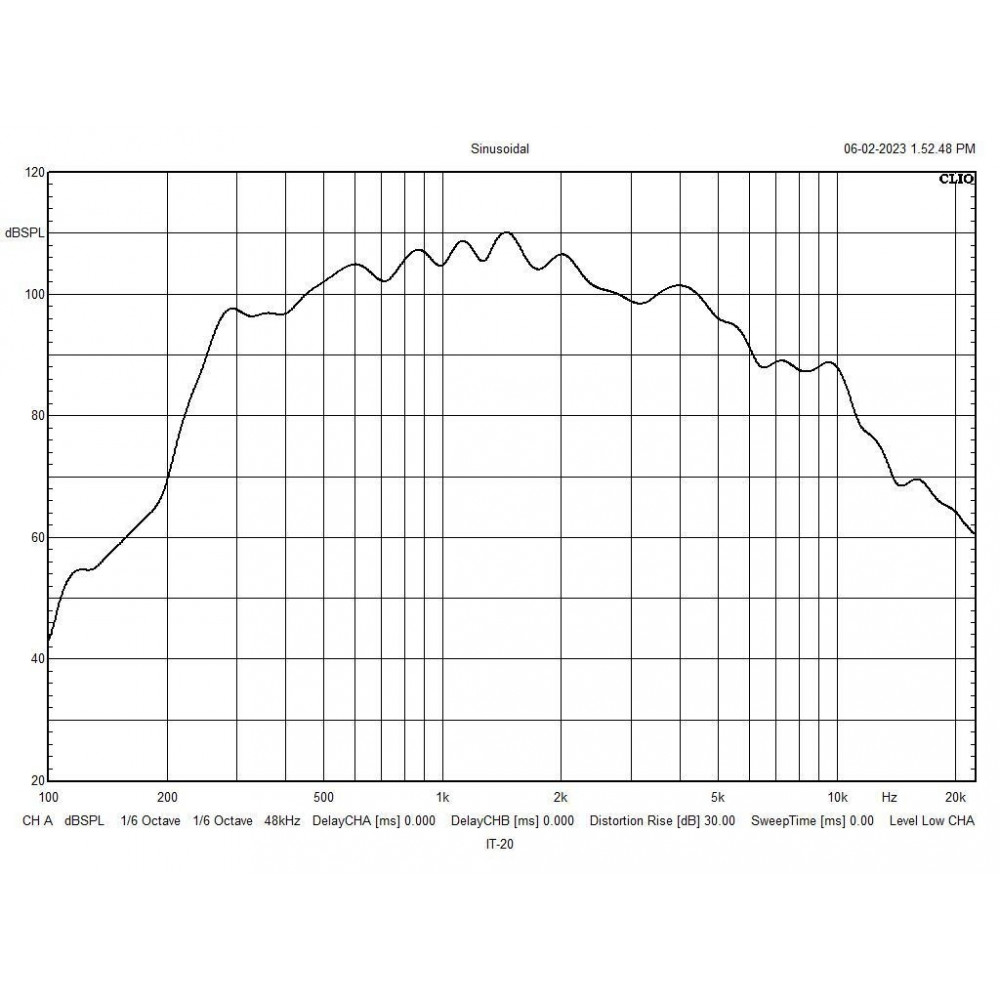

- Frequency range: 275-7,000 Hz
- Number of speakers: 1
- Sensitivity: 106 dB/W/m

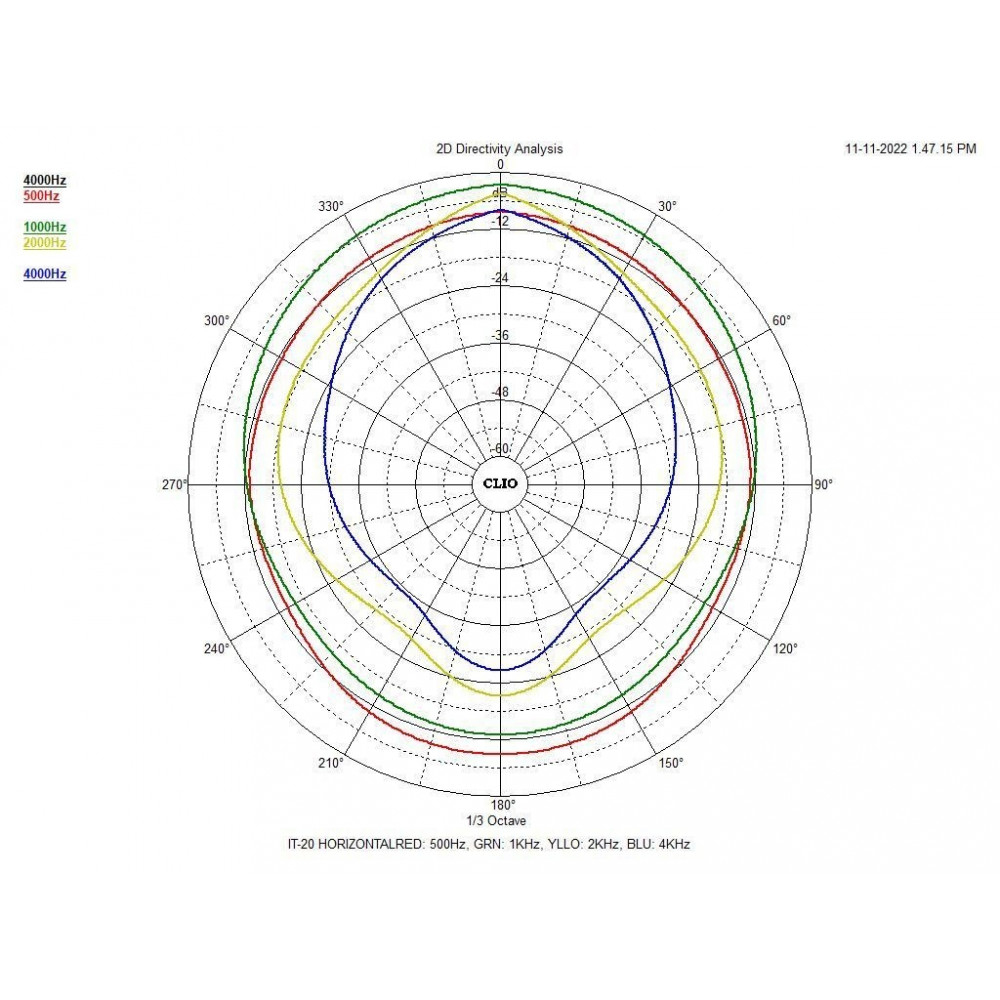

- Beam angle: H: 100°/V: 50°
- Radiation angle, horizontal: 100°
- Radiation angle, vertical: 50°
- Features: power selector switch
- Housing material: plastic
- Colour: grey
- Mounting device: stainless steel mounting bracket
- Protection class: IP66
- Admiss. ambient temp.: -20 °C to +50 °C
- Dimensions: 250 x 145 x 300 mm
- Width: 250 mm
- Height: 145 mm
- Depth: 300 mm
- Weight: 1.88 kg
- Replacement voice coil: IT-230/VC
- Other features: weatherproof
Skandas un PA sistēmas | |
100 V | Jā |
Frekvenču diapazons (Hz) | 275 - 7.000 |
Jauda (RMS), W | 15/10/5/2.5 |
Korpusa materiāls | Plastmasas |
Skaļums (max SPL), dB | 106 |
Skandu ekstras | IP66 |
