MONACOR EDL-11TW

MONACOR EDL-11TW
MONACOR EDL-11TW
MONACOR EDL-11TW
MONACOR EDL-11TW
MONACOR EDL-11TW
MONACOR EDL-11TW

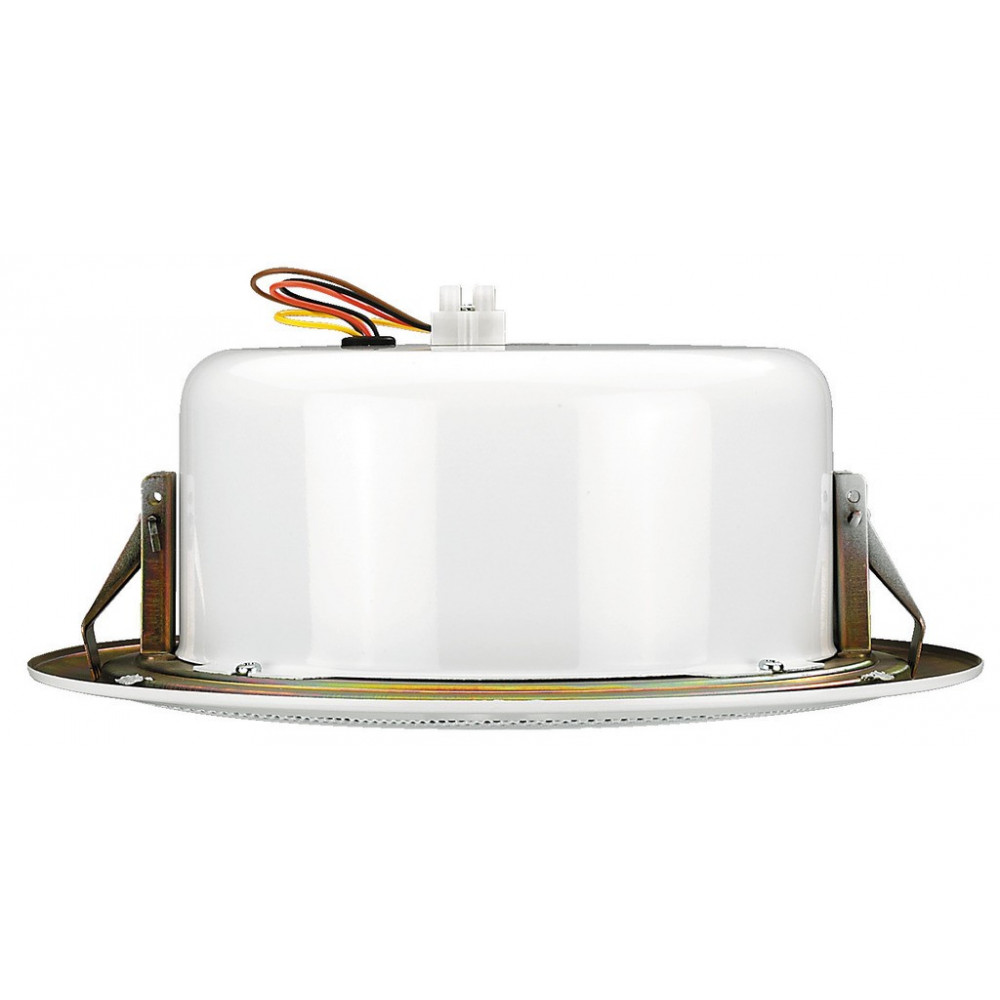

EDL-11TW
PA ceiling speakers
100 V line technique
White or black metal housing
Including fire protection cover for a high safety level
Additional integrated tweeter
Quick-mounting facility
For a ceiling thickness from 3 to 20 mm

Technical specifications EDL-11TW
EDL-11TW
  • Transmission method: 100 V
  • Frequency range: 60-20,000 Hz
  • Power rating (RMS): 10/5/2.5 W
  • Sensitivity: 97 dB/W/m
  • Mounting cutout: Ø 225 mm
  • Mounting depth: 110 mm
  • Dimensions: Ø 264 mm x 120 mm
  • Outside diameter: Ø 264 mm
  • Width: Ø 264 mm
  • Depth: 120 mm
  • Admiss. ambient temp.: 0-40 °C
  • Weight: 1.73 kg
  • Type of speaker: 200
Installation speakers
Mounting Ceiling
Used for Indoor
100 V Yes
Power (RMS), W 10
Speaker size (inches) 6
Color White
IP class -
Housing Metal
Frequency response (Hz) 60 - 20000 Hz
Max SPL, dB 97
Impedance, Ω 8
Directivity -
Extra Fire protection
