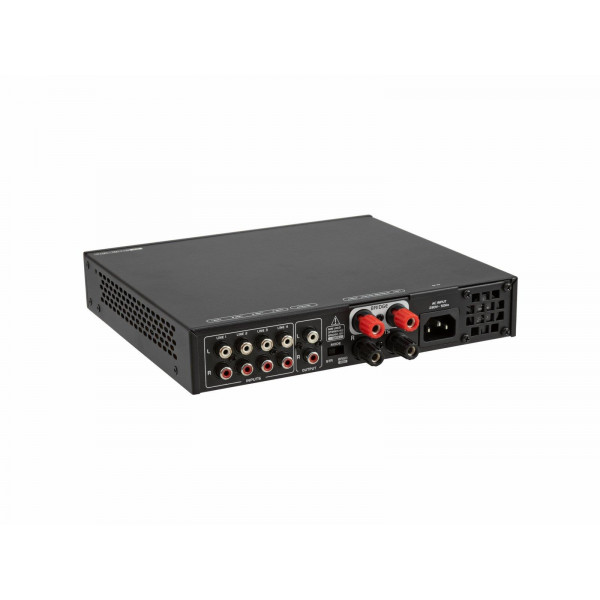

OMNITRONIC DJP-900P MK2

OMNITRONIC DJP-900P MK2
OMNITRONIC DJP-900P MK2
OMNITRONIC DJP-900P MK2
OMNITRONIC DJP-900P MK2
OMNITRONIC DJP-900P MK2
OMNITRONIC DJP-900P MK2
OMNITRONIC DJP-900P MK2
OMNITRONIC DJP-900P MK2
FEATURES

  • Compact stereo mixing amplifier with player + Bluetooth, 2 x 460 W / 4 ohms
  • For quick-access music playback control in restaurants, fitness studios and retail locations
  • Built-in audio player with Bluetooth receiver
  • Extremely low weight and height due to integrated switch mode power supply
  • 2 operating modes can be selected (stereo or bridge/100V)
  • Speaker switch-on delay and auto limiters
  • 1 mono microphone input with volume control on the front panel
  • Audio source selector
  • Extensive protective circuits
  • Robust steel chassis with aluminum front panel
  • The device is cooled by passive convection
  • Desktop console housing; (19") 48.3 cm rack installation (provided) 1 U

Audio player
  • Controlling by Bluetooth
  • Bluetooth: Use a operating range up to 10m

TECHNICAL SPECIFICATIONS
  • Power supply: 230 V AC, 50 Hz
  • Power consumption: 140 W 1/8 power
Output power:
  • 2 x 460 W RMS (4 ohms)
  • 2 x 240 W RMS (8 ohms)
  • Max. 260 W bridged (100 V)
  • Max. 900 W bridged (8 ohms)

Power connection:
  • Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided)
  • Frequency range: 20 - 20,000 Hz
  • S/N ratio: >100 dB
  • THD: <0,05 % at 1 kHz
  • Cooling: Passive convection
  • Impedance: 4 ohms; 8 ohms; 16 ohms; Public address systems 100V
  • Impedance: Input 20 kOhm , bal., Input 10 kOhm , bal.
  • Circuitry: Class D
  • Slew rate: >14 V/µs
  • Damping factor: >300
  • Control elements: Power switch, source selector, EQ controls, level control, mode switch (stereo / bridged/100V)
  • Controls: Softstart; short-circuit; overheat; overload; DC voltage; VHF
  • Equalizer: Master: 1 x 2-band tone control stereo
  • Status LED: Power
  • Connections: Input: 1 x Microphone via 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
  • Input: 4 x line via stereo RCA
  • Input: 1 x line via 3.5 mm jack (stereo) mounting version
  • Output: 1 x speakers via screw terminal
  • Output: 1 x rec. via stereo RCA
  • Input sensitivity: 1 V
  • Material: Metal

  • Housing design: Desktop console housing, (19") 48.3 cm rack installation (provided) 1 U
  • Dimensions: Width: 24,1 cm
  • Depth: 25,6 cm
  • Height: 4,45 cm
  • Weight: 2,54 kg

Audio player
  • Control: Bluetooth
  • Audio player: USB + SD + Bluetooth
  • Format: MP3, WMA; WAV
  • Frequency band: 2.4 GHz
  • Available storage media: USB devices/SD cards max. 32GB (FAT 16/32)
  • Range: 10 m Bluetooth
Amplifiers
100 V Yes
Extras USB/ MP3 player/ SD card slot
Power 4 Ω, W 2x 460
Power 8 Ω, W 2x 240
Power (Bridge 8 Ω), W 900
Outputs 2
Inputs 5

Write a review

Note: HTML is not translated!
Rating
Bad Good
Captcha

Unlimited Tabs or Accordions or open Blocks with any HTML content or the builder interface (supporting custom rows/columns/modules).

Each individual tab module can be assigned to any individual product or to certain groups of products, like entire categories, brands, products with specific options, attributes, price range, etc. You can indicate any criteria via the advanced product assignment mechanism and only those products matching your criteria will display the modules.

Quickview
OMNITRONIC OD-6T B (pair)
OMNITRONIC OD-6T B (pair)
Weatherproof wall speaker pair100 V PA speaker systems with an excellent sound for general applications2-way system with 16.5 cm woofer (6.5") and 2.5..
175.00€
Ex Tax:144.63€
Add to Cart
Add to Wish List Compare this Product
Quickview

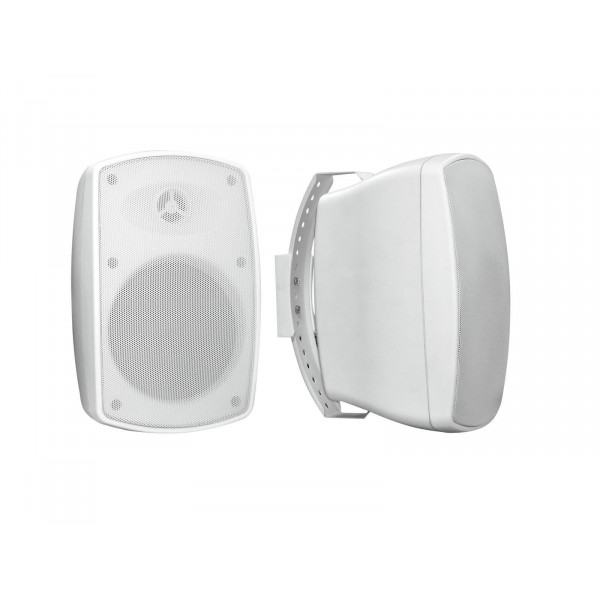

OMNITRONIC OD-6T W (pair)
OMNITRONIC OD-6T W (pair)
Weatherproof wall speaker pairThe 100 V sound reinforcement speakers OD-6T by OMNITRONIC convince by their very good sound image and are optimally sui..
175.00€
Ex Tax:144.63€
Add to Cart
Add to Wish List Compare this Product
Quickview

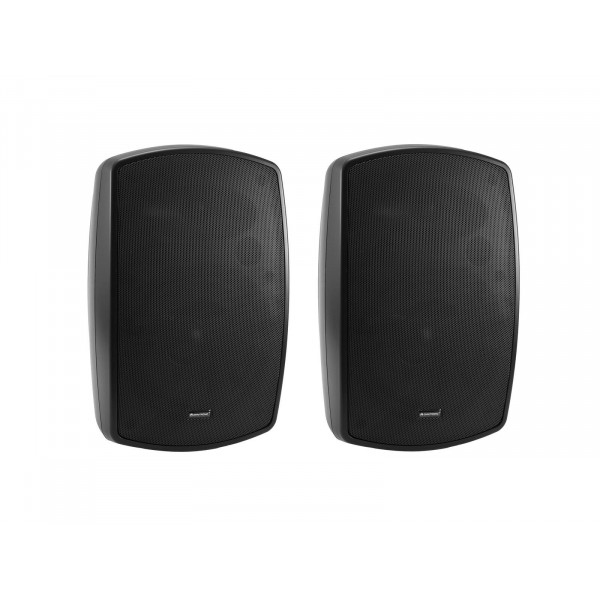

OMNITRONIC OD-8T B (pair)
