PA-5240
5-zone mono PA mixing amplifier
  • 1 x 240 W
  • 5 zones, can be controlled individually
  • Chime, wailing sound, automatic mute, chime and siren can also be activated via external momentary push-button, 2-tone chime or 4-tone chime (selectable)
  • Bass, treble and master controls, level display via LEDs, regulated fan
  • Insertions for various functions are available at option
  • 18 V phantom power for electret microphones
  • Connection for desktop microphone PA-5000PTT
  • Alarm announcement with insertion PA-1120DMT (available at option)
  • Mains operation and 24 V emergency power operation
  • Removable mounting brackets

Technical specifications PA-5240
PA-5240
  • Peak output power: 340 W
  • Power rating: 240 W
  • Power rating at 8 Ω: 1 x 240 W
  • Power rating at 100 V: 240 W
  • Channels: 5
  • Zones: 5
Inputs:
  • 2.5 mV/2 kΩ (mic 1),
  • 2.5 mV/2 kΩ, 0.3 V/200 kΩ (mic/line 2-4),
  • 0.3 V/5 kΩ (line 5-7),
  • 0.775 V/10 kΩ (preamplifier)

  • Frequency range: 55-16,000 Hz
  • Equalizer bass: ± 10 dB/100 Hz
  • Equalizer treble: ± 10 dB/10 kHz
  • S/N ratio:
  • > 70 dB (mic),
  • > 80 dB (line)

  • THD: < 1%
  • Phantom power: 18 V
  • Mains voltage: ~ 230 V
  • Mains frequency: 50 Hz
  • Power consumption, operation: 750 VA
  • Operating voltage (possible alternative): DC 24 V
  • Power supply (possible alternative): DC 20 A
  • Admiss. ambient temp.: 0-40 °C
  • Width: 482 mm
  • Height: 133 mm
  • Depth: 352 mm
  • Rack spaces, RS: 3
  • Weight: 16 kg

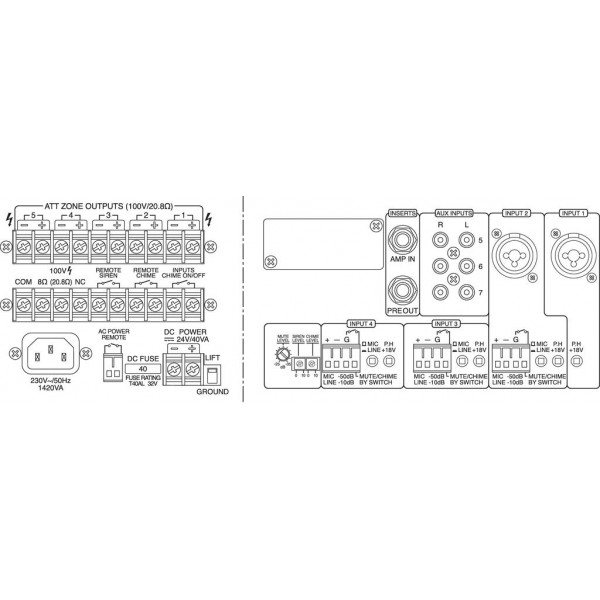

Connections:
  • 2 x 6.3 mm jack (mic),
  • 1 x combo 6.3 mm/XLR (mic/line),
  • 3 x RCA L/R (line),
  • screw terminals (line),
  • 1 x 6.3 mm jack (preamplifier input),
  • screw terminal (push-to-talk mic),
  • screw terminal (zone paging mic),
  • screw termina
Pastiprinātāji
Jauda (max), W 340
Jauda, W 240
Kanālu skaits 5
Zonu skaits 5
Izeju skaits 5
Ieeju skaits 5
