RELOOP TURN 5 Melns

Name: RELOOP TURN 5 Melns
Brand: Reloop
Price: 799.00 EUR
Availability: OutOfStock

RELOOP TURN 5 Melns

Pieejamība: SAZINIES PAR PIEEJAMĪBU
Ražotājs: Reloop
Modelis: TURN5BB

0 atsauksmes - Uzrakstīt atsauksmi par produktu

799.00€

bez PVN: 660.33€

Daudzums

Pievienot grozam

Buy Now Ask a question

Pievienot vēlmju sarakstam Salīdzināt šo produktu

Direct Drive HiFi Turntable System

With TURN 5 Reloop HiFi is launching a quartz-controlled, direct-drive turntable that meets the highest sound requirements. Using our expertise we have developed a new HiFi turntable, which with its technical sophistication is the best in its class.

Powerful DC motor & low-resonance die-cast platter

The brushless, direct-drive DC motor ensures a powerful drive at a very consistent rotation and the TURN 5 has been produced using die-cast precision manufacturing techniques. A dampening rubber base on the turntable system eliminates any unwanted resonance and the accompanying 5 mm rubber coating also protects against vibrations so that nothing stands in the way of the exceptional sound reproduction.

Static balanced S-tone arm & Hi-tech Ortofon cartridge system

The TURN 5 uses a statically balanced S-shape tone arm. This is supplied, along with the hydraulic lift and an anti-skating setting, with a convenient tone arm height adjustment with locking VTA. This guarantees optimum performance of the cartridge and an accurate reproduction of the recording medium.

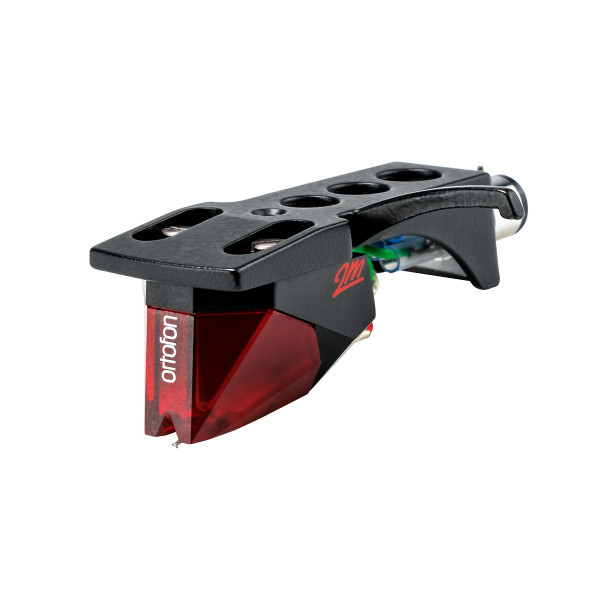

The supplied Ortofon 2M Red cartridge is already pre-mounted on a headshell and stands out thanks to its elliptical cut with phenomenal sound quality.

High-quality control elements & connections

The three motor speeds can be selected with convenient controls on the top to 33 1/3, 45 or 78 rpm. This means the TURN 5 can also play back old shellac records with a corresponding mono-system (not included). Next to this is the large start/stop knob. The universal locking mechanism (SME) on the tonearm allows for a quick and easy headshell exchange. Also, with the supplied counterweight a whole range of cartridges can be used as this also supports heavier pick-ups.

On the rear panel of the TURN 5 is a gold-plated phono output pair (RCA) with a separate earth connection to prevent any potential interference. The terminal for all cable connections has been recessed to protect them as much as possible. For a simple exchange, the power cable and the RCA cable can be removed.

Elegant design in a particularly heavy-duty construction

The housing is built on a heavy-duty metal construction with shock-absorbing feet in order to isolate unwanted vibrations as much as possible and reduce ambient noise. The combination of several materials provides additional stiffness to the housing.

With its deep black piano finish, visually the TURN 5 is elegant and timeless. The gold-plated turntable hovers harmoniously above the cover plate and focuses the view on the important thing – the record.

FEATURES

Quartz-Controlled HiFi turntable with high torque

Brushless Direct Drive DC Motor

Precision machined Die-Cast Aluminium Turntable Platter for a perfectly balanced rotation

Deadening Rubber covering rear platter surface & special 5mm rubber mat for optimized resonance control and damping

Static-balanced S shaped tonearm with VTA adjustment

Adjustable anti-skating dial for improved cartridge tracking

Pre-installed Ortofon 2M Red cartridge

Integrated motor control selector for conveniently selecting three different speeds (33, 45 and 78 RPM)

Universal Headshell Connector provides added flexibility

High Quality Phono outputs (with separate grounding connection)

Gold-plated, corrosion resistant audio outputs (power and RCA cables detachable)

Sunk-in terminal cavity for protected connection

Especially heavy metal construction, rigid cabinet design and Shock-resistant feet for effective decoupling

Supplied counterweight supports a wide variety of cartridges

Elegant design with deep black Piano Finish and a fully gold anodised Platter

Included Accessories: Turntable Platter, Dust Cover, 2x Dustcover hinges, Balance Counter Weight, PHONO RCA Cable with earth lead, AC power supply cord, Rubber Mat, Instruction Manual, Ortofon 2M Red cartridge & headshell

TECHNICAL DATA

Turntable Section:

Type: Direct Drive Manual Turntable System

Drive: Quartz driven upper-torque direct drive

Motor: 16 pole, 3 phase, brushless DC motor

Turntable Speeds: 3 speeds, fully manual (33 1/3, 45, 78 rpm)

Starting Torque: 4500 g/cm

Start-up time / rpm change: less than 0.2 sec.

Wow and flutter: 0.01% WRMS

S/N Ratio: More than 55 dB (DIN-B)

Brake system: electronic brake

Record weight: recommended 800g

Turntable Platter:

Material: aluminium die-cast

Diameter: 332 mm

Weight: About 1.8 kg (including rubber mat)

Tonearm Section:

Type: Universal Static Balanced S-Shaped

Effective Length: 230 mm

Overhang: 15 mm

Tracking Error Angle: Less than 3 degree

Offset Angle: 22°

Stylus Pressure: 0 - 4 g

Adjustable Tonearm Base (VTA): 0-6 mm

Applicable Cartridge Weight: 3.5~8.5 g (including headshell is 13~18 g)

Anti-Skating Range: 0 – 3 g

Effective tonearm mass: 20 g (incl. headshell)

Terminals:

1x PHONO Out (gold-plated), 1x GND Earth Terminal

General:

Power supply: AC 115/230 V, 60/50 Hz (EU/US), AC 100 V, 50/60 Hz (JP)

Power Consumption: 9 W

Dimensions: 458 (W) x 368.3 (D) x 162.4 (H) mm

Weight: approx. 12.8 kg

Included Accessories:

Turntable Platter, Dust Cover, 2x Dustcover hinges, Balance Counter Weight, PHONO RCA Cable with earth lead, power cord, Rubber Mat, Instruction Manual, Ortofon 2M Red cartridge & headshell

Plašu atskaņotāji
Ekstras	Vāks
Funkcijas	--
Izejas	Phono
Piedziņa	Tiešā

Unlimited Tabs or Accordions or open Blocks with any HTML content or the builder interface (supporting custom rows/columns/modules).

Each individual tab module can be assigned to any individual product or to certain groups of products, like entire categories, brands, products with specific options, attributes, price range, etc. You can indicate any criteria via the advanced product assignment mechanism and only those products matching your criteria will display the modules.

Tagi: Hi-Fi plašu atskaņotāji
