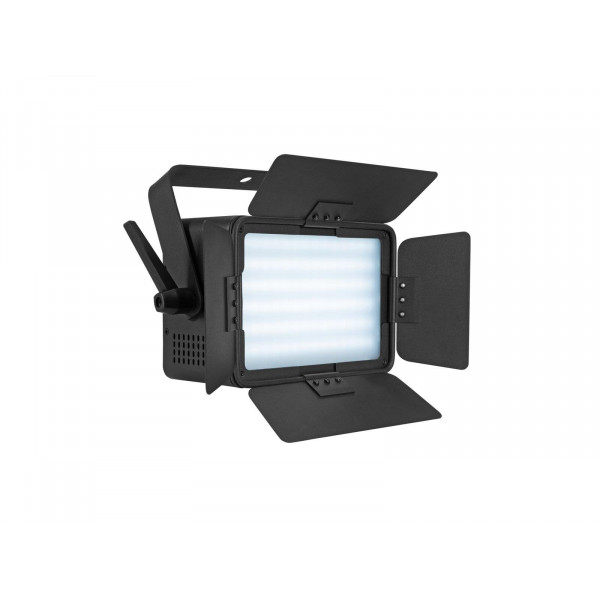

EUROLITE PLL-168 CW/WW Panel
- Pieejamība: IR VEIKALĀ
- Ražotājs: Eurolite
- Modelis: 40001850
299.00€
bez PVN: 247.11€
Sazinies ar mums
DMX-controlled surface light with 168 dual white LEDs, QuickDMX port and barn doors
- 84 powerful LEDs 0,5 W SMD 2835 warm white (WW)
- 84 powerful LEDs 0,5 W SMD 2835 cold white (CW)
- Variable color temperature 2800 K - 6500 K
- 4 barn doors to avoid blinding the audience and for protection during transport
- Energy-saving, durable and environmentally friendly
- Pulse-width modulation variable
- Integrated show programs
- The device is cooled by passive convection cooling
- Control via Quick select potentiometer for brightness and color temperature; stand-alone; DMX; Master/slave function; Sound to light via Microphone; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional)
- Flicker-free
- With a beam angle of 120°
- Good color rendering index (CRI)
- With Mounting bracket
- 4 digit 7-segment LED display
- Slim, rugged metal housing
- For application areas such as: Video and photography; Stage
- Preprogrammed in Light Captain
- Available in various colors
- Mains input and output for power linking up to 8 units
Package contents
- 1 x spotlight, 1 x user manual, 1 x power cord
Power supply: | 100-240 V AC, 50/60 Hz |
Power consumption: | 40 W |
IP classification: | IP20 |
Protection class: | Protection class I |
Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
Power output: | 1 x IEC connector (F) mounting version |
Fuse: | T 1 A Fuse replaceable |
Lamp type: | LED lamp |
LED: | 84 x 0,5 W SMD 2835 warm white (WW) 84 x 0,5 W SMD 2835 cold white (CW) |
Color temperature: | 2800K - 6500K adjustable |
Flash rate: | 0 - 20 Hz |
DMX channels: | 2; 4; 6 |
DMX input: | 3-pin XLR (M) mounting version |
DMX output: | 3-pin XLR (F) mounting version |
Cooling: | Passive convection cooling |
Control: | Quick select potentiometer for brightness and color temperature; stand-alone; DMX; Master/slave function; Sound to light via Microphone; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional) |
Preprogrammed in: | Light Captain |
Beam angle: | 120° |
Beam angle (1/2 peak): | 120° |
Color rendering index (CRI): | 80 Ra |
Illuminance in Lux (lx): | Cold white (CW) 1m: 539 lx, 3m: 73 lx, 6m: 21 lx Warm white (WW) 1m: 529 lx, 3m: 72 lx, 6m: 21 lx All 1m: 1063 lx, 3m: 143 lx, 6m: 43 lx |
Housing color: | Black |
Attachment system: | Mounting bracket |
Display type: | 4 digit 7-segment LED display |
Dimensions: | Width: 28,1 cm Depth: 11,0 cm Height: 17,3 cm |
Weight: | 1,84 kg |
Studijas gaismas | |
Jauda, w | 84 |
Krāsas temperatūra | 2800k - 6500k |
CRI | 80 |
Gaismas leņķis | 120 |
Baterijas pieslēgums | -- |
Ekstras | Barn doors, DMX |
