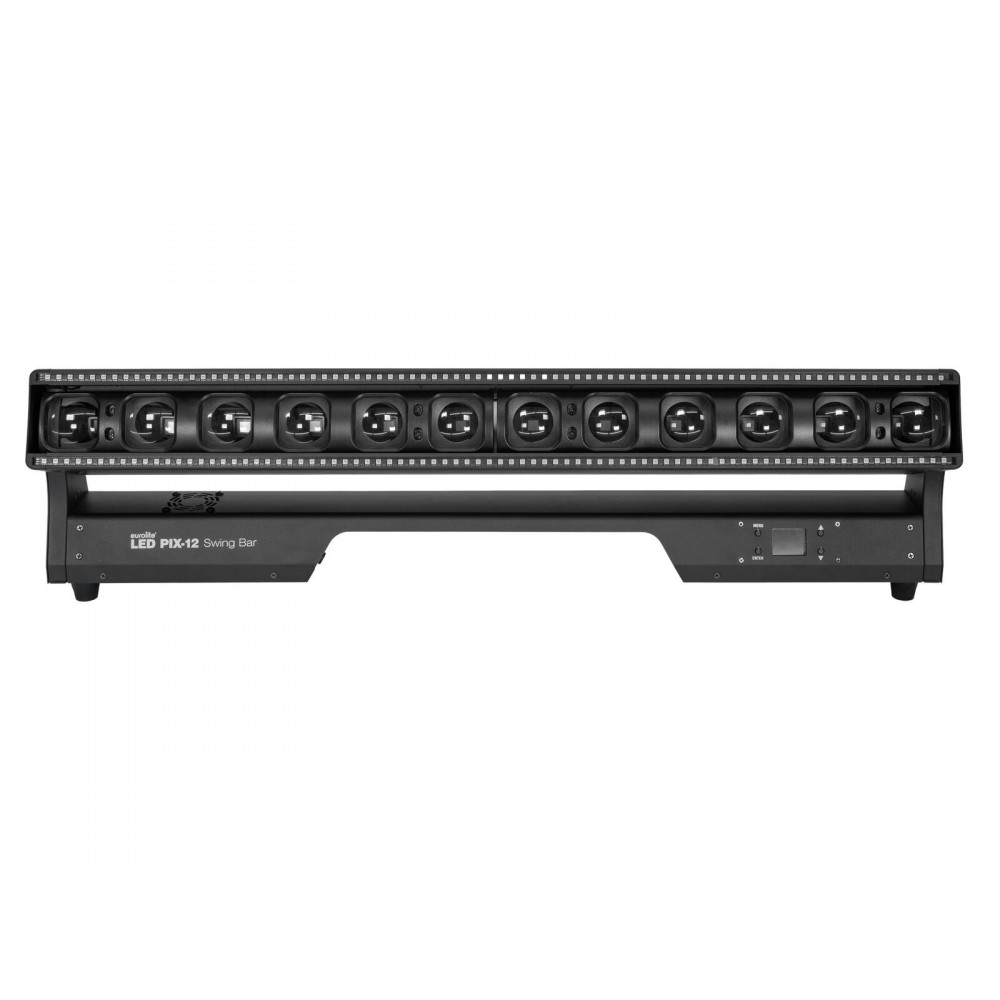

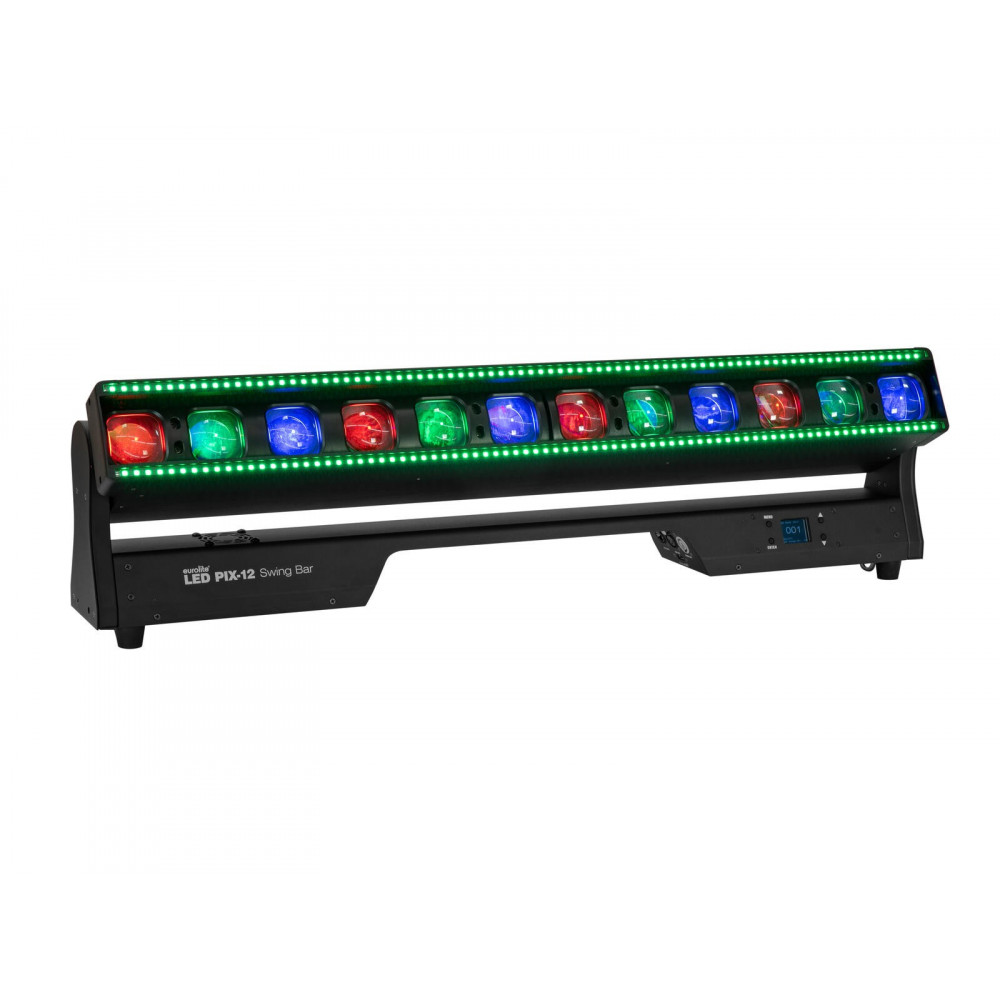

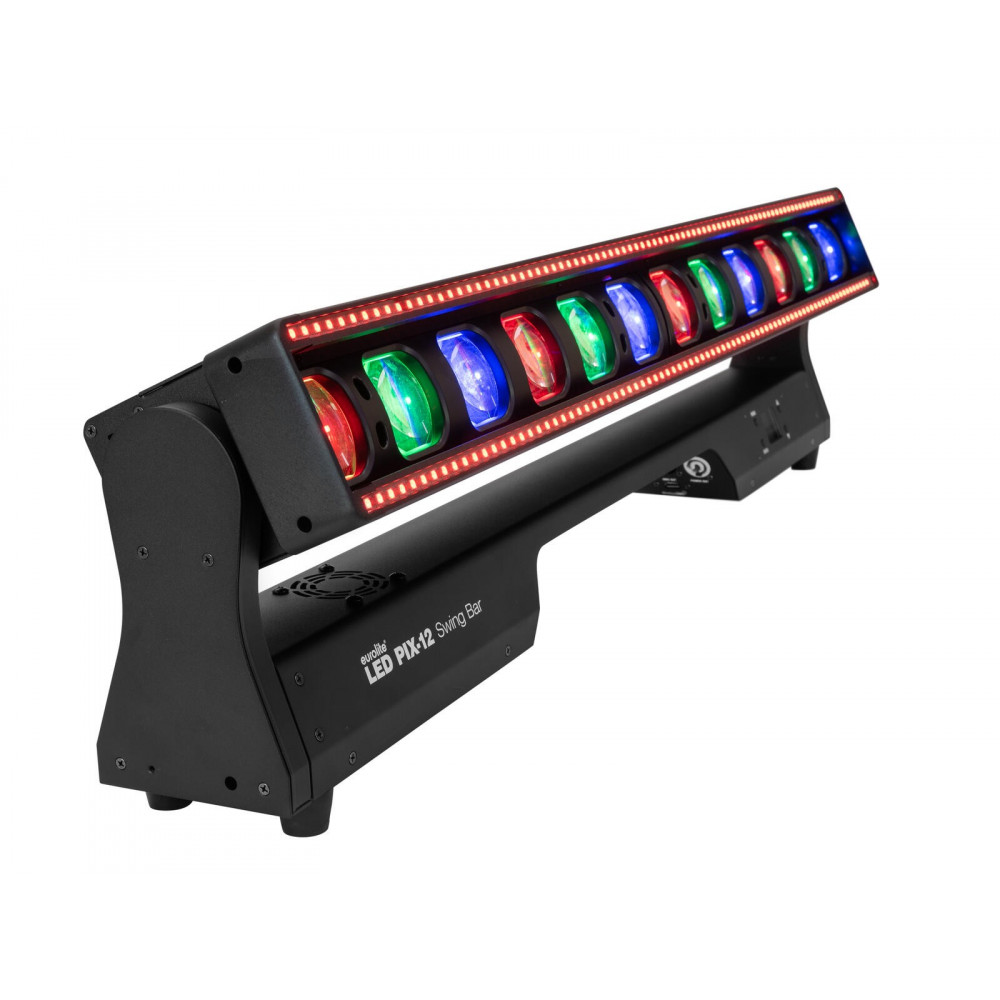

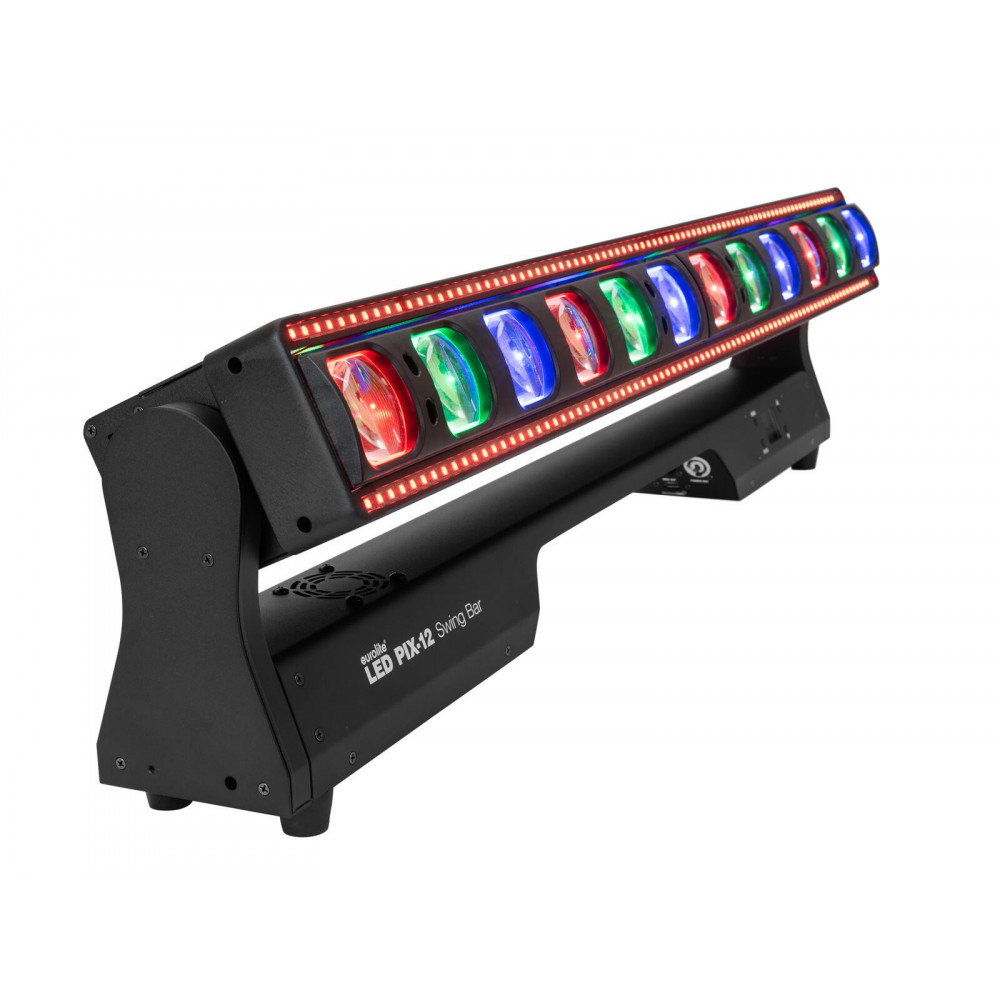

Motorized tiltable LED light effect bar with 12 high-performance LEDs, two zoom ranges from 2° to 28° and 164 effect LEDs

  • 12 powerful LEDs 40 W 4in1 QCL RGBW (homogenous color mix)
    LEDs controlled separately
  • 164 powerful LEDs 0,2 W SMD 5050 3in1 TCL RGB (homogenous color mix)
  • Positioning within 180° TILT
  • Exact 16 bit resolution at Dimmer
  • Zoom motor driven
  • Color blend stepless; background color adjustable; program speed adjustable; running light adjustable; dimmer curves with adjustable response; Dimmer speed (step response) adjustable; pulse-width modulation variable
  • Beam effect; strobe effect; uplight effect
  • 6 integrated show programs
  • The device is cooled by cooling fan at the base
  • Control via stand-alone; master/slave function; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); Art-Net; RDM
  • Preprogrammed in Light Captain
  • Flicker-free
  • DMX fail mode (hold; blackout; auto)
  • With a beam angle of 2° - 28°
  • With a beam angle of 120°
  • With omega bracket
  • Monochrome LCD display
  • 4 x rubber feet
  • Mains input and output for power linking up to 8 units
  • For application areas such as: Clubs/dancing school; stage; concerts/FoH's; rental

Power supply: 100-240 V AC, 50/60 Hz

Power consumption: 310 W

IP classification: IP20

Protection class: Protection class I

Power connection: Mains input via P-Con (blue), mounting version power supply cord with safety plug

Cable construction: 3 x 1,5 mm² H05VV-F

Cable length: 1,4 m

Power output: P-Con (gray), mounting version

Device fuse: 5 x 20 mm, T 3 A fuse replaceable

Lamp type: LED lamp

LED type: 12 x 40 W 4in1 QCL RGBW (homogenous color mix)

164 x 0,2 W SMD 5050 3in1 TCL RGB (homogenous color mix)

Max. TILT movement: 180° exact positioning (16 bit resolution) auto position correction (feedback)

Flash rate: 1 - 20 Hz

Equipment: Zoom motor driven

DMX channels: 28; 34; 67

DMX input: 3-pin XLR (M) mounting version

DMX output: 3-pin XLR (F) mounting version

Network connection: Protocol: Art-Net 3 via 2x RJ-45 E-Con (F) mounting version

Cooling: 1 x cooling fan at the base

Control: Stand-alone; master/slave function; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); Art-Net; RDM

Preprogrammed in: Light Captain

Projection: Flicker-free

DMX fail mode: Hold; blackout; auto

Beam angle: 120°

2° - 28°

Beam angle (1/2 peak): Ambient light 120° multicolor

Beam angle (1/2 peak): Beam 2 - 20°

Beam angle (1/10 peak): Beam 2 - 28°

Illuminance in Lux (lx): Narrow red (R) 1m: 8706 lx, 3m: 1789 lx, 6m: 903 lx

Narrow green (G) 1m: 12942 lx, 3m: 2762 lx, 6m: 1509 lx

Narrow blue (B) 1m: 1924 lx, 3m: 470 lx, 6m: 257 lx

Narrow cold white (CW) 1m: 13809 lx, 3m: 2917 lx, 6m: 1573 lx

Narrow all 1m: 35732 lx, 3m: 7693 lx, 6m: 4097 lx

Wide red (R) 1m: 1884 lx, 3m: 513 lx, 6m: 148 lx

Wide green (G) 1m: 3154 lx, 3m: 880 lx, 6m: 256 lx

Wide blue (B) 1m: 538 lx, 3m: 152 lx, 6m: 44 lx

Wide cold white (CW) 1m: 3275 lx, 3m: 885 lx, 6m: 257 lx

Wide all 1m: 8576 lx, 3m: 2363 lx, 6m: 682 lx

Housing color: Black

Attachment system: 2x omega bracket

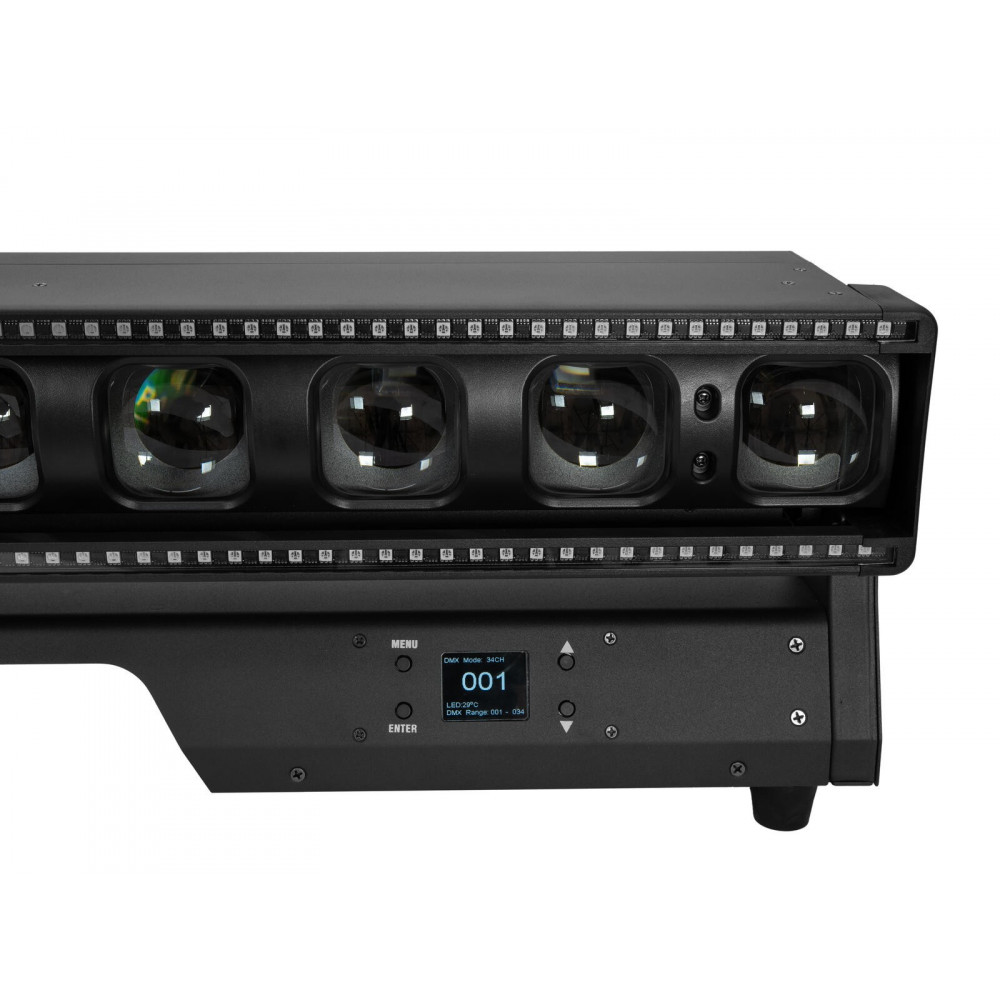

Display type: Monochrome LCD display

USB port: Type A

Transport aid: 4 x rubber feet

Material: Metal, painted

Dimensions: Width: 100 cm

Depth: 12 cm

Height: 28,5 cm

Weight: 15,70 kg

Legal specifications

Special product: Not designed for household room illumination

Intended use: Show effect lighting

  • Application possibility: Standing; suspended
Pikseļi / Strobe
Pikseļ jauda, W 480W
Strobe jauda, W -
LED tips RGBW
Pikseļu zonas 12
Strobe zonas -
IP klase IP20
