- Pieejamība: SAZINIES PAR PIEEJAMĪBU
- Ražotājs: Eurolite
- Modelis: 52200943
Sazinies ar mums

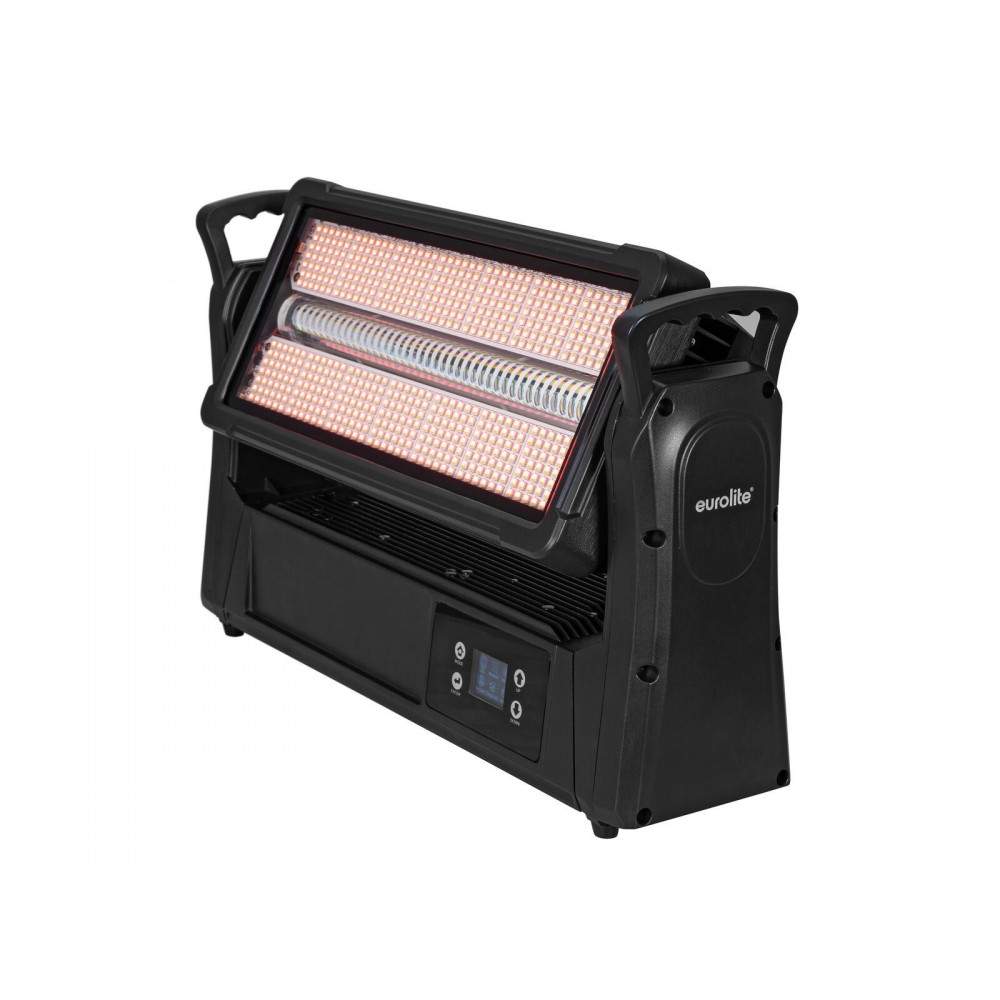

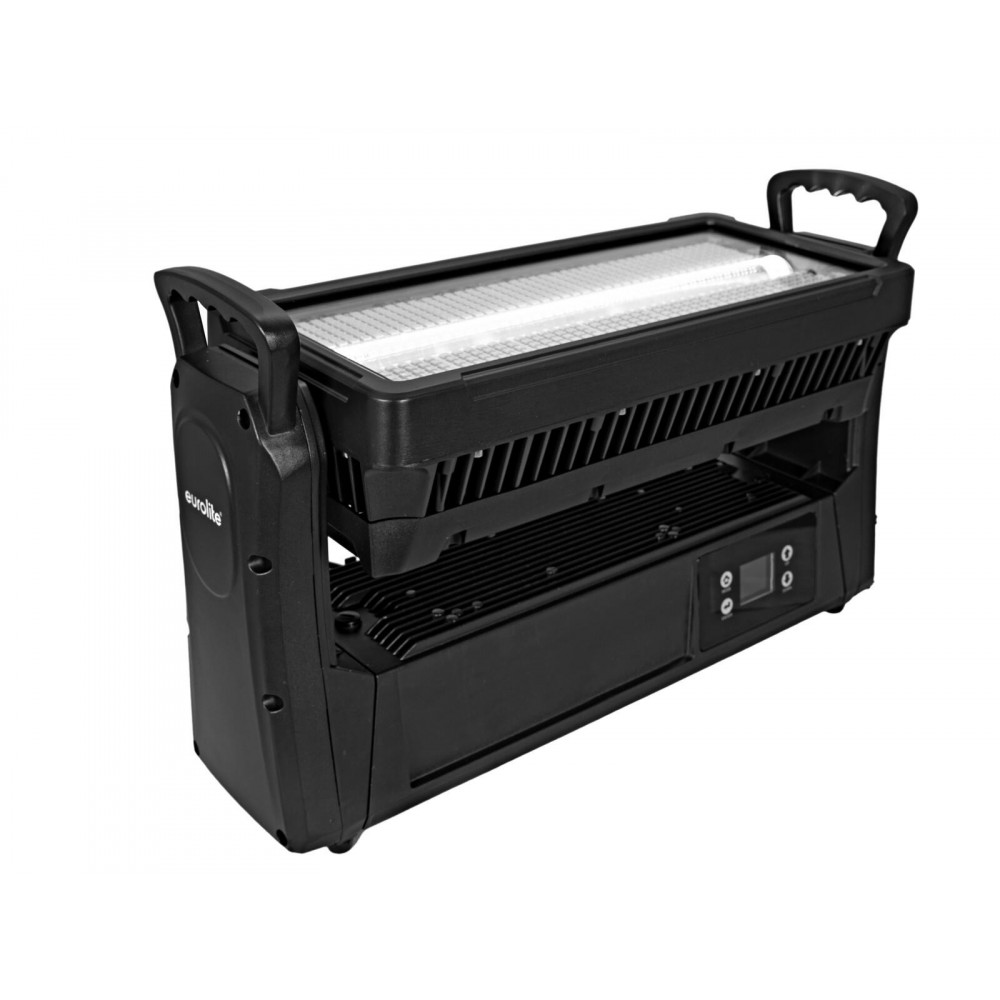

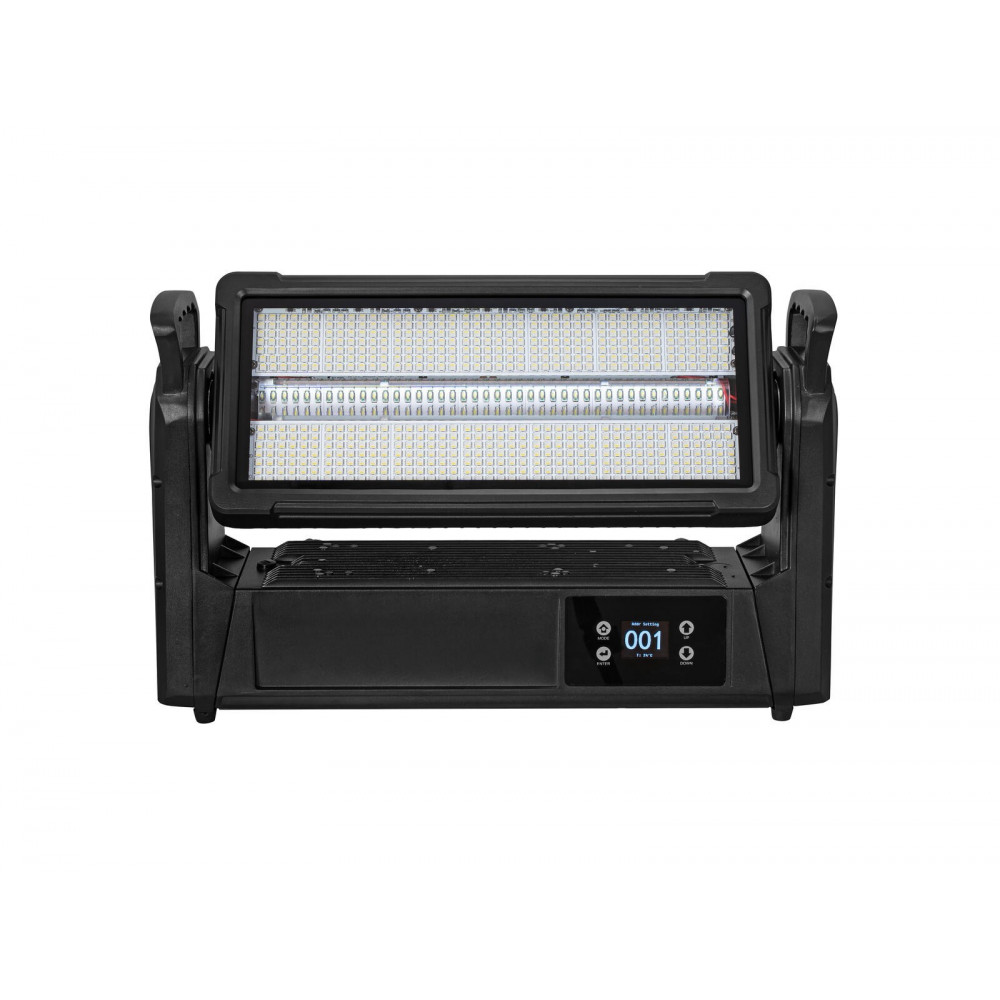

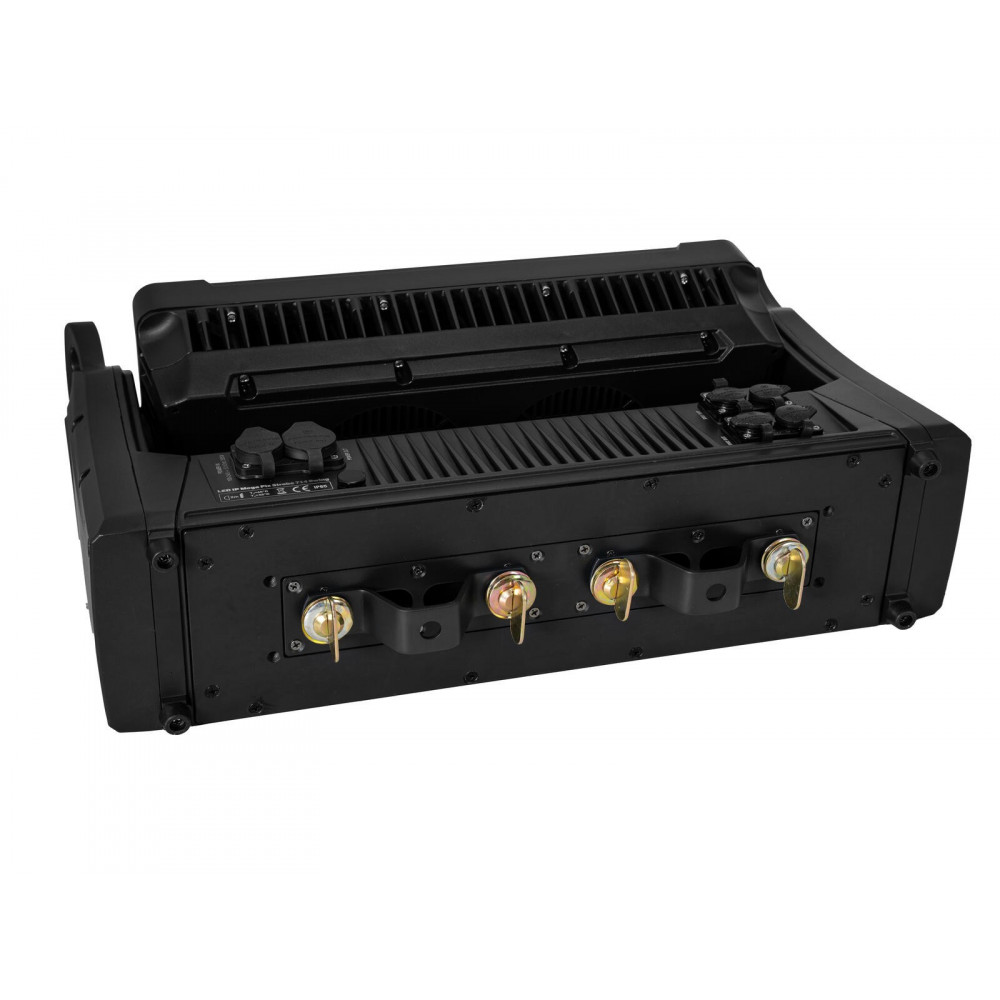

Outdoor spotlight (IP65) with tilt motor for strobe, blinder and matrix effects
- 126 powerful LEDs 3 W SMD 3535 cold white (CW)
7 segments controlled separately - 588 powerful LEDs 0,25 W SMD 5050 4in1 QCL RGBW (homogenous color mix)
14 segments controlled separately - Positioning within 200° TILT
- Dimmer
- Color macros adjustable; background color adjustable; Dimmer electronic; color blend stepless; program speed adjustable; program selection adjustable; running light adjustable

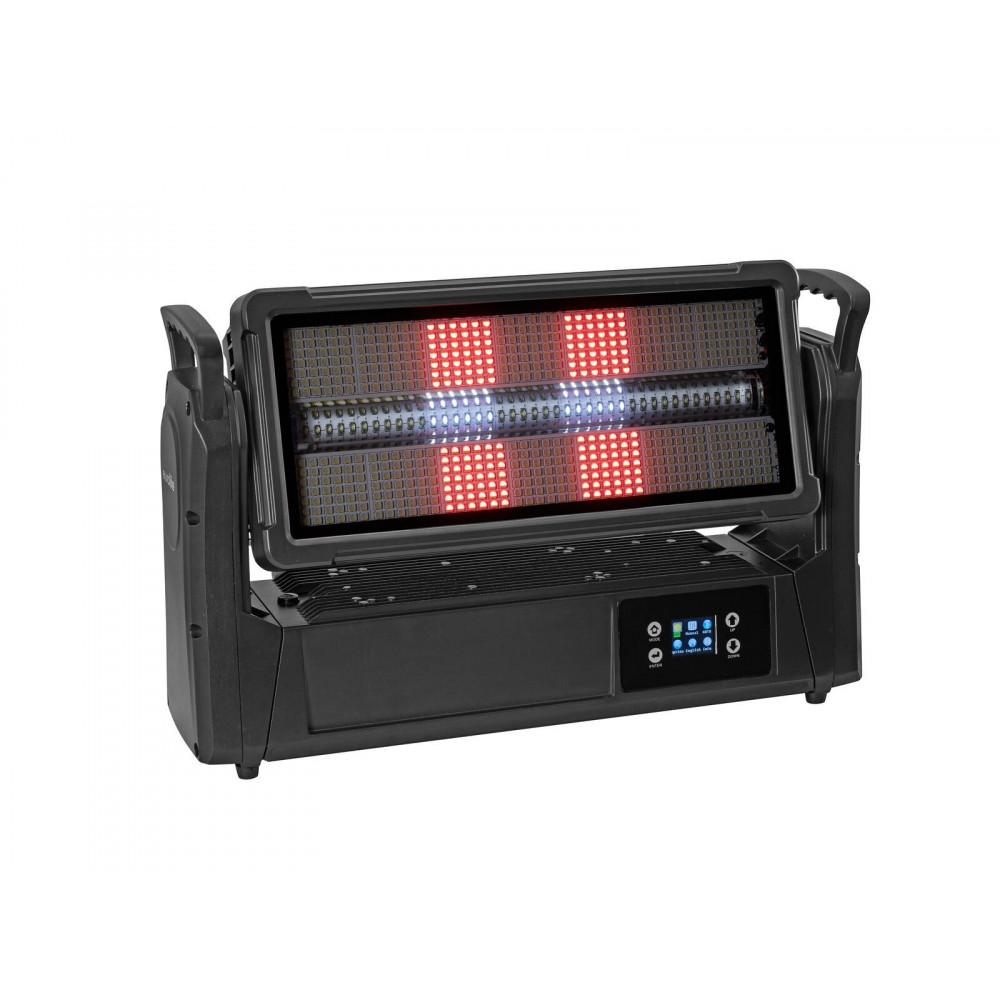

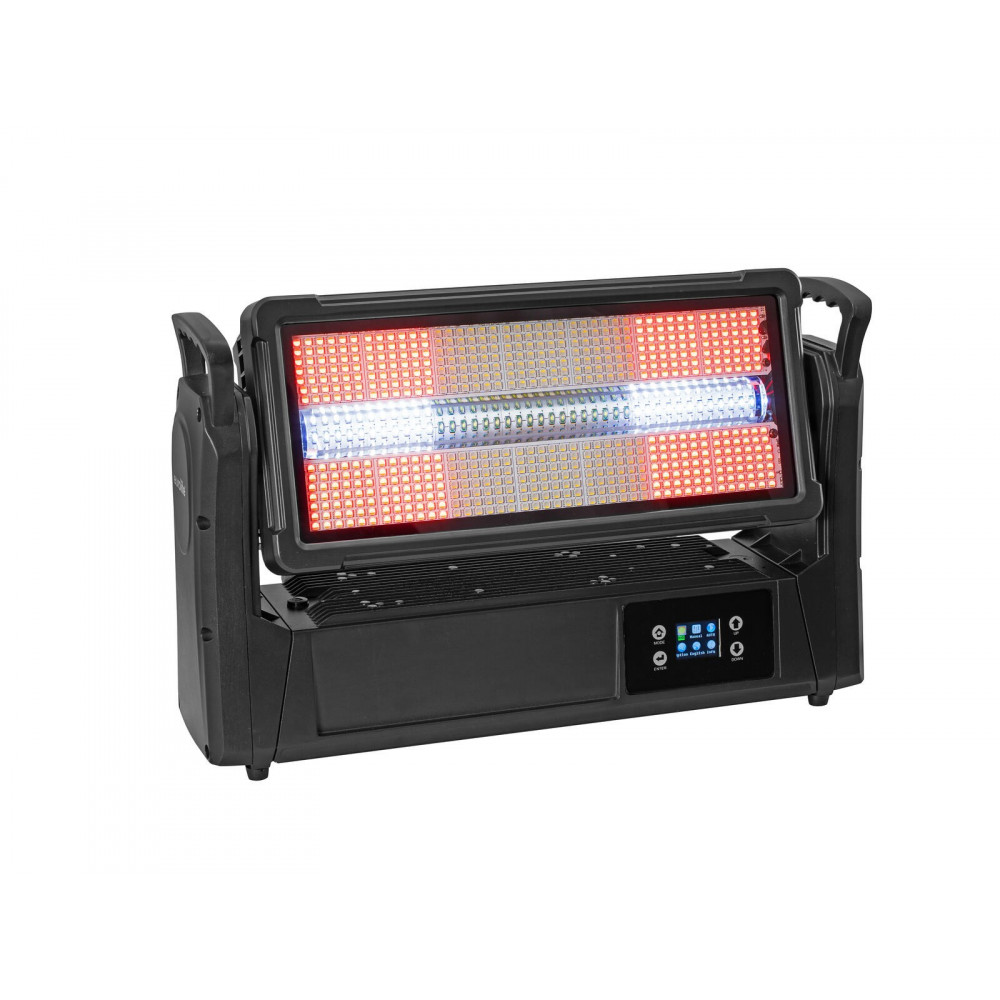

- Matrix effect; strobe effect; Blinder effect
- 46 integrated show programs
- The device is cooled by cooling fan at the base; temperature-controlled fan at the Head
- Control via DMX; RDM; stand-alone; master/slave function
- Flicker-free
- With a beam angle of 120°
- With omega bracket
- Multicolor TFT display
- 2 Rugged carrying handles
- 4 x rubber feet
- Mains input and output for power linking up to 8 units
- Built with SEETRONIC connector
- Suitable for outdoor use IP65
- With pressure compensation membrane
- For application areas such as: Architecture; mobile use; stage; rental
- Application possibility: Standing; suspended
Package contents
- 1 x device, 1 x user manual, 1 x power cord, 2 x omega bracket
Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 365 W
IP classification: IP65
Protection class: Protection class I
Power connection: Mains input via IP T-Con (M) mounting version power supply cord with safety plug
Cable construction: 3 x 1,5 mm² H07RN-F
Power output: IP T-Con (F) mounting version
Lamp type: LED lamp
LED type: 126 x 3 W SMD 3535 cold white (CW)
588 x 0,25 W SMD 5050 4in1 QCL RGBW (homogenous color mix)
Max. TILT movement: 200° positioning auto position correction (feedback)
Flash rate: 0,5 - 17 Hz
Equipment: Dimmer
DMX channels: 8; 9; 11; 12; 17; 18; 71
DMX input: 3-pin XLR (M) mounting version IP
1 x 5-pin XLR (M) mounting version IP
DMX output: 3-pin XLR (F) mounting version IP
1 x 5-pin XLR (F) mounting version IP

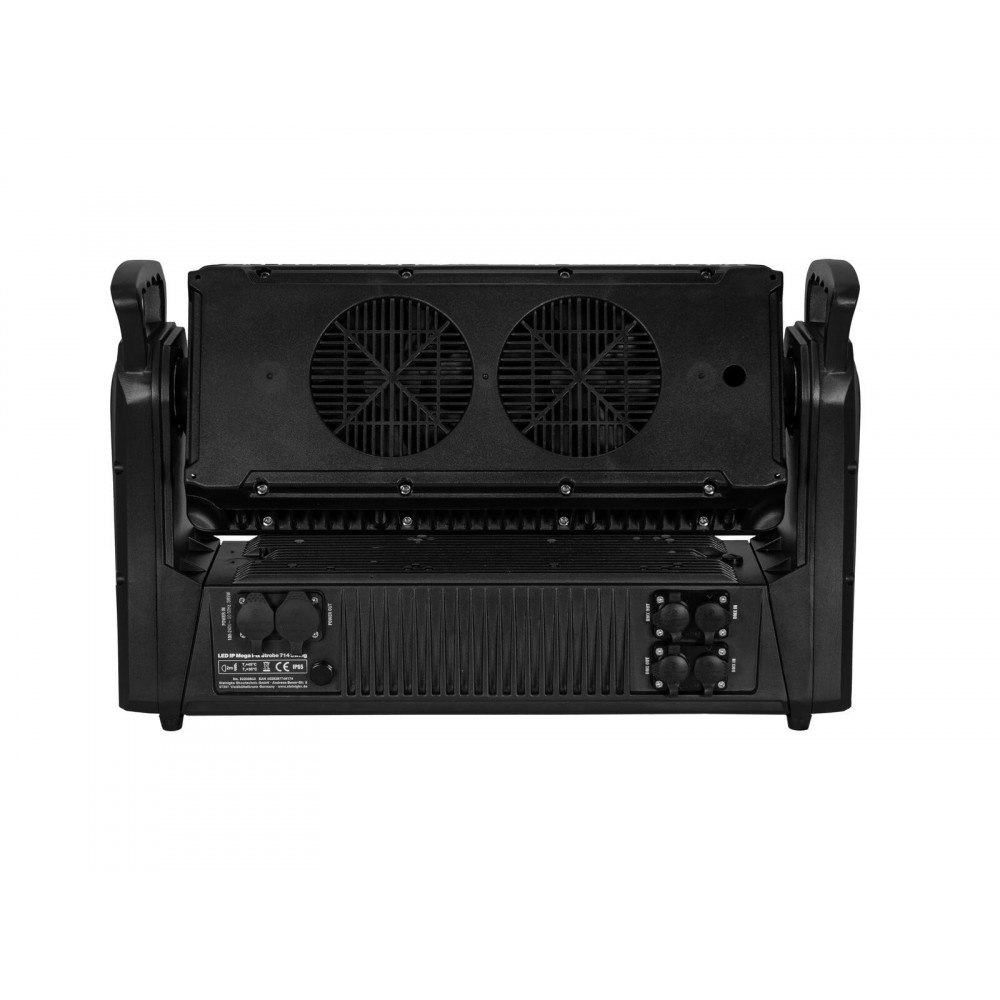

Cooling: 1 x cooling fan at the base
2 x temperature-controlled fan at the Head
Control: DMX; RDM; stand-alone; master/slave function
Projection: Flicker-free
PWM frequency: 4100 Hz
Beam angle: 120°
Beam angle (1/2 peak): Matrix effect 120°
Beam angle (1/10 peak): Matrix effect 170°
Housing color: Black
Attachment system: 2x omega bracket
Display type: Multicolor TFT display
Carrying handle: 2 pc/pcs
Transport aid: 4 x rubber feet
Use of brands: Built with SEETRONIC connector
Material: Aluminum casting
Dimensions: Width: 52,5 cm
Depth: 14,0 cm
Height: 33,5 cm
Weight: 12,85 kg
Noise classification: Class 2 (slight noise)
Legal specifications
Special product: Not designed for household room illumination
Intended use: Show effect lighting
Pikseļi / Strobe | |
Pikseļ jauda, W | 147W |
Strobe jauda, W | 387W |
LED tips | RGBW + CW |
Pikseļu zonas | 14 |
Strobe zonas | 7 |
IP klase | IP65 |
