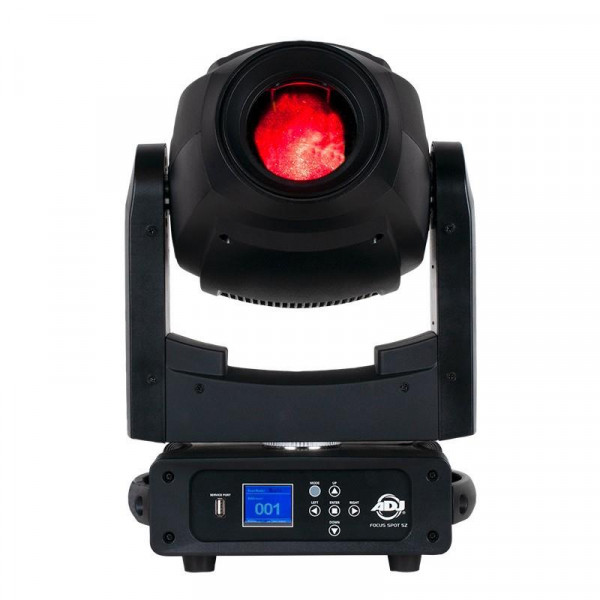

ADJ Focus Spot 5Z

Specifications

Source

• Source: Cool White LED Engine

• Individual LED wattage : 200W

• Average lifetime: approximately 50,000 hrs

Optics

• Motorized Zoom: 11 ~ 22-degrees plus 16-bit Fine Zoom

• Motorized Focus

• 2 Prism FX: Rotating 5-facet Linear & rotating 6-facet Circular, prism overlay

• 2 Linear Frost Effects :Heavy frost for wash effect & Light frost that creates lightly blurred edges for GOBO and Prism FX

Control

• 2 operational modes : Program Mode or DMX control

• 3 DMX Channel Modes: 16/18/22 Channels

• RDM compatible (Remote Device management)

• Internal Programs with built-In DMX Recorder

• 16bit dimming 0-100%

• 6 Dimming Modes: Standard, Stage, TV, Architectural, Theatre, Stage 2

• Adjustable Gamma Brightness : 2.0 / 2.2 / 2.4 / 2.6 or 2.8

• Adjustable LED Refresh Rate from 900Hz to 25kHz for flickerfree operation

• Various strobe effects

• 6-button Color display

• Battery inside, allowing to access the fixture Menu without power connection

• 16bit Pan: 540 & 630 degrees

• 16 bit Tilt: 270 degrees

• 3 Fan settings : Auto, High and Low Noise

Colors

• 2 separate color wheels each with 7 dichroic colors + white (includes CTO, CTB and UV filters)

Gobos

• 1 gobo wheel with 6 aluminum GOBOs + open

• All gobos removable, rotatable and indexable

• Gobo Shake Effect

• Gobo size: 22,5mm (outer); 19mm (viewable); 0.5-2mm (thickness)

Construction

• White Plastic housing

• 2 cooling fans

Electrical

• Multivoltage : 100-240V 50/60Hz

• Power Draw : 256W

Connections

• Locking 5-pin DMX In/Out

• Locking Power In/Out (Daisy chain 4 units @ 120V; 10 units @ 240V)

• USB firmware update port

 Dimensions & Weight:

• Dimensions: 457 x 279 x 182mm

• Weight: 10 kg.
