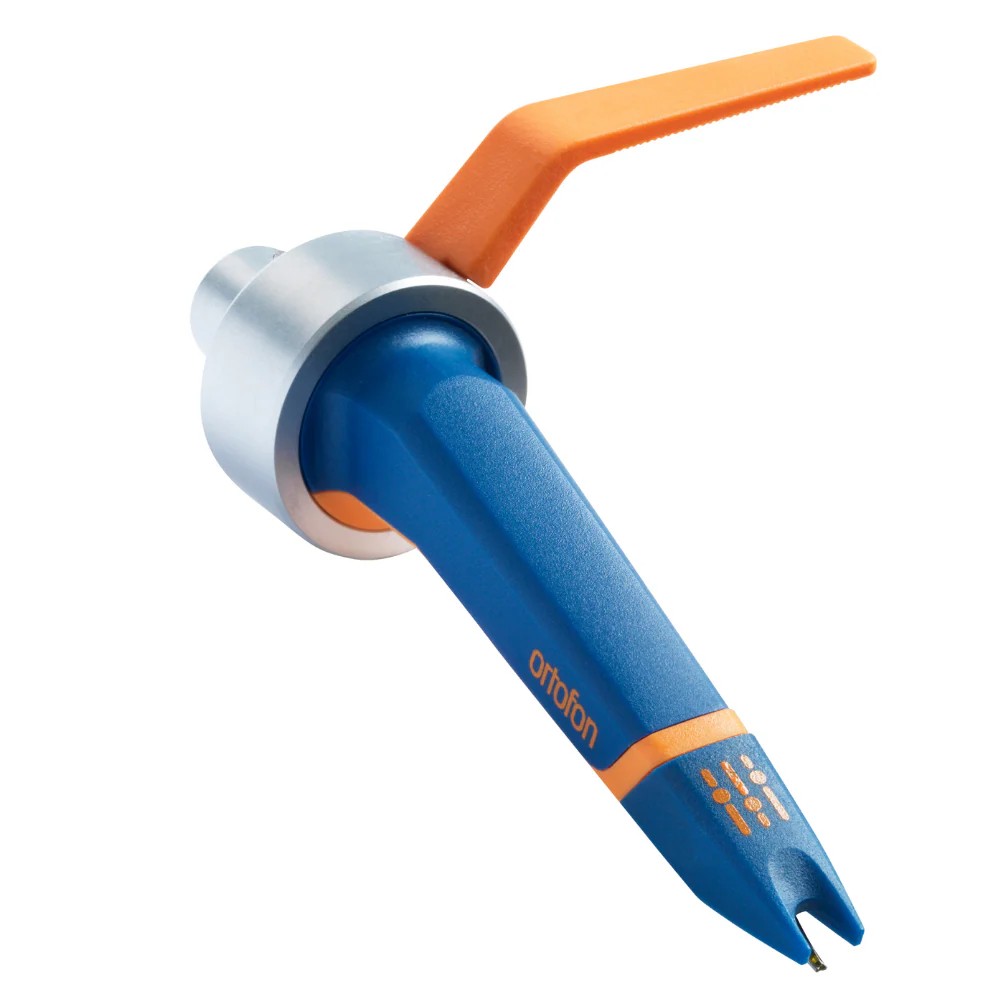

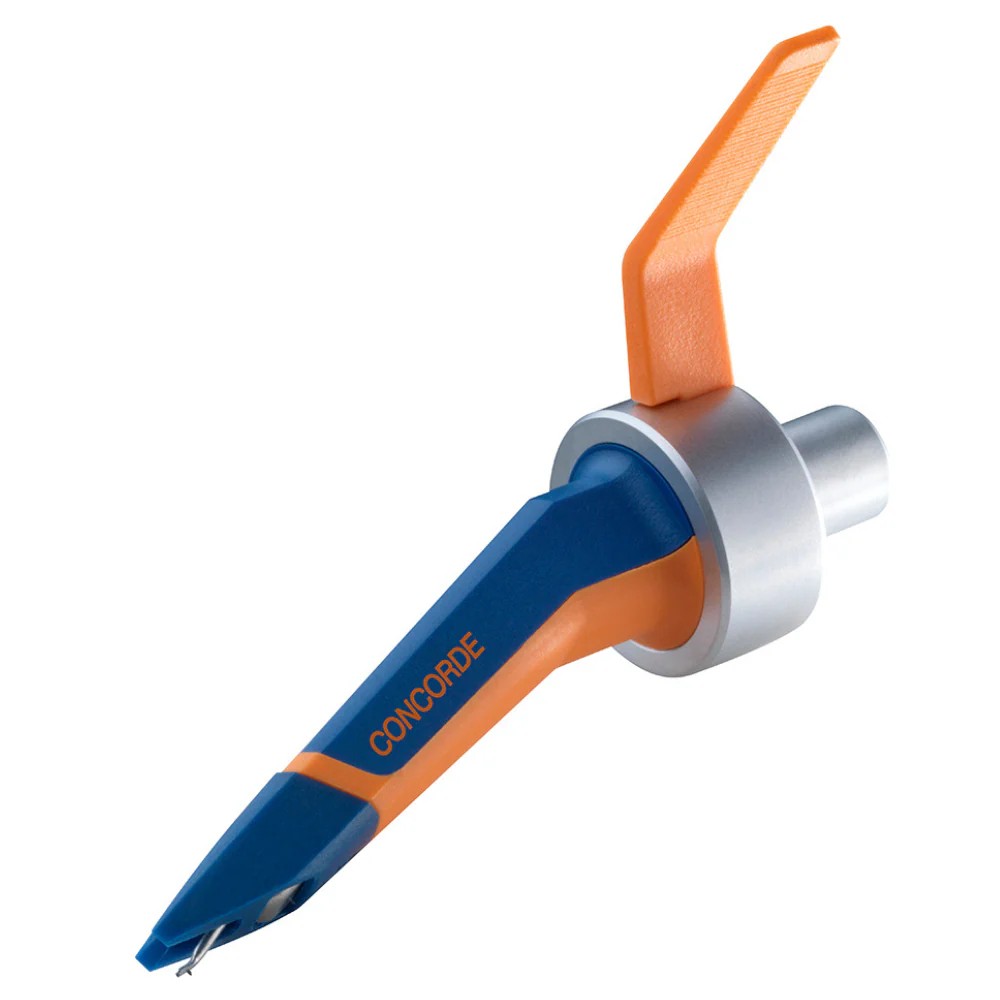

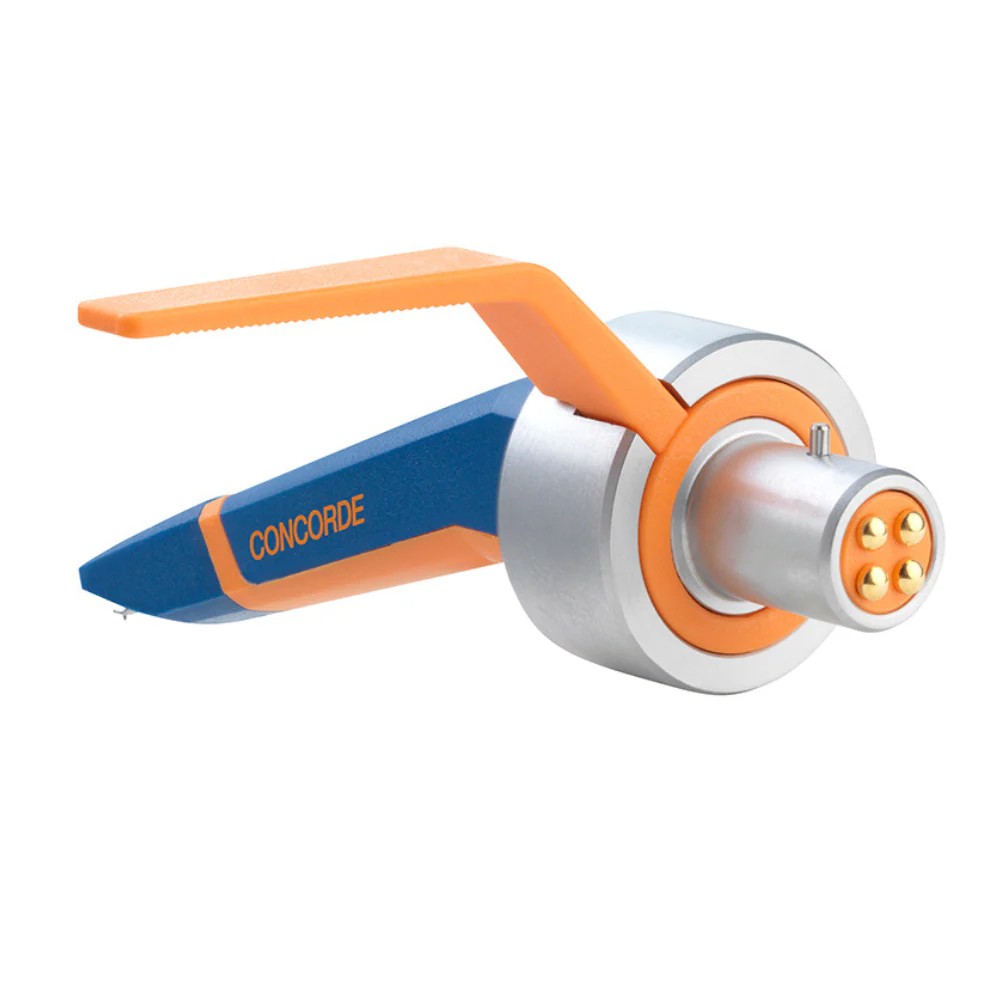

ORTOFON Concorde MKII DJ

The Concorde DJ is considered the jack-of-all-trades, boasting accurate sound reproduction and excellent groove handling. Not only does the cartridge have a most sufficient tracking ability, it also provides the DJs with the most needed stringency and very low record wear.

• Output voltage at 1 kHz, 5cm/sec
  6 mV
• Tracking ability at 315Hz
  100 μm
• Cantilever material
  Aluminium
• Stylus type
  Spherical diamond
• Stylus tip radius
  R 18 μm
• Channel separation at 1 kHz
  22 dB
• Dynamic lateral compliance
  14 μm/m N
• Recommended tracking force
  4 g
• Recommended load resistance
  47 kOhm
• Cartridge weight
  18,5 g
• Channel balance at 1 kHz
  1 dB
• Internal impedance, DC resistance
  700 Ohm
• Internal inductance
  450 mH
• Recommended load capacitance
  200-600 pF
