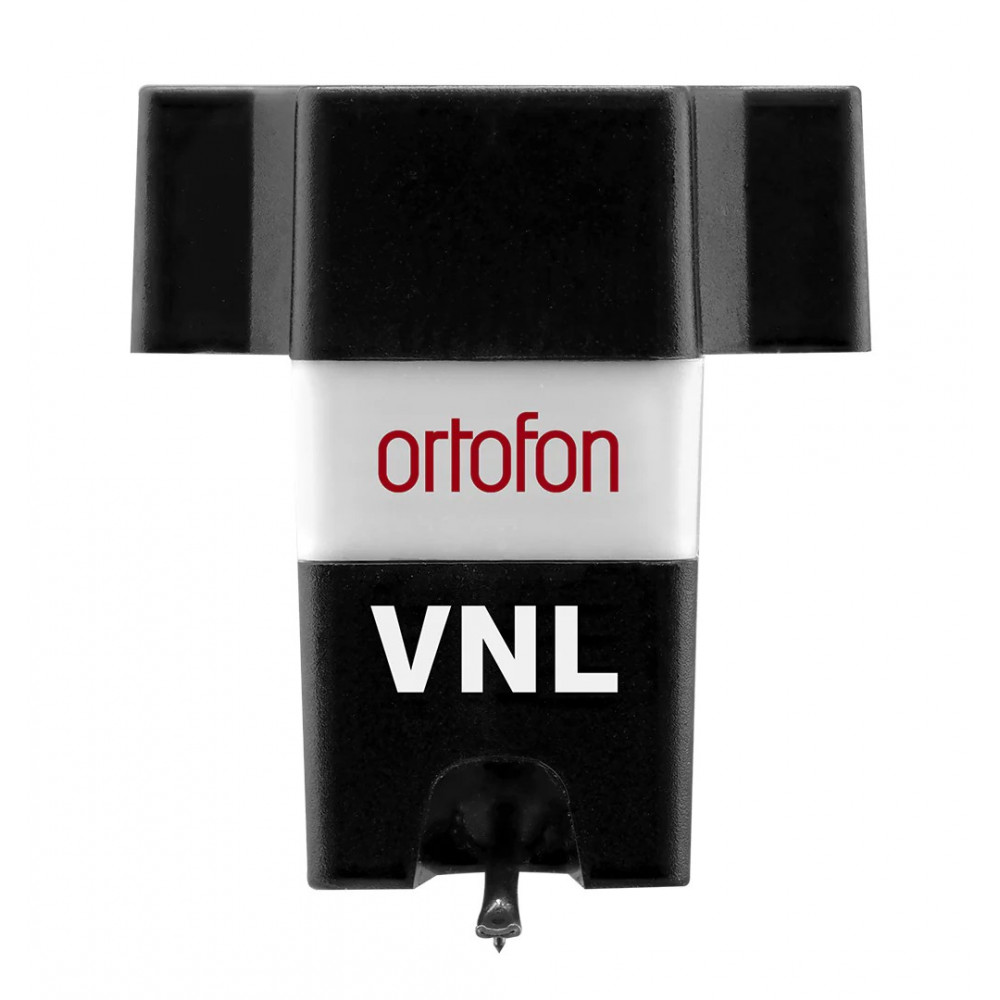

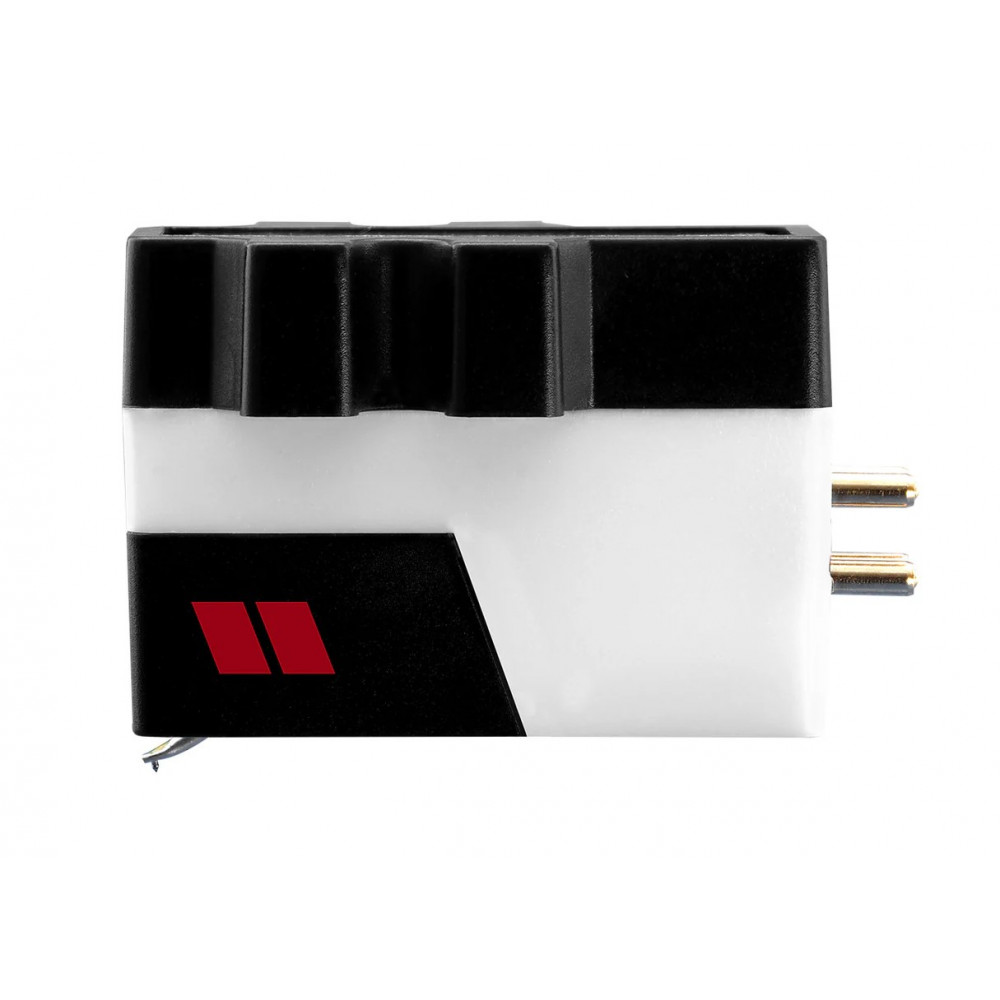

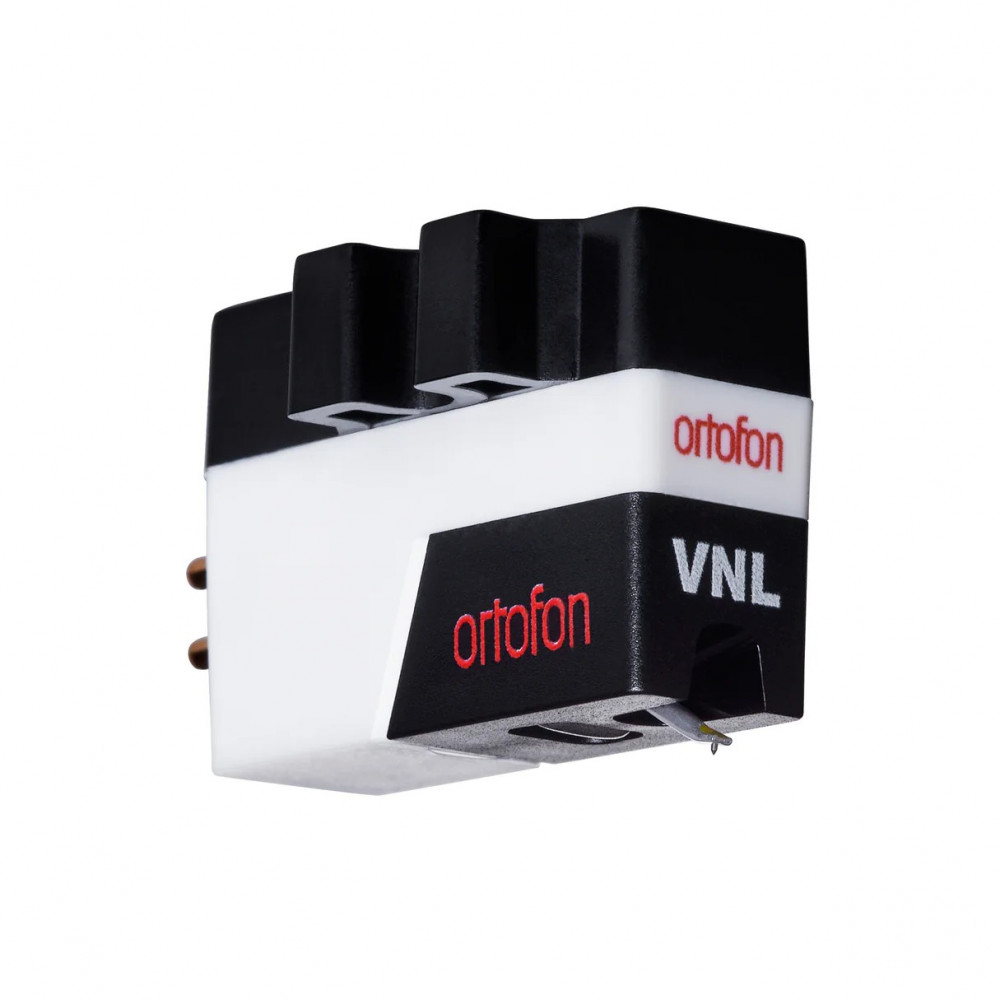

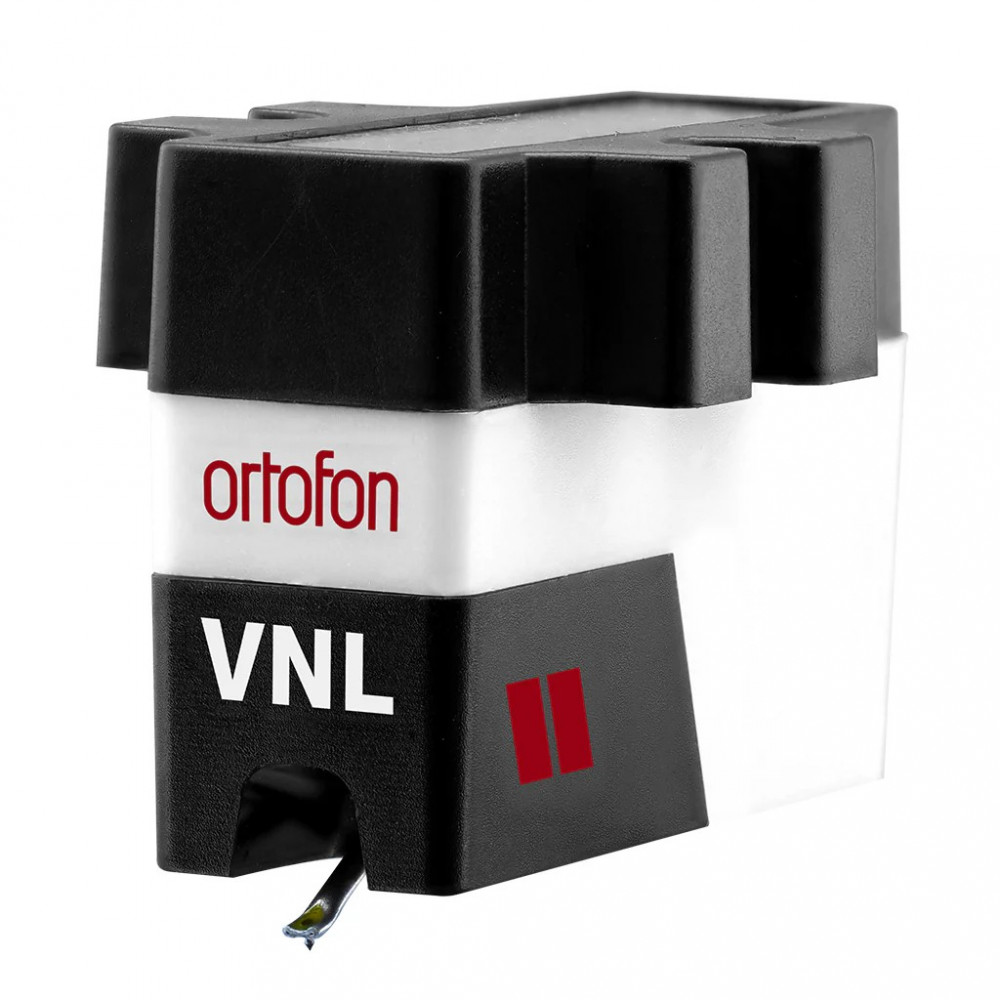

ORTOFON VNL

Among skilled DJs, the need for specialized tools is ongoing, driving their creative journey toward innovation's edge. These DJs consistently seek to expand performance boundaries and discover fresh artistic dimensions.

Building on this understanding and drawing from our extensive experience in industrial design and technology, we introduce the Ortofon VNL cartridge. Carefully designed to meet the demands of modern turntablists and portablists, the VNL stands as a testament to our commitment to pushing limits and reshaping possibilities.

The VNL comes with the VNL II stylus pre-mounted on the VNL cartridge body.

• Output voltage at 1 kHz, 5cm/sec
  6 mV
• Tracking ability at 315Hz
  90 µm
• Stylus type
  Spherical
• Stylus tip radius
  R 18 µm
• Channel separation at 1 kHz
  20 dB
• Frequency response 20 Hz - 20 kHz
  –2 / +4 dB
• Dynamic lateral compliance
  15 µm/mN
• Recommended tracking force
  4 g
• Recommended load resistance
  47 kOhm
• Cartridge weight
  6.5 g
• Premounted cartridge weight
  16.0 g
• Cartridge colour
  White
• Internal impedance, DC resistance
  700 Ohm
• Internal inductance
  450 mH
• Recommended load capacitance
  47 kOhm
