ORTOFON Concorde MKII Twin Mix

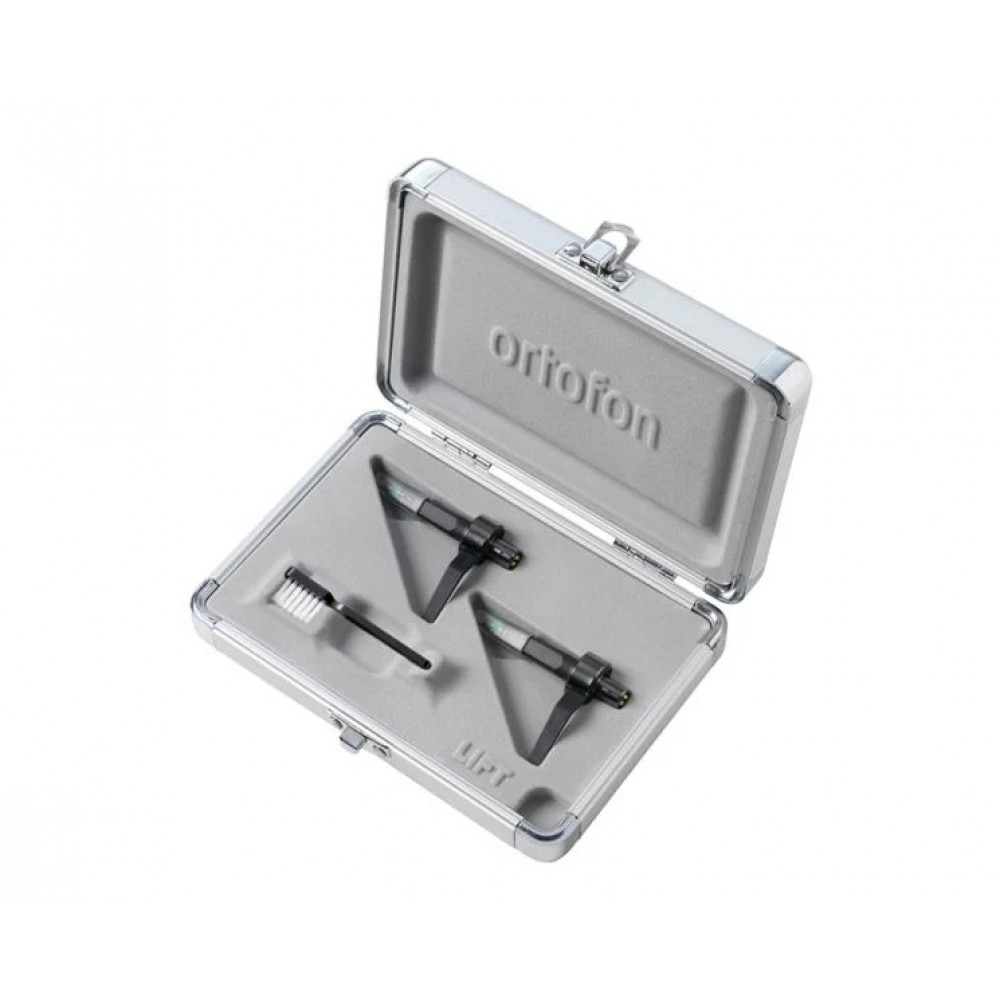

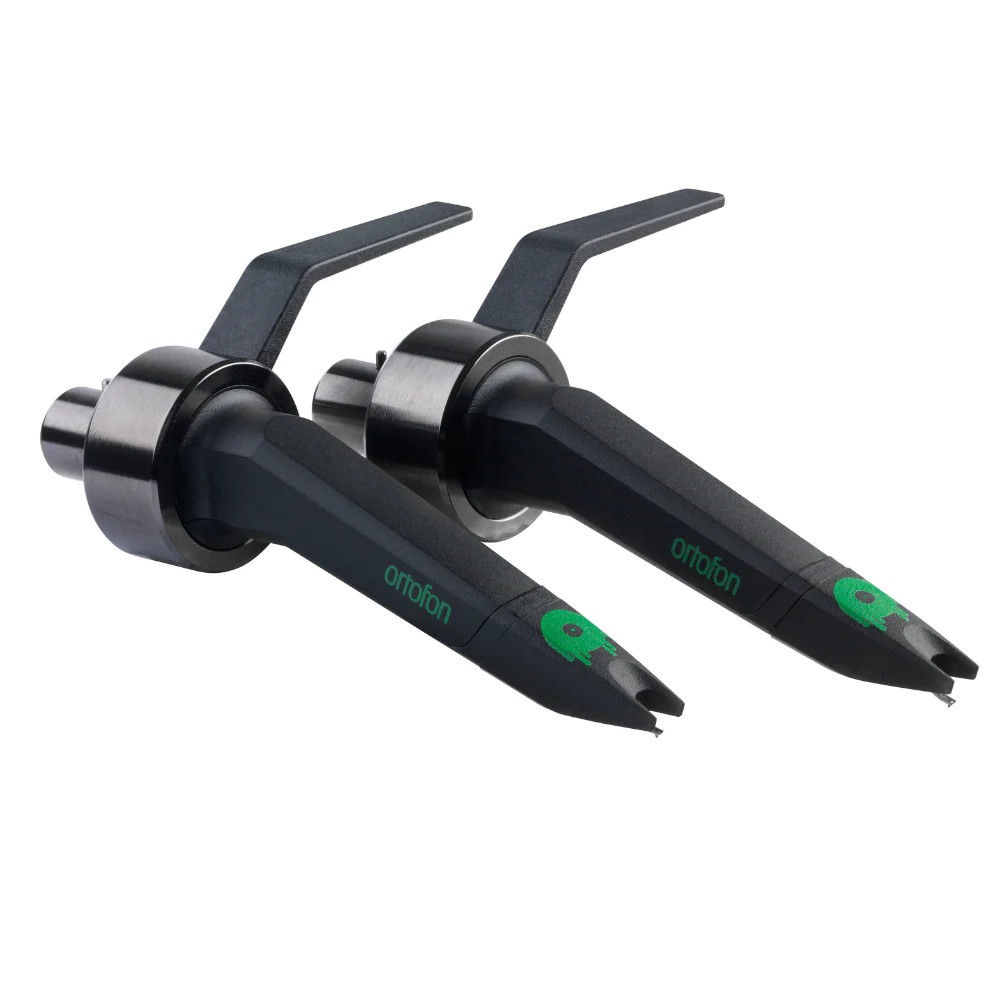

The Concorde TWIN includes two Concorde MKII MIX cartridges with preinstalled styli, all conveniently housed within a Flight case. The MIX is a general-purpose model for scratch and back-cueing, providing great performance and durability. With transparent sound across the spectrum and excellent handling ability, the MIX represents one of the longest running values in DJ cartridges.

• Output voltage at 1 kHz, 5cm/sec
  6 mV
• Tracking ability at 315Hz
  100 μm
• Cantilever material
  Aluminium
• Stylus type
  Spherical diamond
• Stylus tip radius
  R 18 μm
• Channel separation at 1 kHz
  20 dB
• Dynamic lateral compliance
  14 μm/m N
• Recommended tracking force
  3 g
• Recommended load resistance
  47 kOhm
• Cartridge weight
  18,5 g
• Channel balance at 1 kHz
  1,5 dB
• Internal impedance, DC resistance
  700 Ohm
• Internal inductance
  450 mH
• Recommended load capacitance
  200-600 pF
