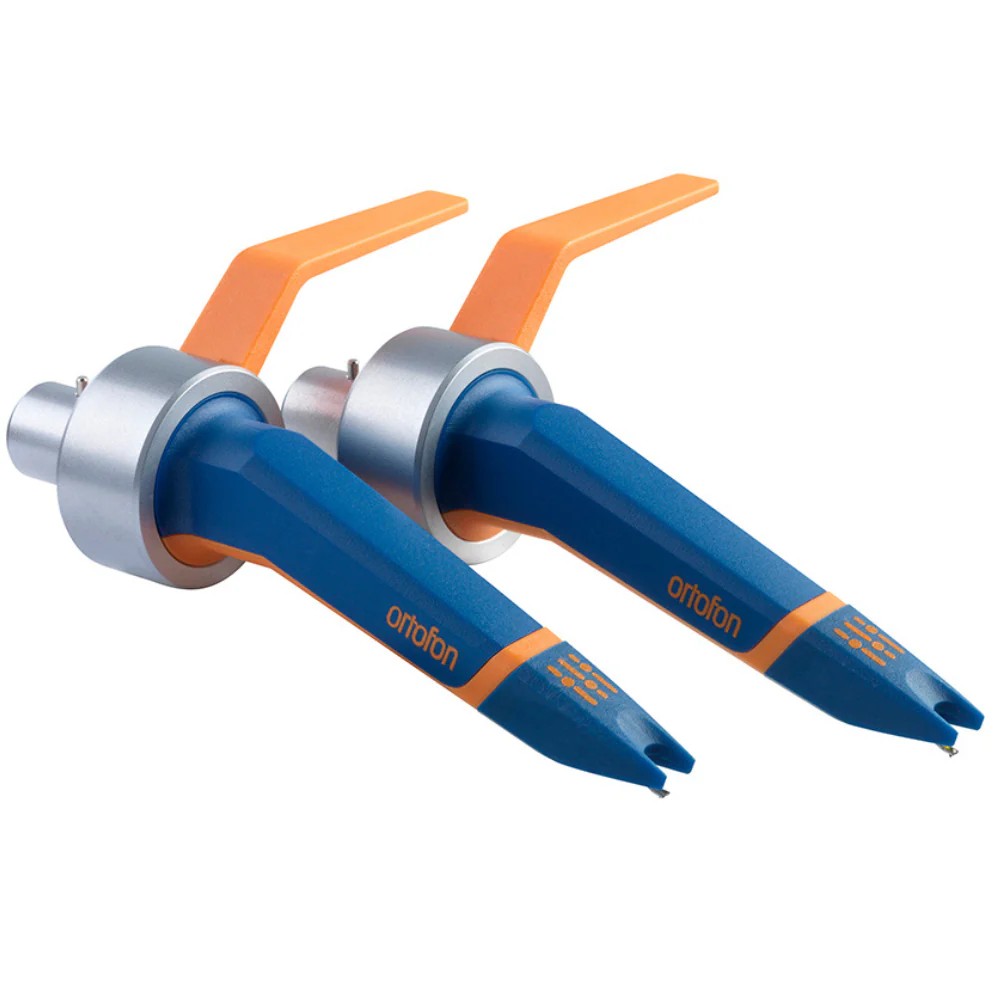

ORTOFON Concorde MKII Twin DJ

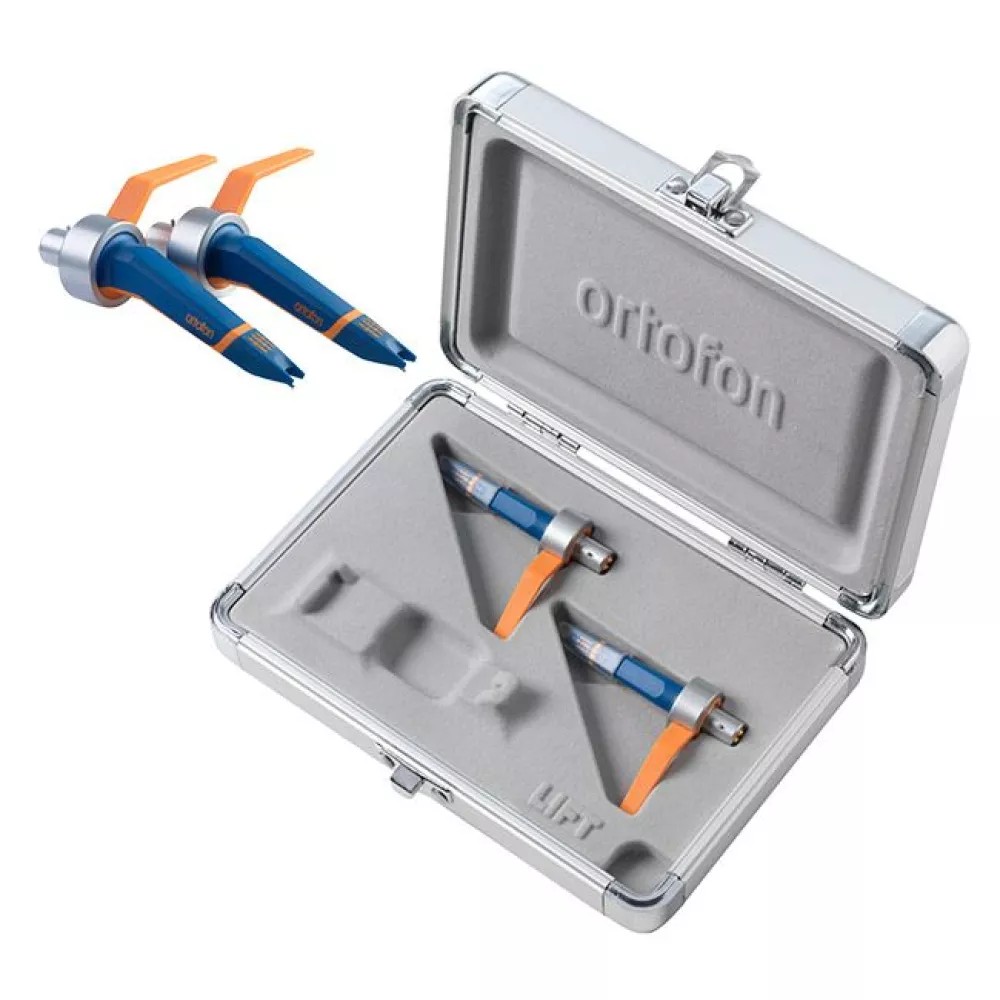

The Concorde TWIN includes two Concorde MKII DJ cartridges with preinstalled styli, all conveniently housed within a Flight case. The Concorde DJ is the jack-of-all-trades, boasting accurate sound reproduction and excellent groove handling. Not only does the cartridge have sufficient tracking ability, it also provides the DJs with the most needed stringency and very low record wear.

• Output voltage at 1 kHz, 5cm/sec
  6 mV
• Tracking ability at 315Hz
  100 μm
• Cantilever material
  Aluminium
• Stylus type
  Spherical diamond
• Stylus tip radius
  R 18 μm
• Channel separation at 1 kHz
  22 dB
• Dynamic lateral compliance
  14 μm/m N
• Recommended tracking force
  4 g
• Recommended load resistance
  47 kOhm
• Cartridge weight
  18,5 g
• Channel balance at 1 kHz
  1 dB
• Internal impedance, DC resistance
  700 Ohm
• Internal inductance
  450 mH
• Recommended load capacitance
  200-600 pF
