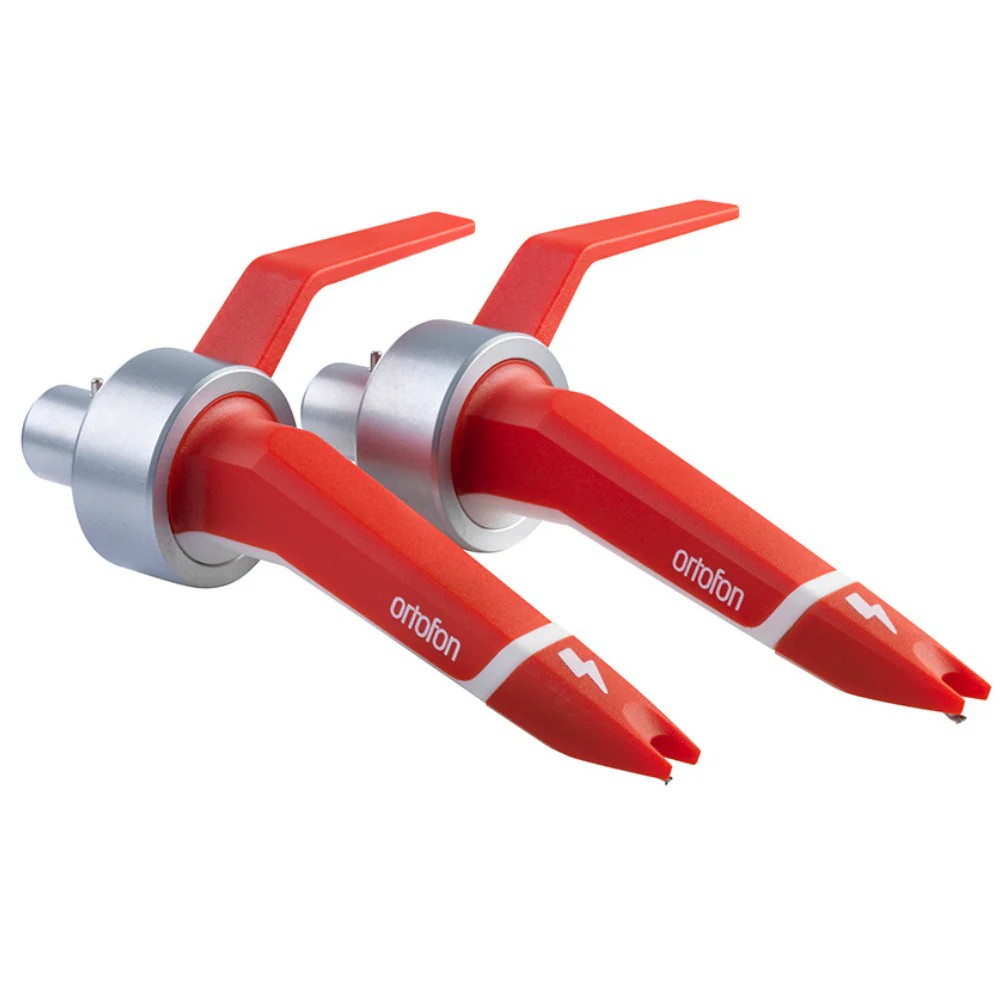

ORTOFON Concorde MKII Twin Digital

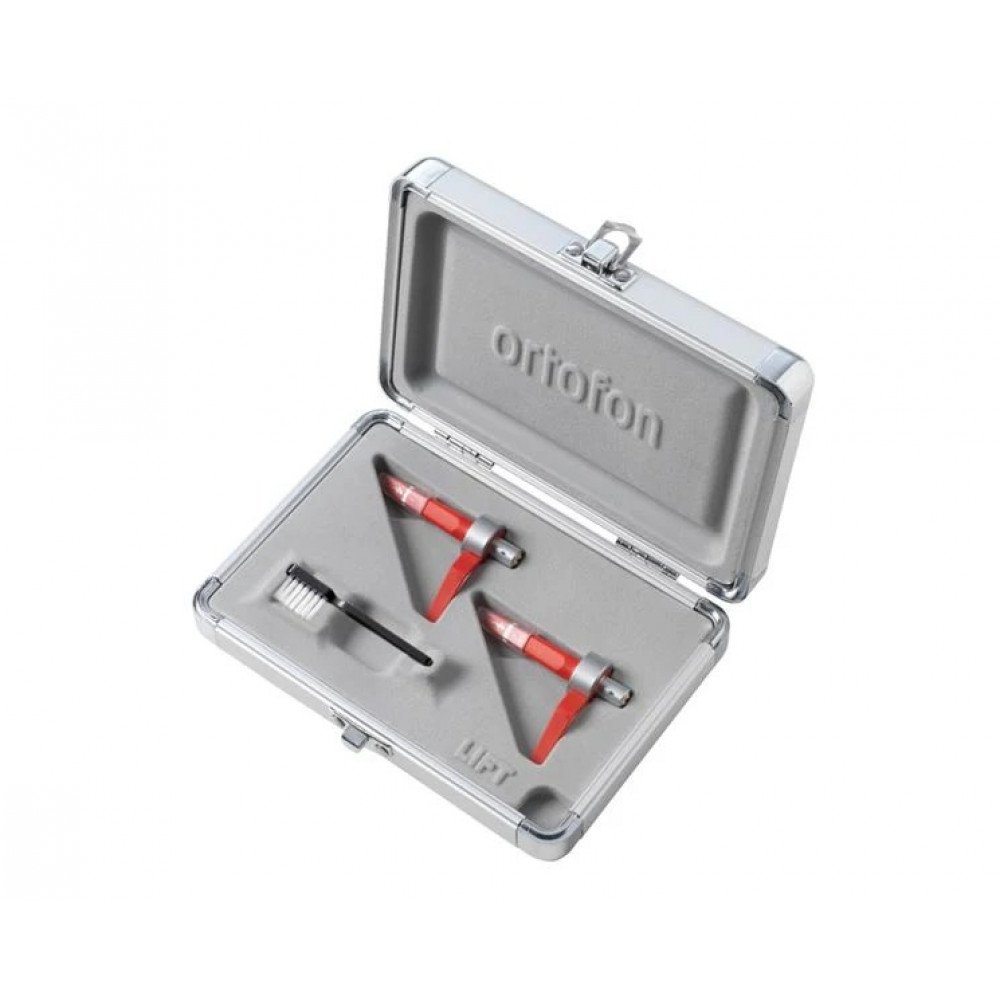

The Concorde Twin includes two Concorde MKII DIGITAL cartridges with preinstalled styli, all conveniently housed within a Flight case. The Concorde DIGITAL is designed to extend the life of timecode vinyl and minimize errors in decoding. At the same time DIGITAL provides optimal output voltage and sound quality for use with conventional vinyl.

• Output voltage at 1 kHz, 5cm/sec
  10 mV
• Tracking ability at 315Hz
  100 μm
• Cantilever material
  Aluminium
• Stylus type
  Spherical diamond
• Stylus tip radius
  R 18 μm
• Channel separation at 1 kHz
  22 dB
• Dynamic lateral compliance
  14 μm/m N
• Recommended tracking force
  4 g
• Recommended load resistance
  47 kOhm
• Cartridge weight
  18,5 g
• Channel balance at 1 kHz
  1 dB
• Internal impedance, DC resistance
  1200 Ohm
• Internal inductance
  850 mH
• Recommended load capacitance
  200-400 pF
