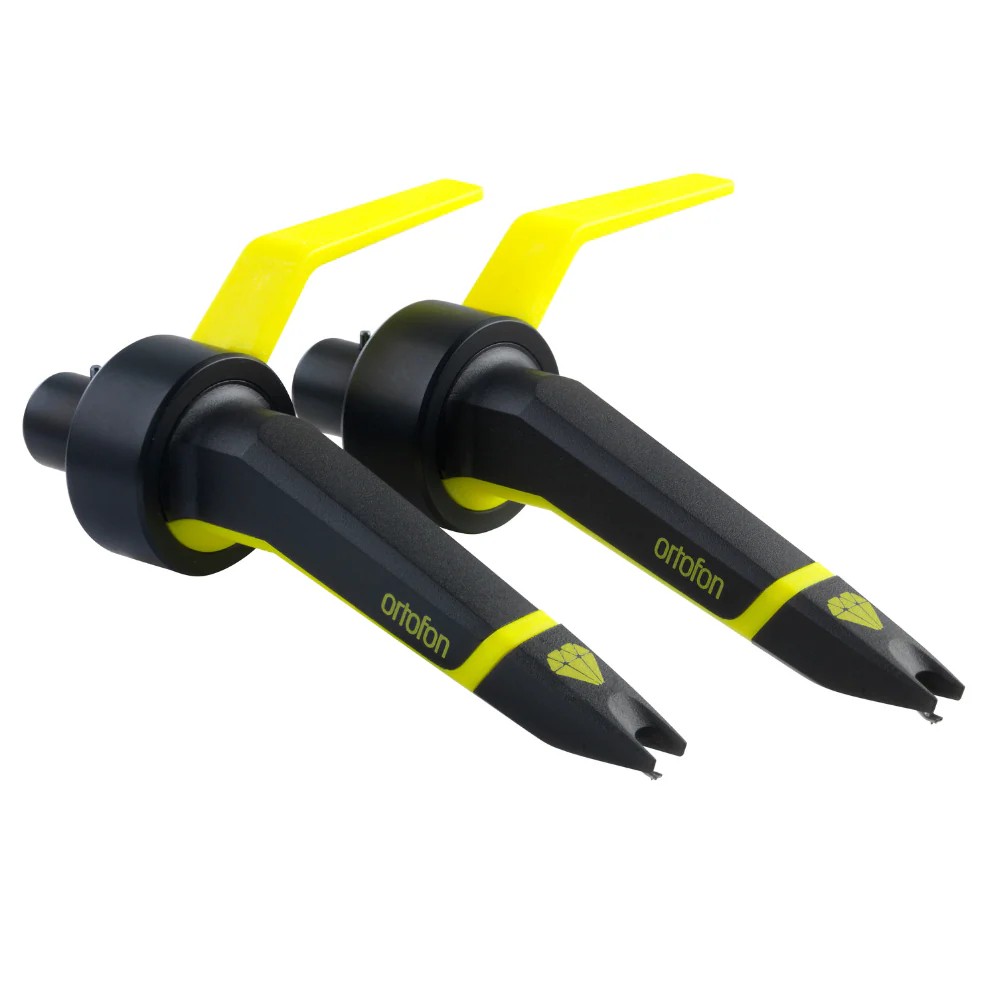

ORTOFON Concorde MKII Twin Club

The Concorde TWIN includes two Concorde MKII DJ cartridges with preinstalled styli, all conveniently housed within a Flight case. The Concorde CLUB delivers exceptional sound quality and an elevated output voltage for a powerful, energetic audio experience. With its outstanding specifications and remarkable sound profile, the CLUB stands as a prime selection for Club DJs across various settings – be it the studio, broadcast, or club venues.

• Output voltage at 1 kHz, 5cm/sec
  8 mV
• Tracking ability at 315Hz
  100 μm
• Cantilever material
  Aluminium
• Stylus type
  Special Elliptical diamond
• Stylus tip radius
  r/R 13/25 μm
• Channel separation at 1 kHz
  25 dB
• Dynamic lateral compliance
  14 μm/m N
• Recommended tracking force
  3 g
• Recommended load resistance
  18,5 g
• Cartridge weight
  18,5 g
• Channel balance at 1 kHz
  1 dB
• Internal impedance, DC resistance
  1000 Ohm
• Internal inductance
  650 mH
• Recommended load capacitance
  200-600 pF
