EUROLITE LED KLS Scan Next FX Compact Light Set

EUROLITE LED KLS Scan Next FX Compact Light Set
EUROLITE LED KLS Scan Next FX Compact Light Set
EUROLITE LED KLS Scan Next FX Compact Light Set
EUROLITE LED KLS Scan Next FX Compact Light Set
EUROLITE LED KLS Scan Next FX Compact Light Set
EUROLITE LED KLS Scan Next FX Compact Light Set
EUROLITE LED KLS Scan Next FX Compact Light Set
-8 %
EUROLITE LED KLS Scan Next FX Compact Light Set
EUROLITE LED KLS Scan Next FX Compact Light Set
EUROLITE LED KLS Scan Next FX Compact Light Set
EUROLITE LED KLS Scan Next FX Compact Light Set
EUROLITE LED KLS Scan Next FX Compact Light Set
EUROLITE LED KLS Scan Next FX Compact Light Set
EUROLITE LED KLS Scan Next FX Compact Light Set

FEATURES
Compact bar with derby, spots, scanners, UV effect, QuickDMX port and bag

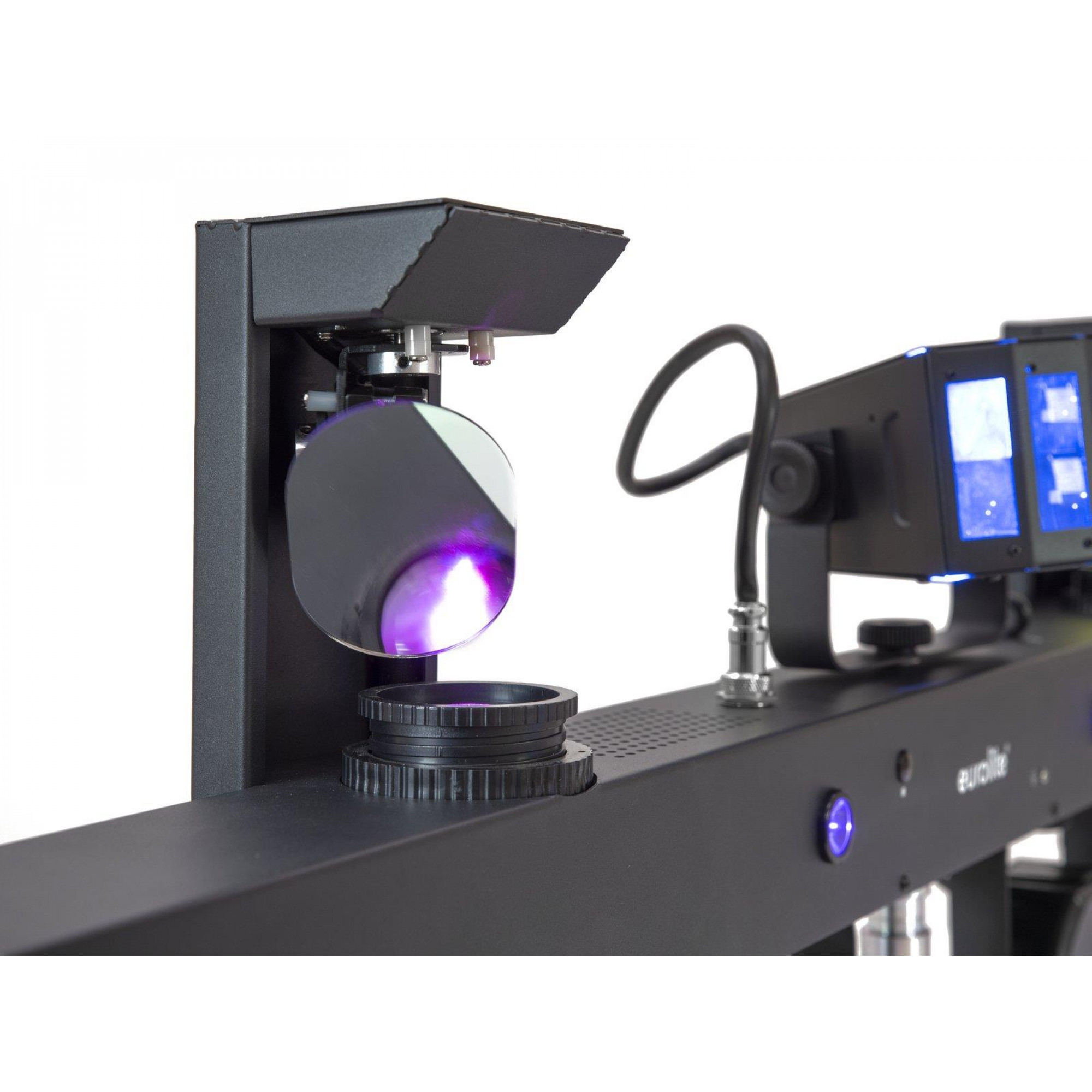

  • DMX light effect bar with 1 rotating LED derby, 4 LED spots, 2 scanners and UV LEDs
  • Ultra-light ideally suited for mobile use
  • Crossbar with integrated DMX control unit and TV spigot for stand installation
  • Swivel mounting brackets for truss mounting
  • Comes pre-assembled with practical transport bag
  • Convenient control via included IR remote control or optional wireless foot switch
  • Sound-control via built-in microphone with sensitivity control
  • Several diverse DMX modes for various consoles and requirements
  • LED derby and LED spots individually tiltable and controllable
  • Spots with 15° beam angle
  • Mirror movement can be inverted separately for both scanners (e.g. for common, counter-rotating control)
  • Brand-new software design with smart programs
  • 20 built-in auto and music show programs that include all 4 effect units
  • Addressing and setting via control panel with 4-digit OLED display
  • Supports QuickDMX - the wireless DMX system by Eurolite
  • Built-in phantom-powered USB port for QuickDMX receivers (accessories)
  • When fog is used, this effect becomes especially attractive
  • P-Con terminals for power linking up to 8 units
  • Switch-mode power supply for operation between 100 and 240 volts
  • Can be operated in 3; 7; 13; 14; 15; 18; 19; 30; 32; 39 CH mode
  • The device is cooled by cooling fan
  • Controlling by DMX; QuickDMX via USB (optional); IR remote control (provided); Sound to light via Microphone; Stand-alone; Wireless footswitch (optional); Master/slave function
  • For application areas such as: Wedding/gala; Lender; Small lender
  • spotlight
  • LED: Spot each 3 x high-power 7 W 4in1 QCL RGB/WW (homogenous color mix)
  • LED: Multi beam effect each 1 x 3 W RGB
  • LED: Scanner each 1 x 15 W CW
  • LED: 4 x high-power 1 W UV

TECHNICAL SPECIFICATIONS
  • Power supply: 100-240 V AC, 50/60 Hz
  • Power consumption: 115 W
  • IP classification: IP20
  • Protection class: Class I
  • Power connection: Mains input P-Con (blue), mounting version Power supply cord with safety plug (provided)
  • Power output: P-Con (gray), mounting version
  • Fuse: 5 x 20 mm, T 2 A Fuse replaceable
  • Lamp type: LED lamp
  • Equipment: Color wheel; gobo wheel with static gobos
  • DMX channels: 3; 7; 13; 14; 15; 18; 19; 30; 32; 39
  • DMX input: 1 x 3-pin XLR (M) mounting version
  • DMX output: 1 x 3-pin XLR (F) mounting version
  • Cooling: Cooling fan
  • Control: DMX; QuickDMX via USB (optional); IR remote control (provided); Sound to light via Microphone; Stand-alone; Wireless footswitch (optional); Master/slave function
  • Beam angle: 15°
  • Beam angle (1/2 peak): Spot 15°
  • Beam angle (1/10 peak): Spot 28°

Illuminance in Lux (lx):
  • R red 1m: 1022 lx, 3m: 125 lx, 6m: 33 lx
  • G green 1m: 2448 lx, 3m: 285 lx, 6m: 75 lx
  • B blue 1m: 395 lx, 3m: 47 lx, 6m: 13 lx
  • WW 1m: 1892 lx, 3m: 219 lx, 6m: 58 lx
  • All 1m: 4853 lx, 3m: 676 lx, 6m: 175 lx

  • Housing color: Black
  • Attachment system: TV spigot Ø 28mm
  • Display type: OLED display

Dimension:
  • Width: 110 cm
  • Depth: 15.5 cm
  • Height: 43 cm
  • Weight: 12.80 kg

spotlight
  • LED: Spot each 3 x high-power 7 W 4in1 QCL RGB/WW (homogenous color mix)

 light effect
  • LED: Multi beam effect each 1 x 3 W RGB

moving light
  • LED: Scanner each 1 x 15 W CW

bar
  • LED: 4 x high-power 1 W UV

Remote control
  • Battery: 1 x Button cell 3.0 V CR2025 lithium manganese

Legal specifications
  • Ecodesign regulation: Yes
  • Special product: Not designed for household room illumination
  • Purpose: Show effect lighting
  • PACKAGING UNITS: 13,80 kg, 115cm x 17,5cm x 52cm
