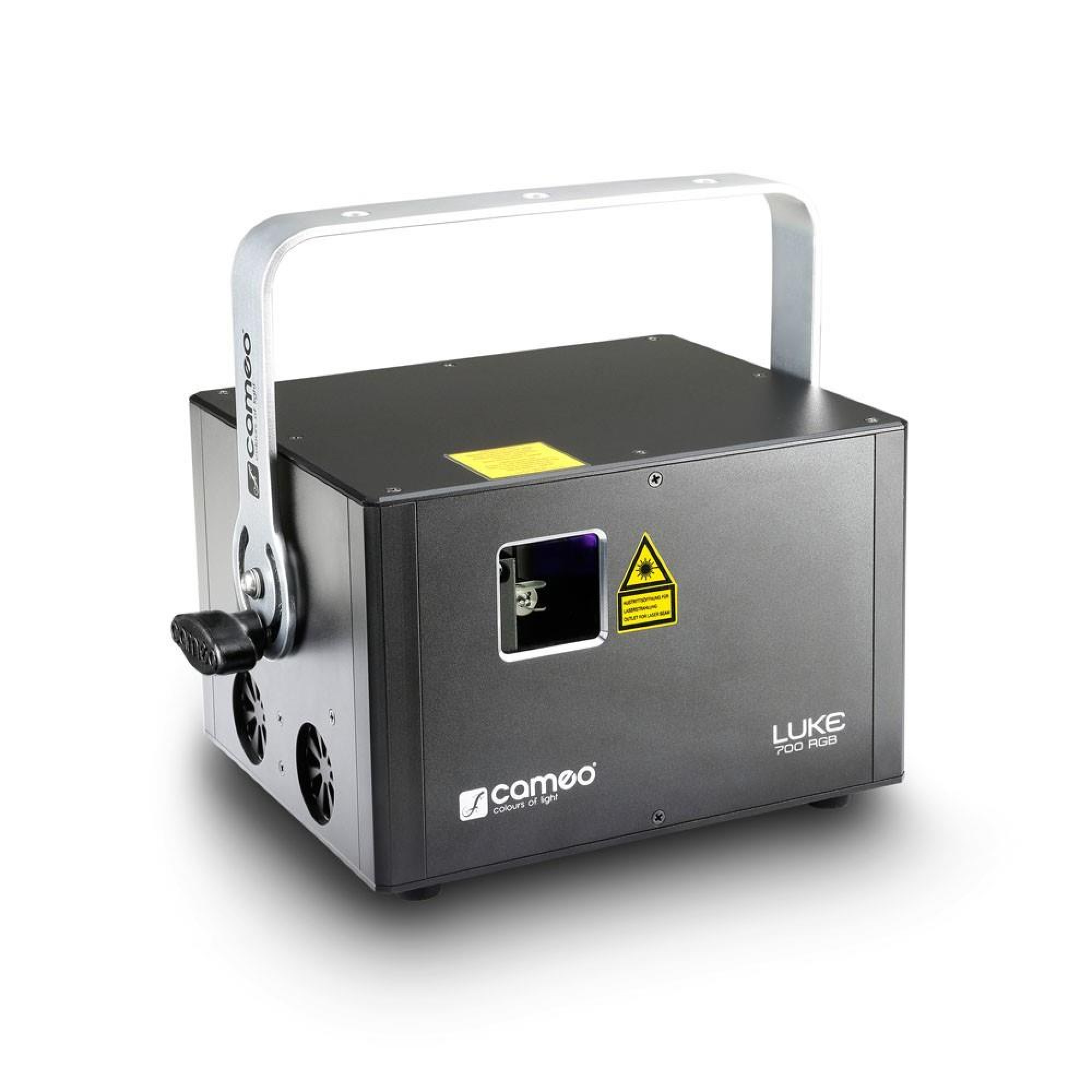

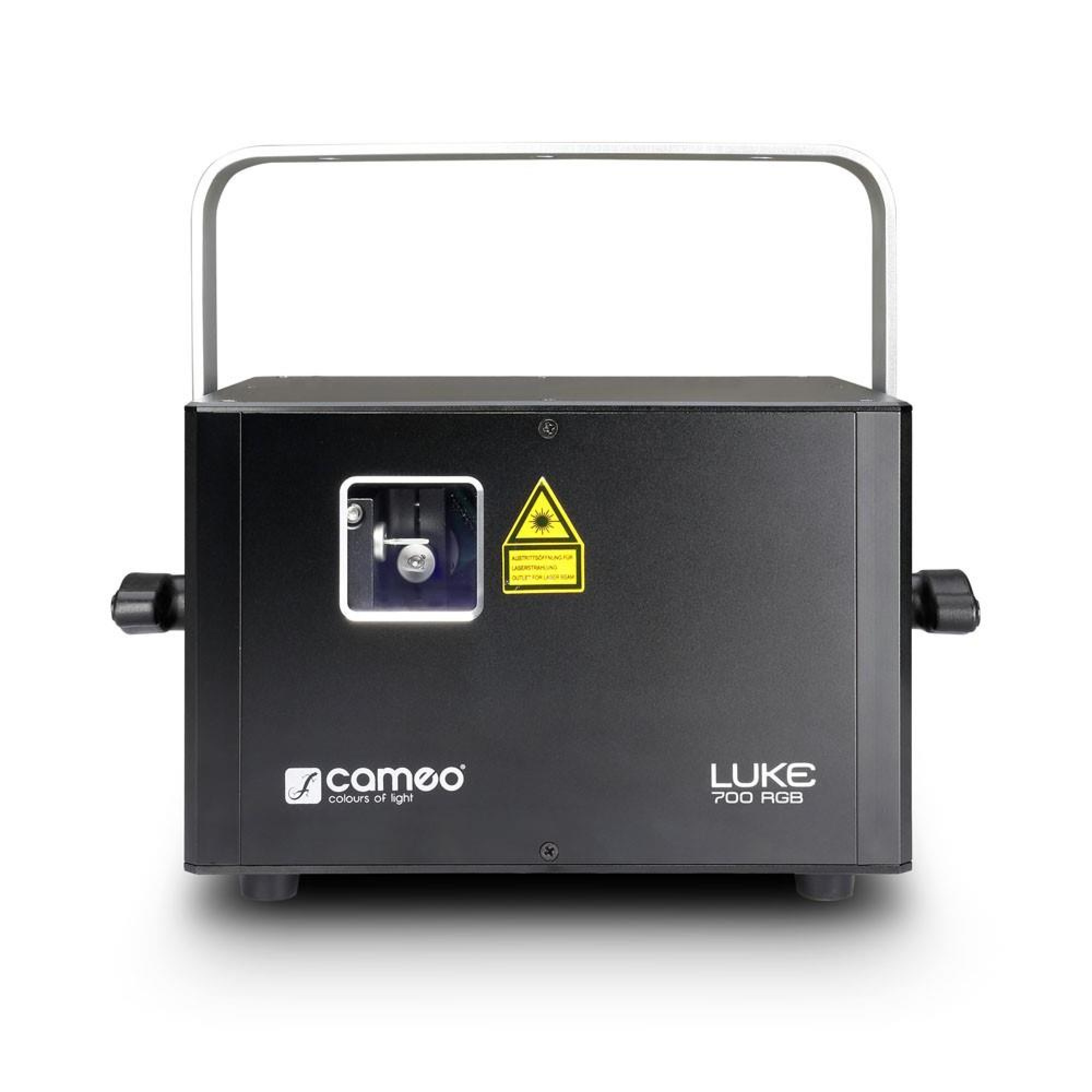

CAMEO LUKE 700

  • Projecting red, green and blue color mixes with 700 mW output power the LLUKE 700 RGB includes diode and DPSS lasers with 3 mm beam diameters and no more than 2 mrad divergence.

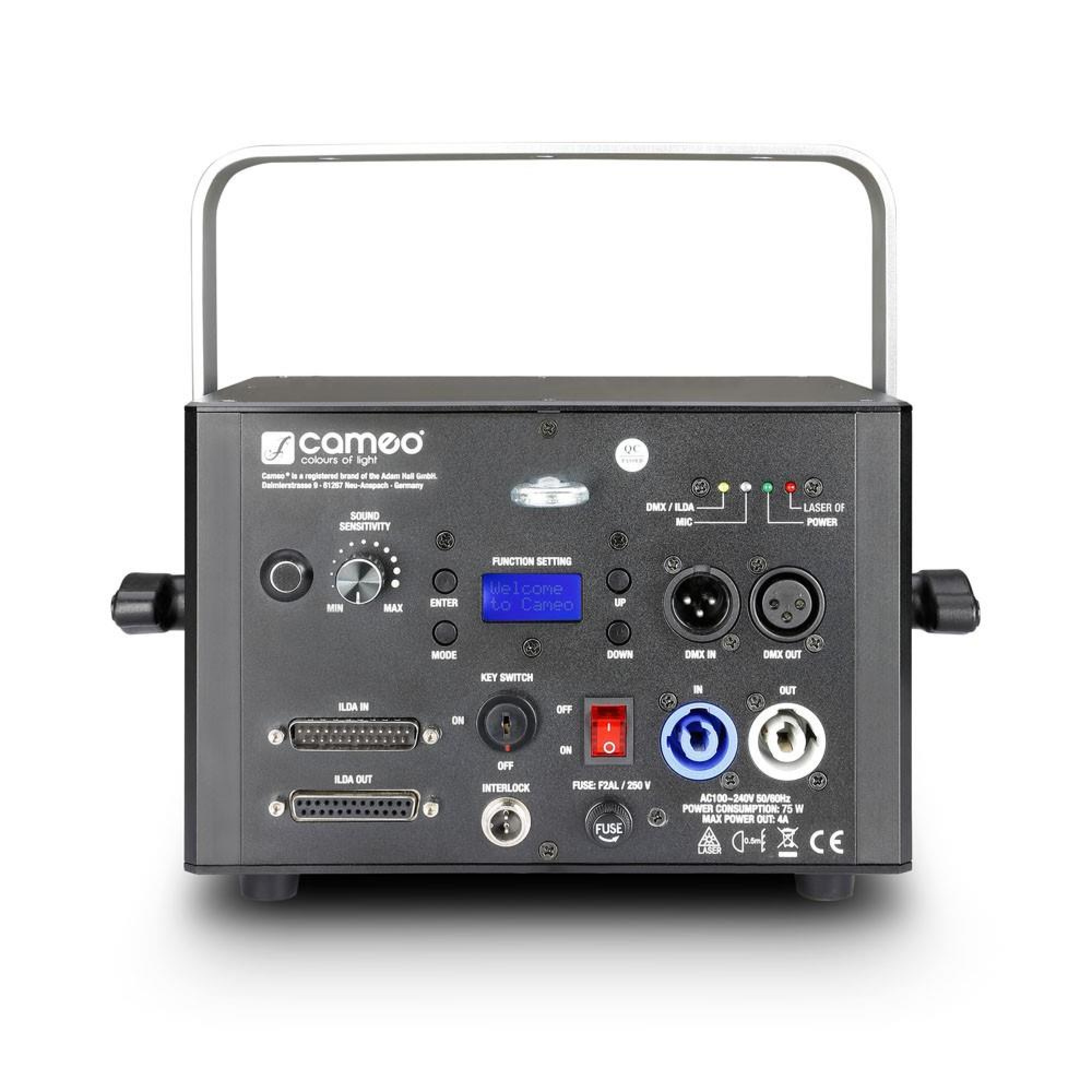

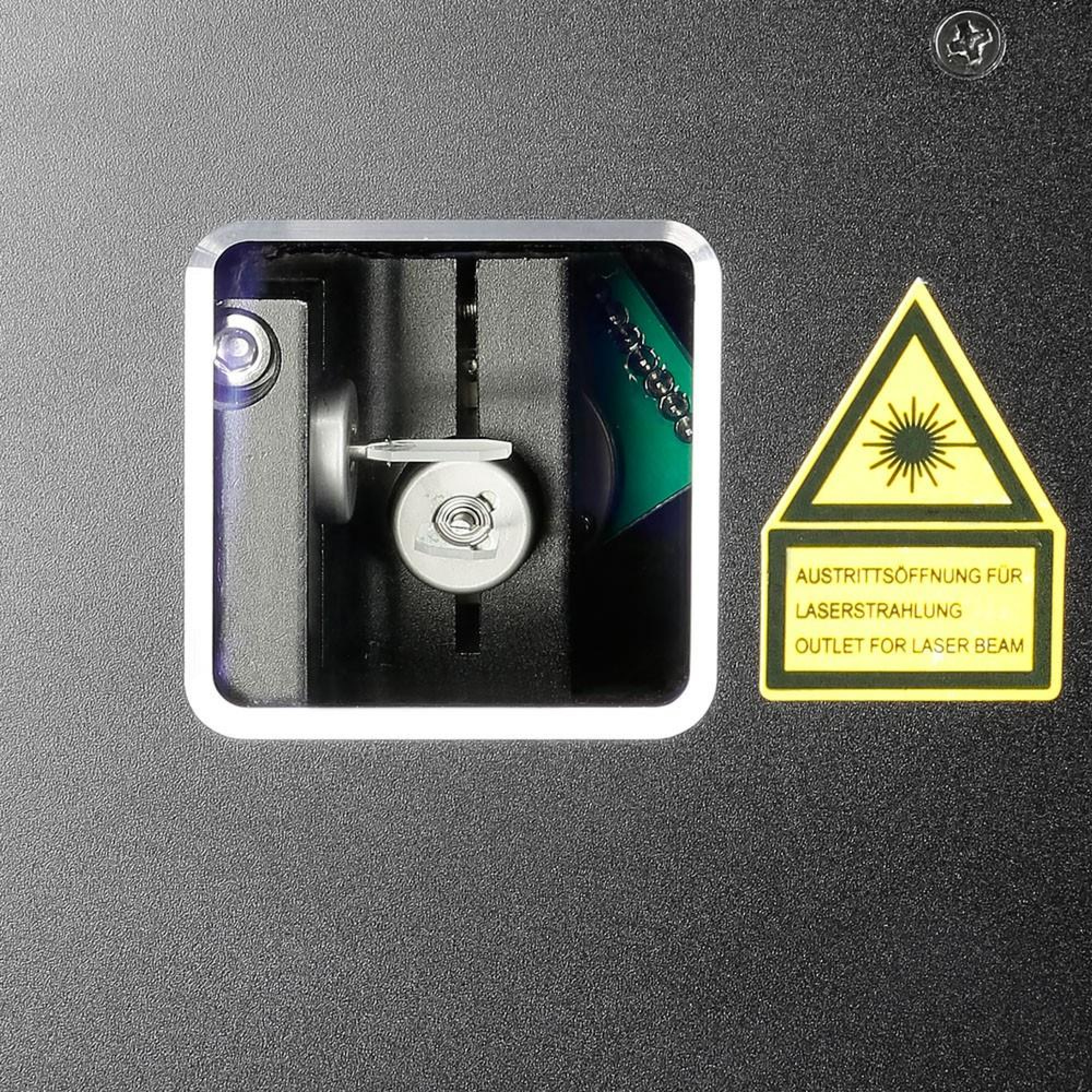

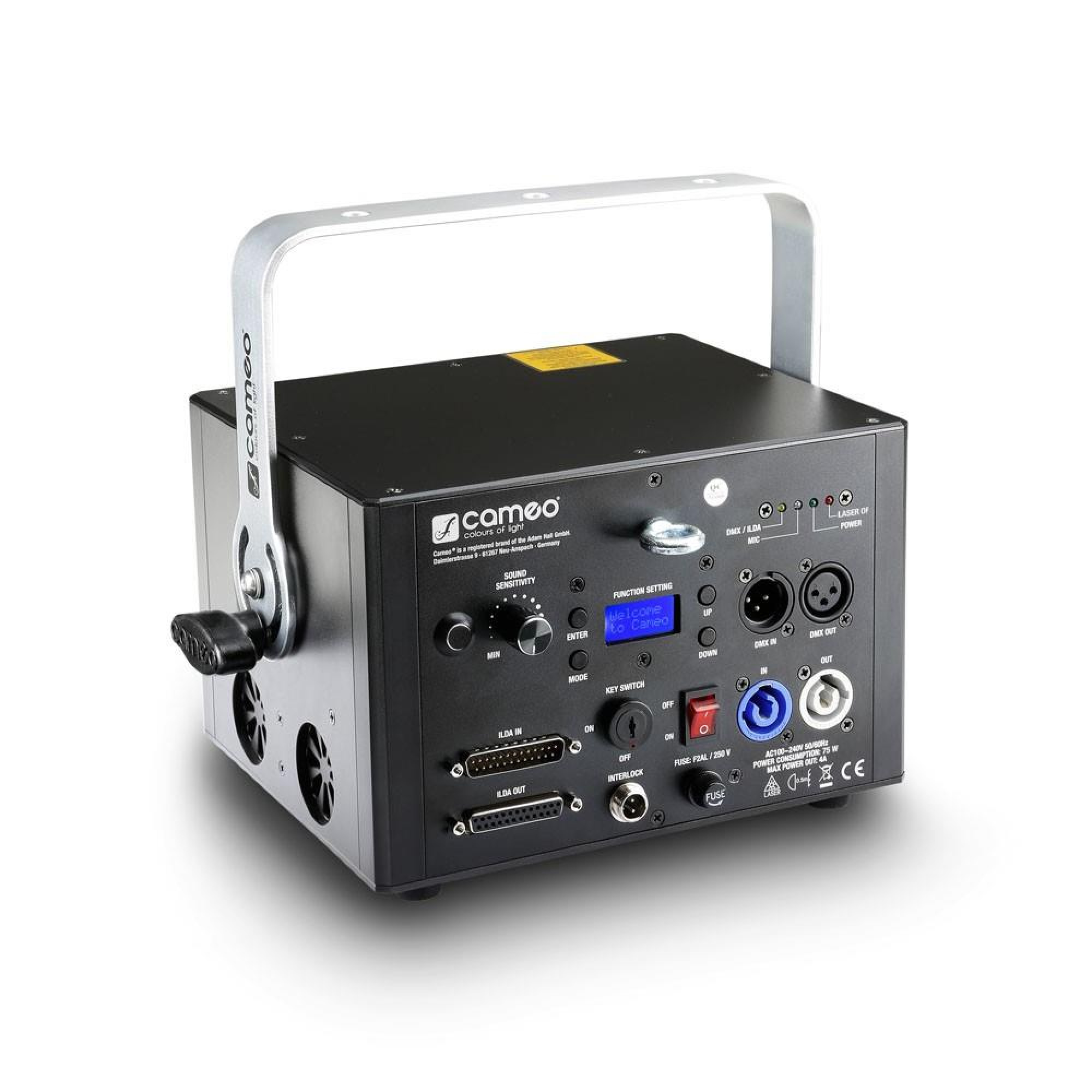

  • The Luke Series professional show lasers utilize an ingenious dual layer design to separate the optical components from the power supply and fan to vastly improve performance. They feature high speed 30 Kpps galvo scanners @ 8 degrees ILDA, a 60° scan angle and 128 pattern presets for exciting graphics projections with high visibility and pinpoint beams. The Luke laser lights include an ILDA interface on 25-pin D-sub connectors for computer control, 3-pin inputs and outputs for DMX control in 4-channel and 11-channel modes and a built-in microphone with adjustable sensitivity for sound control. In addition, they provide master, slave and standalone capability. The rugged high quality aluminium enclosure sports a key switch to prevent unauthorized use, a bright display with four function keys for manual operation and Neutrik powerCON mains connectors. A low noise fan keeps the compact units quiet and cool, and for audience safety the Luke Series laser lights are equipped with a “Scan Fail Safety” system.
  • Note: Sharing identical presets, the Luke lasers are compatible with the Ioda series for master and slave operation. With switchable inversion, the master and slave combo is capable of producing the most interesting and impressive laser show effects.


  • Product type: Laser
  • Total power: 700 mW
  • Colour spectrum: RGB
  • Wavelength: 447 nm , 532 nm , 650 nm
  • Beam Data: approx. 3 mm / 2 mrad divergence
  • Laser sources: DPSS , Laser diode
  • Laser Class: 4
  • Scanner: High performance galvoscanner, 30 kpps @ 8 degrees ILDA
  • Max. scan angle: 60 °
  • Operating modes: Auto programs , DMX 512 protocol , ILDA , sound control
  • DMX input: XLR 3-pin male
  • DMX output: XLR 3-pin female
  • ILDA input: 25-pin Sub-D male
  • ILDA output: 25-pin Sub-D female
  • DMX mode: 11-channel , 4-channel
  • Controls: Enter , Mode , Value Down , Value Up
  • Operating voltage: 100 V AC - 240 V AC, 50 - 60 Hz
  • Power consumption: 75 W
  • Power connector: Neutrik PowerCon
  • Housing material: Aluminum
  • Cabinet colour: Black
  • Width: 215 mm
  • Height: 157 mm
  • Depth: 225 mm
  • Weight: 5,5 kg
