MONACOR PA-306

MONACOR PA-306
MONACOR PA-306
MONACOR PA-306
MONACOR PA-306
MONACOR PA-306
MONACOR PA-306
PA-306
Mono PA mixing amplifier
  • 1 x 60 W
  • Silent operation due to fanless cooling concept
  • 3 microphone inputs, one of which is a balanced input
  • Mic 1/line 1 with adjustable input sensitivity, priority circuit and adjustable automatic talkover
  • 2 aux inputs
  • 1 telephone input for telephone systems with audio output
  • Speaker outputs via screw terminals
  • 1 line output
  • Input and output level controls
  • 2-way tone control for the output
  • 48 V phantom power for channel 1, can be activated as required
  • 482 mm (19") rack installation with supplied mounting brackets

Technical specifications PA-306
PA-306
  • Peak output power: 80 W
  • Power rating: 60 W
  • Channels: 1
Inputs:
  • 6 mV/600 Ω (mic),
  • 310 mV/10 kΩ (aux),
  • 1 V/10 kΩ (telephone)

  • Frequency range: 50-16,000 Hz
  • Equalizer bass: ±10 dB/100 Hz
  • Equalizer treble: ±10 dB/10 kHz
S/N ratio:
  • 66 dB (mic)
  • 80 dB (aux)

  • THD: < 0.5%
  • Phantom power: 48 V
  • Mains voltage: ~ 230 V
  • Mains frequency: 50 Hz
  • Power consumption, operation: 250 VA
  • Admiss. ambient temp.: 0-40 °C
  • Width: 430 mm
  • Height: 88 mm
  • Depth: 335 mm
  • Rack spaces, RS: 2
  • Weight: 6.7 kg

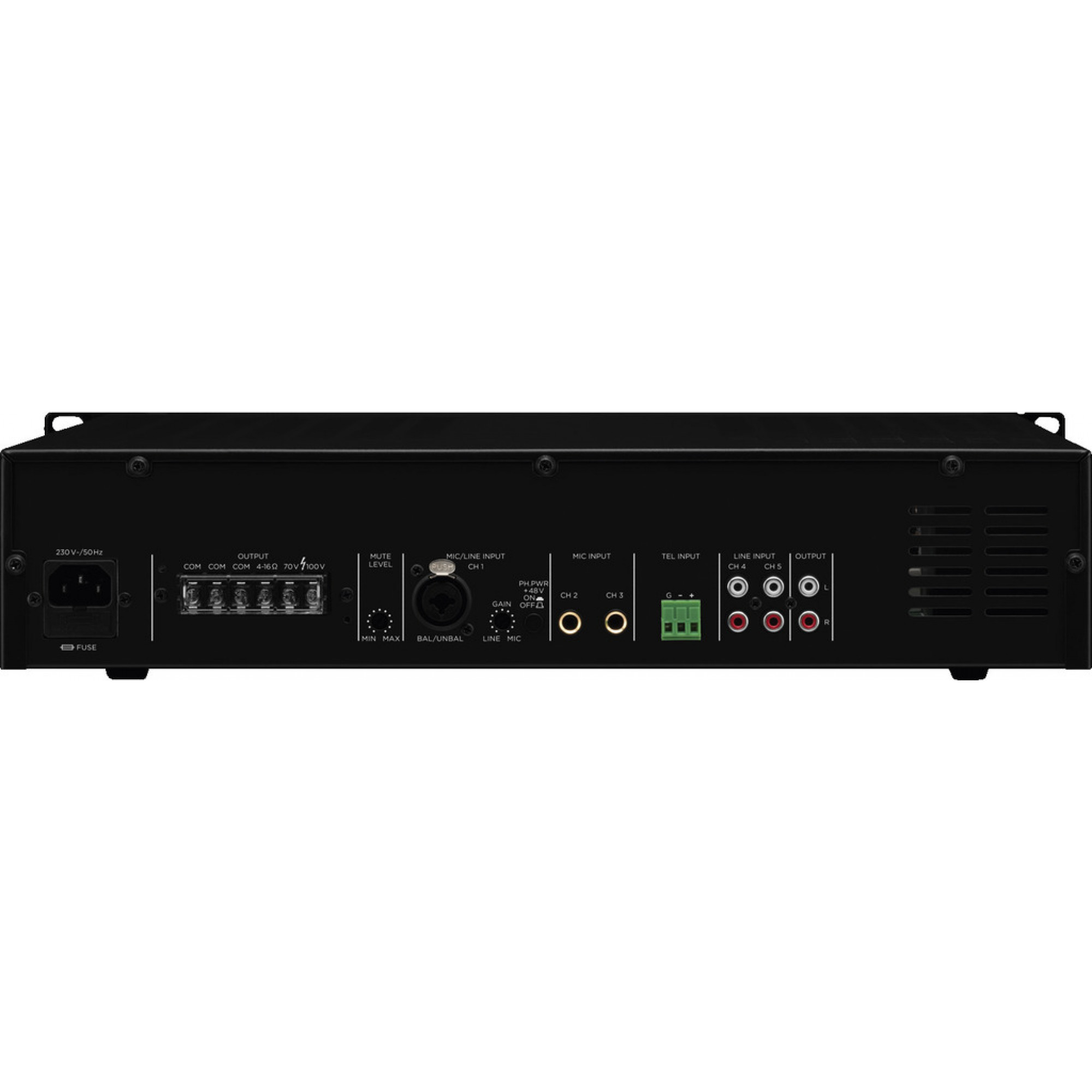

Connections:
  • 1 x 6.3mm/XLR (combo),
  • 1 x 6.3 mm jack (mic1),
  • 2 x 6.3 mm jack (mic 2-3),
  • 2 x RCA L/R (aux 1-2),
  • Screw terminals (telephone),
  • 1 x RCA L/R (line out)
Pastiprinātāji
100 V Jā
Jauda (max), W 80
Jauda, W 60
Kanālu skaits 1
Izeju skaits 1
Ieeju skaits 5
