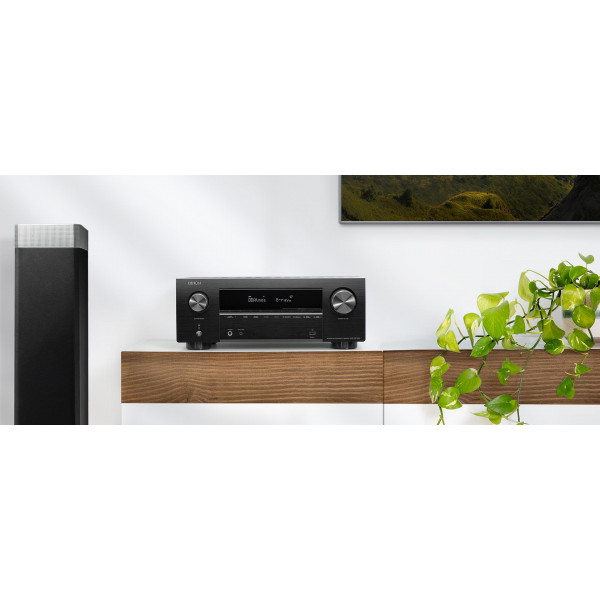

AVR-X2700H
This 7.2ch 8K AV Receiver with 150W per channel fully supports Dolby Atmos, DTS:X, as well as the latest HDMI specifications such as 8K/60Hz, 4K/120Hz** pass-through, HDR10+, Dynamic HDR, ALLM and more.
Technical Information
- Number of Power Amps: 7
- Power Output: 150 watts per channel (6 ohms, 1 kHz, THD:1%, 1 ch driven), 95 watts per channel (8 ohms, 20Hz–20kHz, THD:0.08%, 2 ch driven)
- Speaker Impedance: 4-16Ω/ohms
Preamplifier Section
- Input Sensitivity/ Impedance: 200 mV/47k kohms
- Frequency Response: 10Hz–100kHz – +1, -3 dB (Direct Mode)
- S/N Ratio: 100 dB (IHF-A weighted, Direct Mode)
FM Section
- Tuning Frequency Range: 87.5–107.9 MHz
AM Section
- Tuning Frequency Range: 520–1710 kHz
General
- Power Supply: 230V / 50/60Hz
- Power Consumption: 500W (Standby 0.1W, CEC standby 0.5W)
- Power Consumption (No Sound): 35W (ECO Mode On), 75W (ECO Mode Off)
- Maximum Dimensions (WxDxH)
- Antenna:Horizontal (mm): 434 x 341 x 167
- Antenna:Vertical (mm): 434 x 341 x 237
- w/o Antenna (mm): 434 x 330 x 167
Carton Dimensions
- (Packaging) (WxDxH) (mm): 520 x 429 x 243
- Weight (kg): 9.5
- Weight (Packaging) (kg): 11.5
Ports
In
- HDMI: x6
- 8K HDMI: x1
- Component (Video): x2
- Composite (Video): x2
- Phono: x1
- Analogue Audio: x4
- Digital Optical: x2
- USB Front: x1
Out
- HDMI Monitor (1x eARC): x2
- 8K HDMI: x2
- Component (Video): x1
- Composite Monitor: x1
- Audio Pre-out (SW): 0.2 ch
- Zone 2 (pre-out and speaker assignable): x1
- Headphones: x1
- Other
- Ethernet: x1
- Microphone Port: x1
- FM/AM Tuner Antenna: x1
AV Recivers | |
Channels | 7.2 / 5.1.2 |
Channel power, W | 150 |
Dolby Atmos / DTS X | Yes |
Network | Yes |
