Yamaha RX-V6A Specs
Amplifier
- Channels: 7.2
- Power Output per Channel: 2-Channel Driven: 100 W at 8 Ohms / 20 Hz to 20 kHz / 0.06% THD
Audio Processing
- DTS Compatibility: DTS-HD Master Audio, DTS:X
- Dolby Compatibility: Dolby Atmos, Dolby Digital Plus, Dolby TrueHD
- Auro 3D Support: No
- Supported File Formats: 11.2 MHz DSD, AAC, AIFF, ALAC, FLAC, MP3, WMA
- DAC: 384 kHz / 32-Bit (BB PCM5102A)
Video
- HDR Compatibility: HDR10
- Pass-Through Support: 4K60p
- Upscaling: 4K UHD
- GUI: Yes
Connectivity

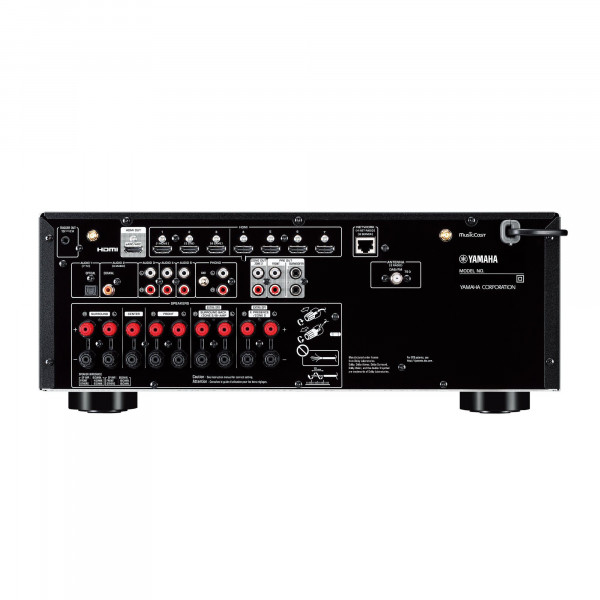

- Rear A/V Inputs: 7 x HDMI, 1 x Optical TOSLINK, 1 x Digital Coaxial, 3 x Stereo RCA, 1 x Stereo RCA (Phono) with Ground Screw
- Rear A/V Outputs: 1 x HDMI, 2 x RCA Subwoofer Pre-Out, 1 x Stereo RCA Zone 2 Pre-Out, 1 x Stereo RCA Pre-Out
- Front I/O: 1 x 1/4" / 6.35 mm Headphone Output: 1 x USB Type-A: 1 x 1/8" / 3.5 mm Setup Mic Input
- Other Rear I/O: 1 x RJ45 (Ethernet), 2 x Bluetooth/Wi-Fi Antenna Terminal Input, 1 x FM Antenna Terminal Input, 1 x 1/8" / 3.5 mm (12 V Trigger) Output
- Speaker Connectors :9 x Binding Post Pairs
- HDCP Support: Version 2.3
- Audio Return Channel (ARC): Yes, eARC
- HDMI CEC: Yes
- Media Card Slot: None
- A/B Speaker Selection: None
- Bi-Amp Capability: Yes
Wireless Connectivity
- Supported Audio Codecs: AAC, SBC
- Wireless Audio Protocols: AirPlay 2, MusicCast
Control
- Virtual Assistant Support: Amazon Alexa, Google Assistant
Tuner Section
- Tuner Type: AM, FM
Power
- Power Consumption: Standby: 0.1 W
Physical
- Dimensions (W x H x D): 17.1 x 9.6 x 14.9" / 43.4 x 24.4 x 37.8 cm (Antenna Up), 17.1 x 6.8 x 14.9" / 43.4 x 17.3 x 37.8 cm (Antenna Down)
- Weight: 21.6 lb / 9.8 kg
