Yamaha RX-V4A Specs
Amplifier
- Channels: 5.2
- Power Output per Channel: 2-Channel Driven: 80 W at 6 Ohms / 20 Hz to 20 kHz / 0.06% THD
Audio Processing
- DTS Compatibility: DTS-HD Master Audio
- Dolby Compatibility: Dolby Digital Plus, Dolby TrueHD
- Auro 3D Support: No
- Supported File Formats: 11.2 MHz DSD, AAC, AIFF, ALAC, FLAC, MP3, WMA
- DAC: 384 kHz / 32-Bit (BB PCM5101A)
Video
- HDR Compatibility: HDR10
- Pass-Through Support: 4K60p
- Upscaling: 4K UHD
- GUI: Yes
Connectivity

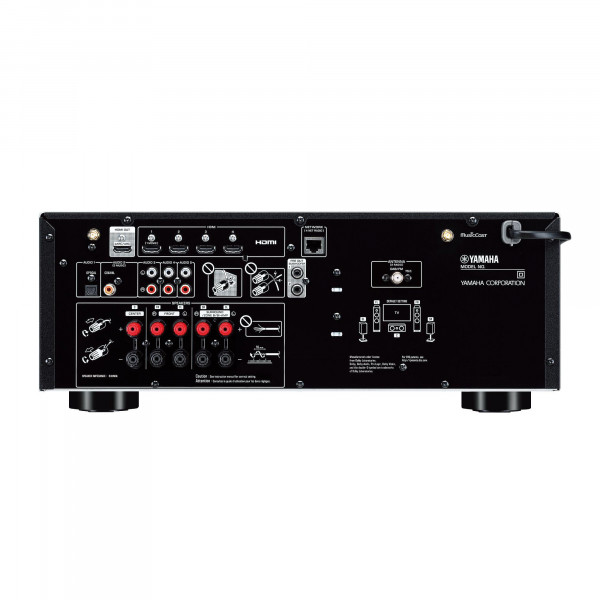

- Rear A/V Inputs: 4 x HDMI, 1 x Optical TOSLINK, 1 x Digital Coaxial, 3 x Stereo RCA
- Rear A/V Outputs: 1 x HDMI, 2 x RCA Subwoofer Pre-Out
- Front I/O: 1 x 1/4" / 6.35 mm Headphone Output, 1 x USB Type-A, 1 x 1/8" / 3.5 mm Setup Mic Input
- Other Rear I/O: 1 x RJ45 (Ethernet), 2 x Bluetooth/Wi-Fi Antenna Terminal Input, 1 x FM Antenna Terminal Input
- Speaker Connectors: 5 x Binding Post Pairs
- HDCP Support: Version 2.3
- Audio Return Channel (ARC): Yes, eARC
- HDMI CEC: Yes
- Media Card Slot: None
- A/B Speaker Selection: None
- Bi-Amp Capability: Yes
Wireless Connectivity
- Supported Audio Codecs: AAC, SBC
- Wireless Audio Protocols: AirPlay 2, MusicCast
Control
- Virtual Assistant Support: Amazon Alexa, Google Assistant
Tuner Section
- Tuner Type: AM, FM
Power
- Power Consumption: Standby: 0.1 W
Physical
- Dimensions (W x H x D): 17.1 x 9.6 x 14.9" / 43.4 x 24.4 x 37.8 cm (Antenna Up), 17.1 x 6.8 x 14.9" / 43.4 x 17.3 x 37.8 cm (Antenna Down)
- Weight: 19.4 lb / 8.8 kg
V4A - 5.2 ch AV receiver with CINEMA DSP 3D, HDMI™ 4-in/1-out, wireless surround.
- 5.2 Channel powerful surround sound
- Wi-Fi, Bluetooth®, AirPlay 2, Spotify Connect and MusicCast multi-room audio
- Dedicated gaming function(ALLM,VRR,QMS,QFT) via FW update
- Voice control with Alexa and Google Assistant devices. *Availability varies by region
- MusicCast Surround capable - add MusicCast 20 or MusicCast 50 speakers to create wireless surround sound
- HD Audio with CINEMA DSP 3D
- YPAO™ sound optimisation
