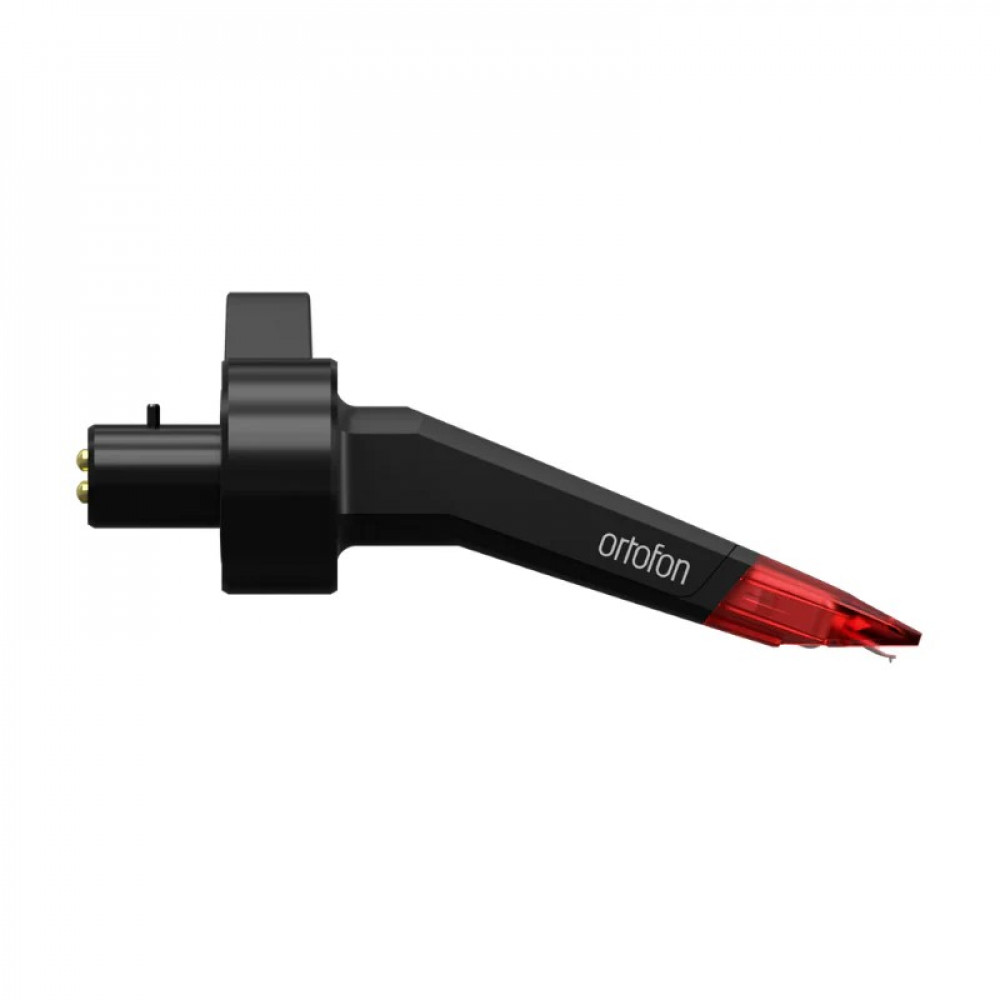

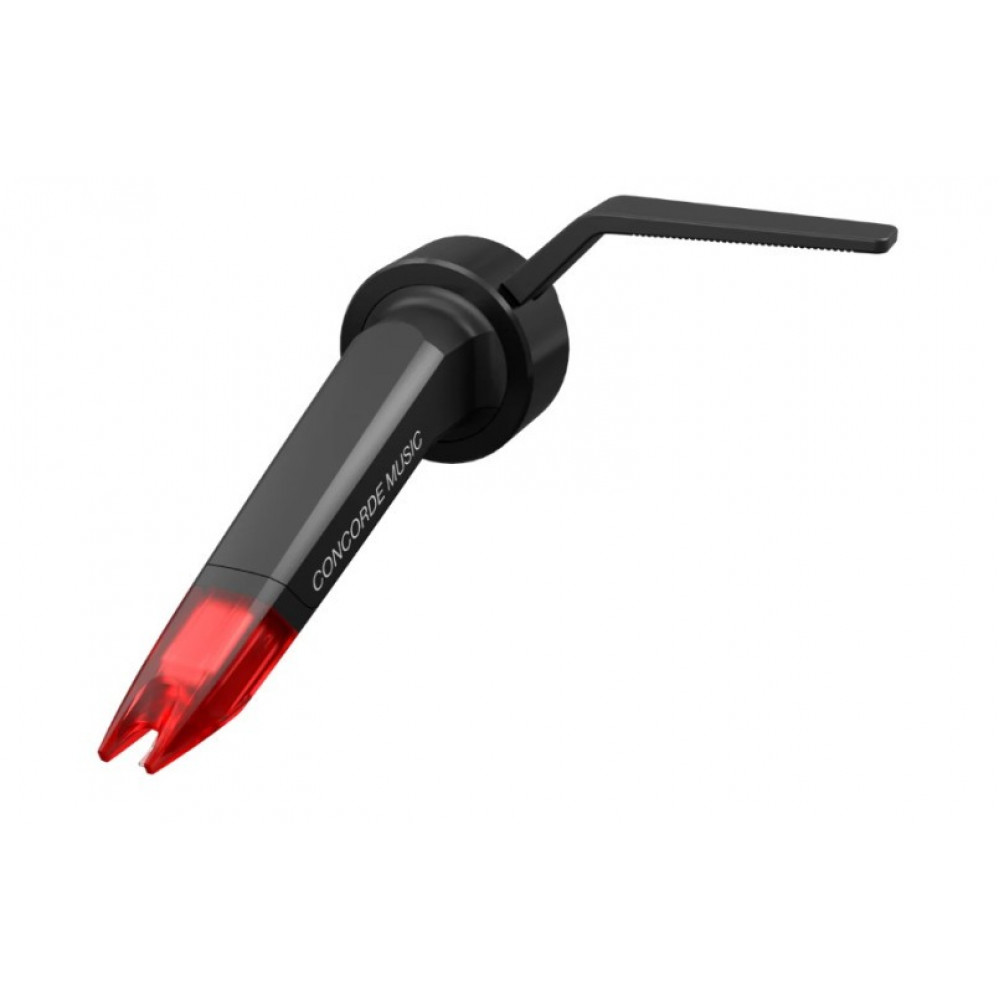

ORTOFON Concorde Music Red

Experience balanced and dynamic sound quality with the Concorde Music Red. The Concorde Music Red features an Elliptical stylus on an Aluminium cantilever and can be upgraded through the entire series to Concorde Music Black LVB 250, simply by replacing the stylus.

The Concorde Music series
Developed by music lovers, for music lovers, the Concorde Music HiFi cartridges blend premium performance with an iconic design. Concorde Music, not just a cartridge, but a dedication to the profound impact music has on our lives, turning every listening session into a captivating journey.

Installing a Concorde Music cartridge on a turntable is easy and straightforward, no tools required making it hassle free and convenient.

Included accessories:
The cartridge comes with a stylus brush and a rubber ring. The rubber ring helps prevent overtightening and ensures a secure fit between the cartridge and tonearm.

• Channel balance at 1 kHz
  1.5 dB
• Output voltage at 1 kHz, 5cm/sec
  6mV
• Channel separation at 1 kHz
  22 dB
• Frequency response 20 Hz - 20 kHz
  +3 / -1 dB
• Tracking ability at 315 Hz
  80 µm
• Compliance, dynamic, lateral
  15 µm/mN
• Cantilever material
  Aluminium
• Stylus type
  Elliptical diamond
• Stylus tip radius
  r/R 8/18 µm
• Coil system
  Quad-coils with split pole pins
• Tracking force, recommended
  1.8 g
• Tracking angle
  20°
• Cartridge colour
  Black/Red
• Cartridge weight
  18 g
• Recommended load resistance
  47 kΩ
• Recommended load capacitance
  150-300 pF
