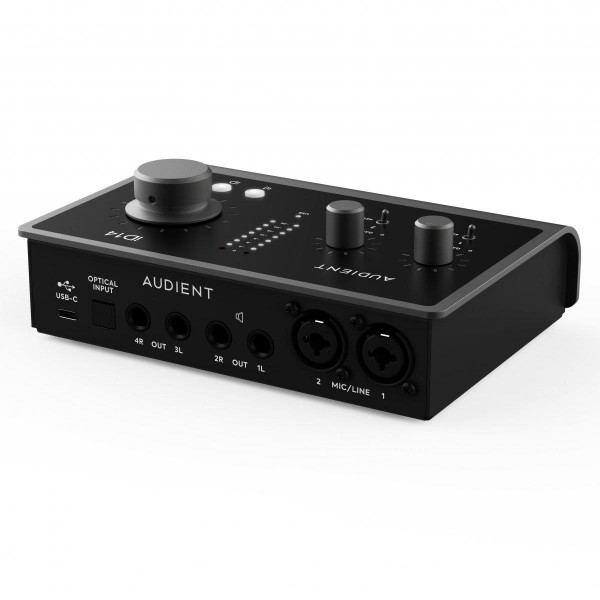

AUDIENT iD14 MK2

Specifications

D.I / Instrument Input

RANGE: 40dB

LINEUP: 12dBu = 0dBFS

THD+N @ 0dBu: 0.1%

SNR: 100dBu A-Weighted

FREQUENCY RESPONSE – MIN GAIN ±0.5dB 10Hz to 20kHz

1/4” TS JACK: Tip (Hot) & Sleeve (Shield)

Microphone preamplifier

GAIN RANGE: 58dB

LINEUP: 12dBu = 0dBFS

MIC MAX INPUT LEVEL: 12dBu

MAX INPUT LEVEL: 21dBu

INPUT IMPEDANCE (Mic): 2.8k

INPUT IMPEDANCE (Line): >8k

THD+N @ 0dBu 0.00170%

SNR: 101dBu A-Weighted

EIN: 129dB A-Weighted

CMRR @ 1k: >75dB

CROSSTALK: >-100dB

FREQUENCY RESPONSE – MIN GAIN ±0.5dB 10Hz to 40kHz

XLR COMBI FEMALE: Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield)

1/4” TRS JACK: Tip (Hot), Ring (Cold) & Sleeve (Shield)

Analogue to Digital Converter

THD+N @ -1dBFS: 0.001%

DYNAMIC RANGE: 120dB A-Weighted

CMRR: >80dB

FREQUENCY RESPONSE: ±0.5dB 10Hz to 40kHz

Line Outputs (DAC):

LINEUP: 12dBu = 0dBFS

THD+N @ -1dBFS: 0.0006%

DYNAMIC RANGE: 125.5dB A-Weighted

CROSSTALK: >120dB

FREQUENCY RESPONSE: ±0.1dB 10Hz to 40kHz

1/4” TRS JACK: Tip (Hot), Ring (Cold) & Sleeve (Shield)

Headphone Outputs:

LINEUP: 18.5dBu = 0dBFS

THD+N @ -1dBFS: 0.0009%

DYNAMIC RANGE: 125.5dB A-Weighted

CROSSTALK: >116dB

FREQUENCY RESPONSE: ±0.25dB 10Hz to 40kHz

MAXIMUM LEVEL @ 30R: 2.59V Peak, 1.827V RMS, 223mW

MAXIMUM LEVEL @ 62R: 4.18V Peak, 2.95V RMS, 280mW

MAXIMUM LEVEL @ 600R: 7.72V Peak, 5.46V RMS, 100mW

1/4” TRS JACK: Tip (Left), Ring (Right) & Sleeve (Shield)

USB-C High Speed:

BUS POWER:

MIN REQUIREMENT: 0.9A @ 5V >=USB 3.0 Port

MAX REQUIREMENT: 1.5A @ 5V USB-C: Provides higher headphone outputs levels

No. of INPUT CHANNELS: 10

No. of OUTPUT CHANNELS: 16

DSP MIXER LATENCY ROUND TRIP (in-to-out): 44.1kHz 0.65mS

48.0kHz 0.6mS

88.2kHz 0.33mS

96.0kHz 0.31mS
