MONACOR SA-230/SW

MONACOR SA-230/SW
MONACOR SA-230/SW
MONACOR SA-230/SW
MONACOR SA-230/SW
MONACOR SA-230/SW
MONACOR SA-230/SW

  • Universal stereo mixing amplifier, 50 W
  • Sing along! The clearly arranged user surface of the SA-230/SW makes listening to music and especially making music really enjoyable. One of the three stereo line sources at a time and three mono microphone sources can be mixed together without any problems. When combined with special karaoke CDs or DVDs, features like “one-touch karaoke” or “vocal partner” are available. An adjustable digital echo can be added to the microphone channels as an effect. The fanless cooling concept of the amplifier ensures a silent operation. The latest protective circuits provide protection against overload, overheating and short circuit.
  • Silent operation due to fanless cooling concept
  • 3 stereo line inputs
  • 3 mono microphone inputs on the front panel, each with gain control
  • Adjustable digital echo for the microphone inputs
  • Karaoke feature
  • Vocal partner feature
  • LEDs for indicating level control and active line inputs
  • Controls for volume, bass, treble, balance and digital echo
  • Stereo record output
  • 482 mm (19") rack installation, 1 RS, with supplied mounting brackets

Technical specifications SA-230/SW

  • Peak output power: 2 x 50 W
  • Power rating: 50 W
  • Power rating at 4 Ω: 2 x 25 W
  • Power rating at 8 Ω: 2 x 20 W
  • Channels: 2
Inputs:
  • 175 mV/8 kΩ (line)
  • 2.5 mV/3.5 kΩ (mic)

  • Frequency range: 20-20,000 Hz
  • Equalizer bass: ± 10 dB
  • Equalizer treble: ± 10 dB
  • S/N ratio: 62 dB
  • Mains voltage: ~ 230 V
  • Mains frequency: 50 Hz
  • Power consumption, operation: 150 VA
  • Admiss. ambient temp.: 0-40 °C
  • Width: 432 mm
  • Height: 45 mm
  • Depth: 275 mm
  • Rack spaces, RS: 1
  • Weight: 3.8 kg

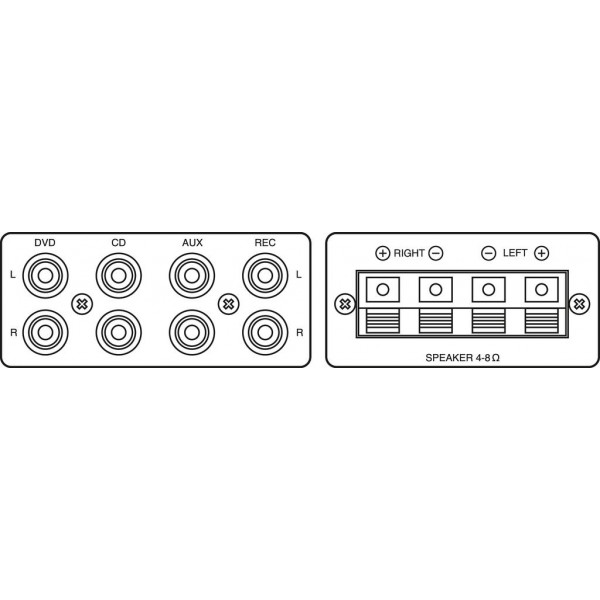

Connections:
  • 1 x RCA L/R (line),
  • 1 x 6.3 mm jack (mic),
  • 1 x RCA L/R (rec.),
  • 4 x spring-load. speaker term. (speakers)
Pastiprinātāji
Kanālu skaits 2
Jauda 4 Ω, W 2x 25
Jauda 8 Ω, W 2x 20
Izeju skaits 2
Ieeju skaits 6
