Name: CHAMSYS MagicQ Compact Connect
Brand: ChamSys
Price: 2599.00 EUR
Availability: OutOfStock

CHAMSYS MagicQ Compact Connect

Pieejamība: SAZINIES PAR PIEEJAMĪBU
Ražotājs: ChamSys
Modelis: PL261

0 atsauksmes - Uzrakstīt atsauksmi par produktu

2,599.00€

bez PVN: 2,147.93€

Daudzums

Pievienot grozam

Pievienot vēlmju sarakstam Salīdzināt šo produktu

Apraksts
Atsauksmes

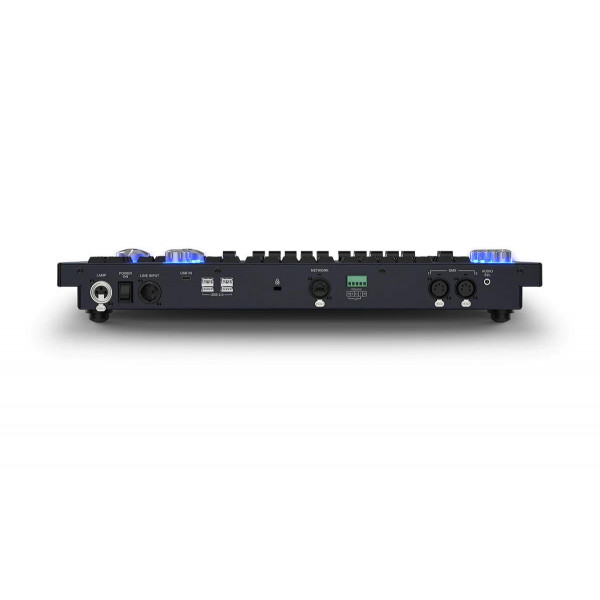

MagicQ Compact Connect

The MagicQ Compact Connect is a lightweight USB control surface that connects to your PC or Mac to control lighting, media, and LEDs.

Small enough to travel inside hand luggage, the portable Compact Connect is packed with powerful features. It has 2 direct DMX512 outputs and sends up to 64 universes of ArtNet and sACN directly from its onboard network port without the need for additional licenses or dongles. The design of the Compact Connect provides illuminated access to fixture parameters via 8 rotary encoders and live show control through 10 playback faders featuring Flash, Go and Select buttons as well as dedicated Grand Master and Crossfader for overall level control. An internal USB hub, audio input, 10Scene/Remote Input port and working light socket bring additional connectivity and convenience.

The Compact Connect is ideal for use by touring Lighting Designers or for installation into theatres, schools, clubs, studios and venues. This affordable solution offers quick tactile playback control in combination with the power of MagicQ software running on Windows, Linux or OSX.

Hardware Specifications:

Direct DMX Outputs: 2
Fader Playbacks: 10
Attribute Encoders: 8
USB Ports: 5 (4 USB-A output, 1 USB-C input)
Network Ports: 1
Audio Input: (1 channel, 7 band): Yes
10Scene Input: Yes
Kensington Security Lock Fixing: Yes
Working Light Port: Yes
Power Input, Neutrik powerCON TRUE1 110 to 240 VAC

Software Specifications:

Universes: 64
Max Number of DMX Channels: 32768
Max Number of Fixtures Supported: 32768
Max Number of Cues: 5000
Max Number of Cue Stacks: 2000
Max Number of Groups: 5000
Max Number of Palettes: 4096
Number of Media Server Layers Supported: 50 (each different content)
Supported on Windows (8.1 or higher), macOS (10.13 or higher) and Linux

Included Accessories:

USB A-C Cable: 1
Dual Colour Desk lights: 1
Dust Cover: 1
Neutrik powerCON TRUE1 Power Cable: 1

Boxed Weights and Dimensions:

Width: 630mm (24.8 inches)
Depth: 360mm (14.2 inches)
Height: 230mm (9.1 inches)
Weight: 5.5kg (12.1 lb)

Flight Cased Weights and Dimensions:

Width: 630mm (24.8 inches)
Depth: 360mm (14.2 inches)
Height: 230mm (9.1 inches)
Weight: 8.0kg (17.7 lb)

Console Weights and Dimensions:

Width: 522mm (20.5 inches)
Depth: 230mm (9 inches)
Height: 65mm (2.5 inches
Height (top of encoders): 78mm (3 inches)
Weight: 3.65kg (8 lb)
