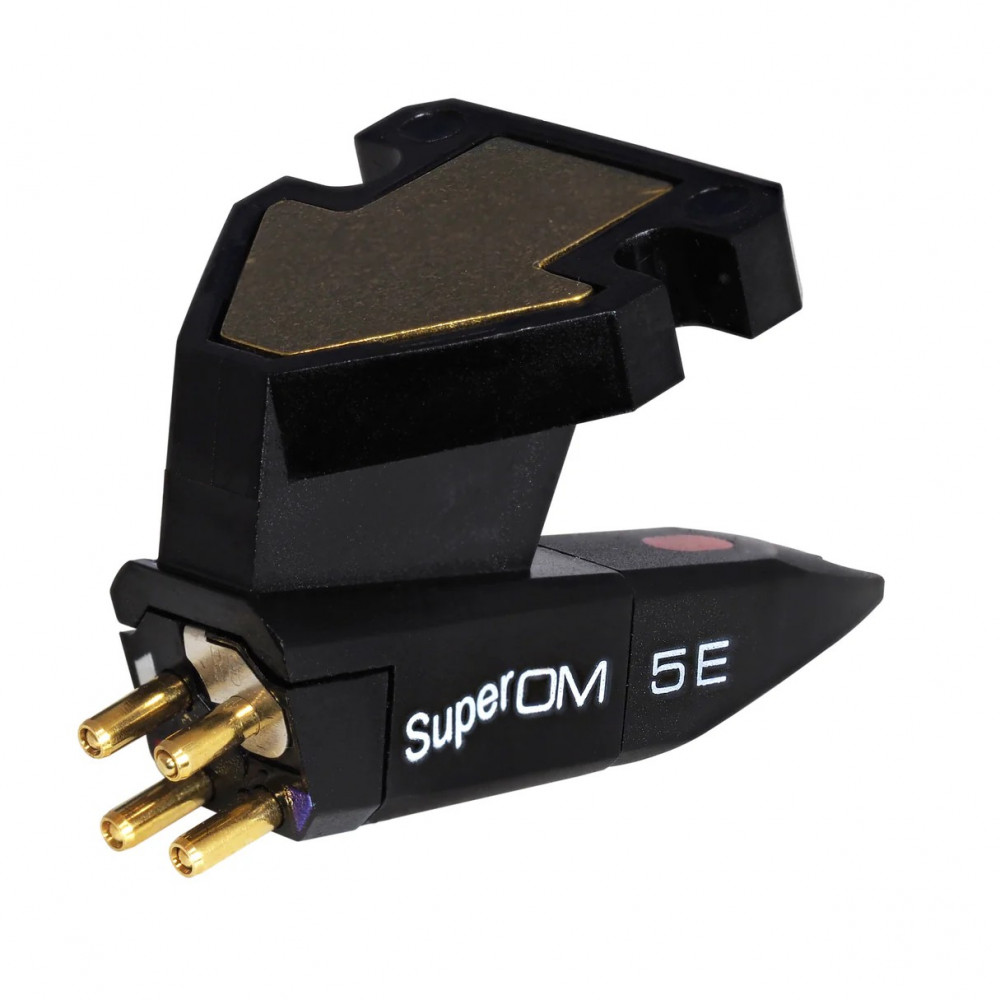

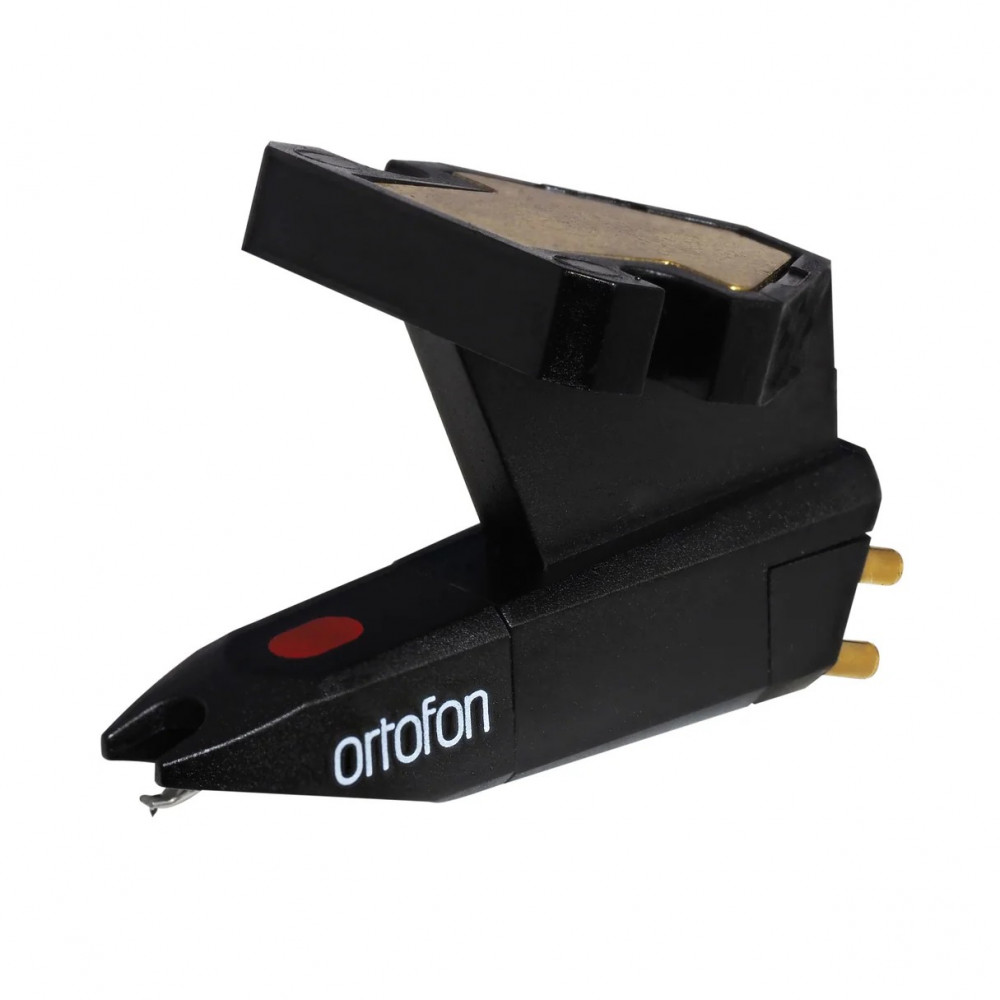

ORTOFON Super OM 5E

The Super OM 5E features improved lineraty, higher channel seperation, and an Elliptical stylus that provides balanced and distortion-free playback. The Elliptical diamonds are able to follow the groove oscillations more accurately than spherical diamonds due to their contoured shape. This results in better tracking and less distortion.

• Channel balance at 1 kHz
  1.5 dB
• Output voltage at 1 kHz, 5cm/sec
  4 mV
• Channel separation at 1 kHz
  22 dB
• Frequency response 20 Hz - 20 kHz
  20-22.000 Hz + 3 / -3
• Tracking ability at 315 Hz
  60 µm
• Compliance, dynamic, lateral
  20 µm/mN
• Stylus type
  Elliptical
• Stylus tip radius
  r/R 8/18 µm
• Tracking force range
  1.5-2.0 g (15-20 mN)
• Tracking force, recommended
  1.75 g (17.5 mN)
• Tracking angle
  20°
• Internal impedance, DC resistance
  1 kOhm
• Cartridge colour
  Black/Black
• Cartridge weight
  incl. extra weight 5 g, excl. extra weight 2.5 g
• Recommended load resistance
  47 kOhm
• Internal inductance
  580 mH
• Recommended load capacitance
  200-500 pF
