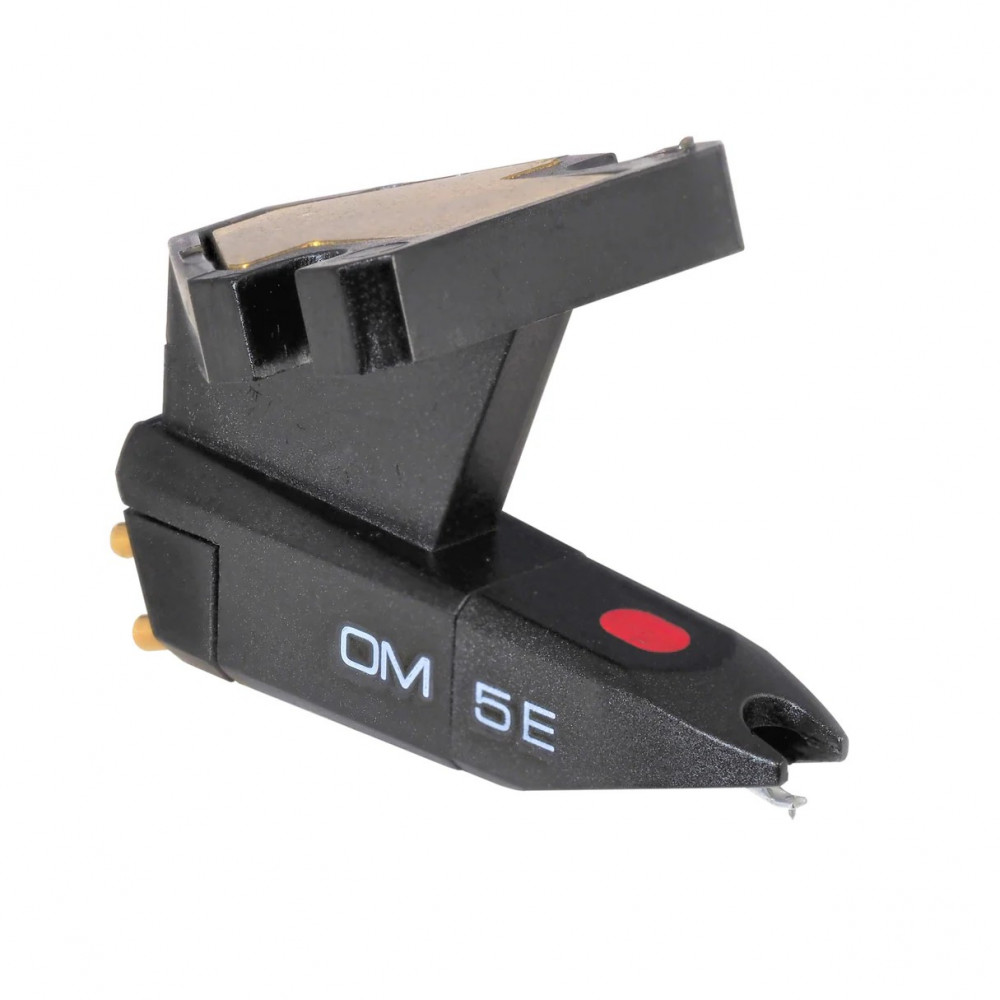

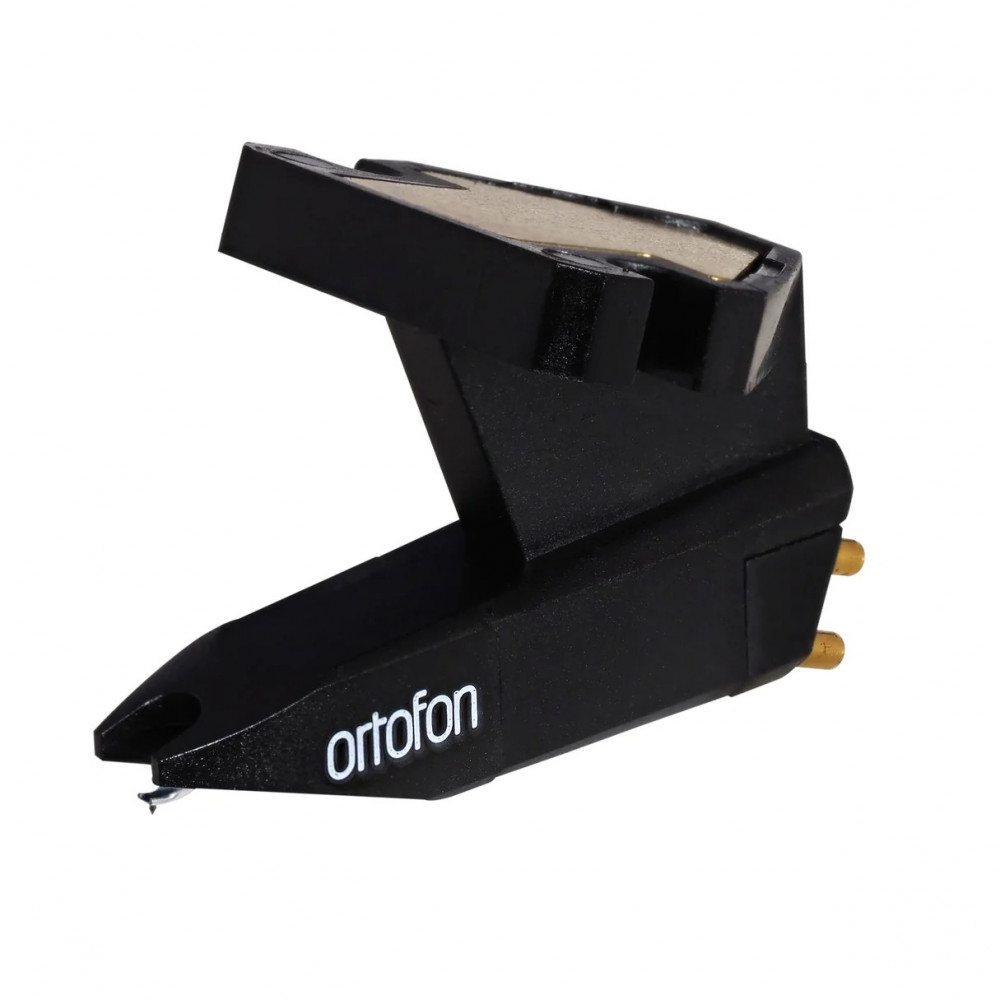

ORTOFON OM 5E

OM 5E features Elliptical stylus that provides balanced and distortion-free playback.

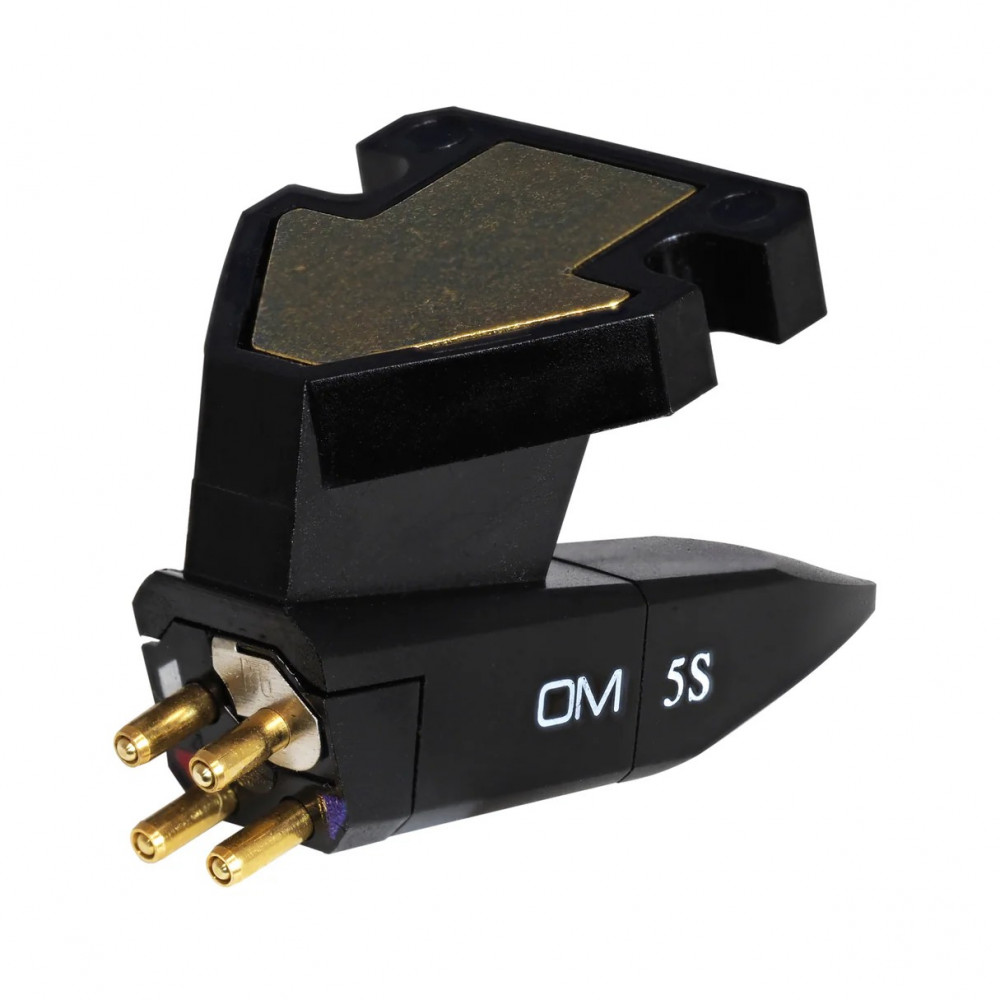

If your tonearm has a standard headshell or a cartridge mount, then step up to optimal sound reproduction with OMs. A glance at any one of these cartridges will reveal Ortofon's answer to perfect tonearm matching. Ingeniously tucked into the top of the mounting bracket is a tiny, removable weight-plate.

If your tonearm is a standard tonearm, just leave the weight-plate. If your tonearm is one of the low mass types, then simply remove the weight. The mass of your OM cartridge is now a mere 2.5g.

• Channel balance at 1 kHz
  2 dB
• Output voltage at 1 kHz, 5cm/sec
  4 mV
• Channel separation at 1 kHz
  22 dB
• Frequency response 20 Hz - 20 kHz
  20-20.000 Hz + 3 / -3
• Tracking ability at 315 Hz
  60 µm
• Compliance, dynamic, lateral
  20 µm/mN
• Stylus type
  Elliptical
• Stylus tip radius
  r/R 8/18 µm
• Tracking force, recommended
  1.8 g
• Tracking angle
  20°
• Internal impedance, DC resistance
  750 Ohm
• Cartridge colour
  Black/Black
• Cartridge weight
  incl. extra weight 5 g, excl. extra weight 2.5 g
• Recommended load resistance
  47 kOhm
• Internal inductance
  450 mH
• Recommended load capacitance
  200-500 pF
