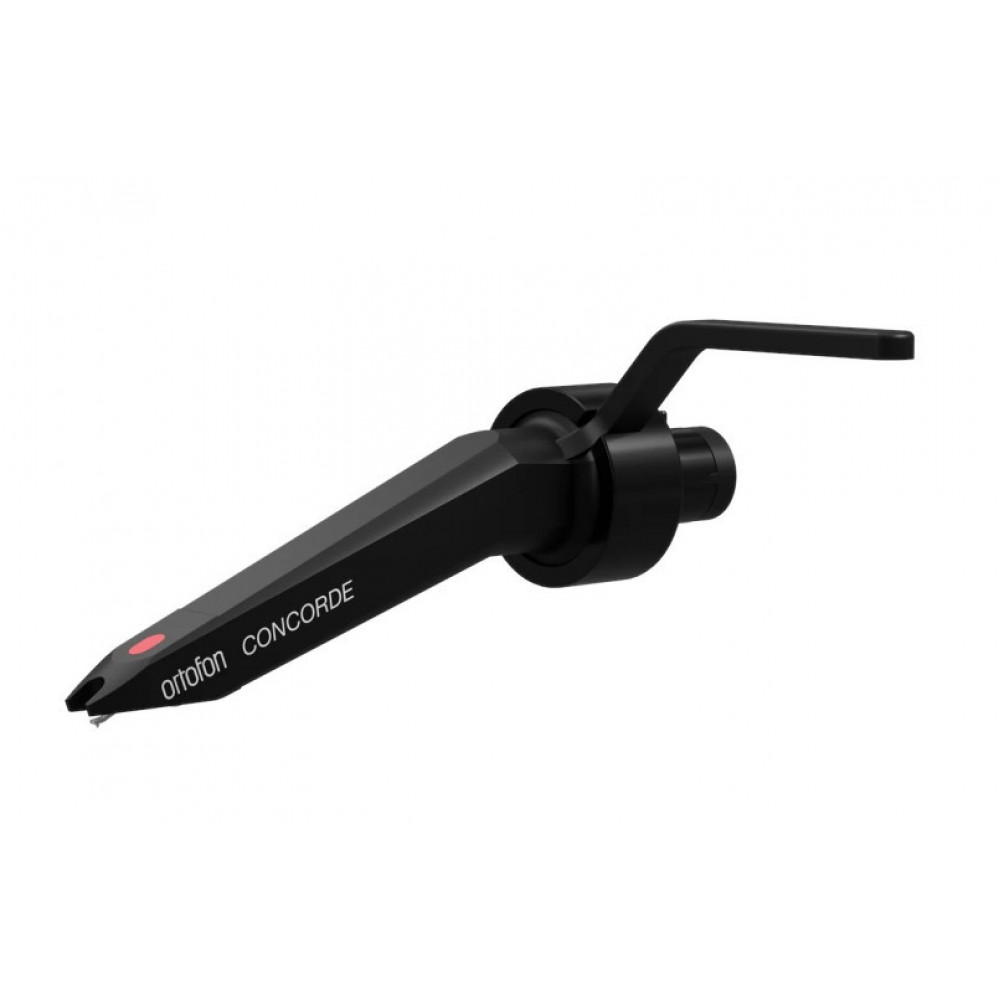

ORTOFON Concorde 5E

The Concorde 5E delivers a refined and detailed listening experience, making it an ideal choice for those who appreciate high-fidelity sound without unnecessary complexity. Equipped with an elliptical diamond stylus, it ensures a premium groove contact, reduced distortion and reveals fine nuances in your records.

•  No-tool installation – easily mounts onto the tonearm for a quick setup.

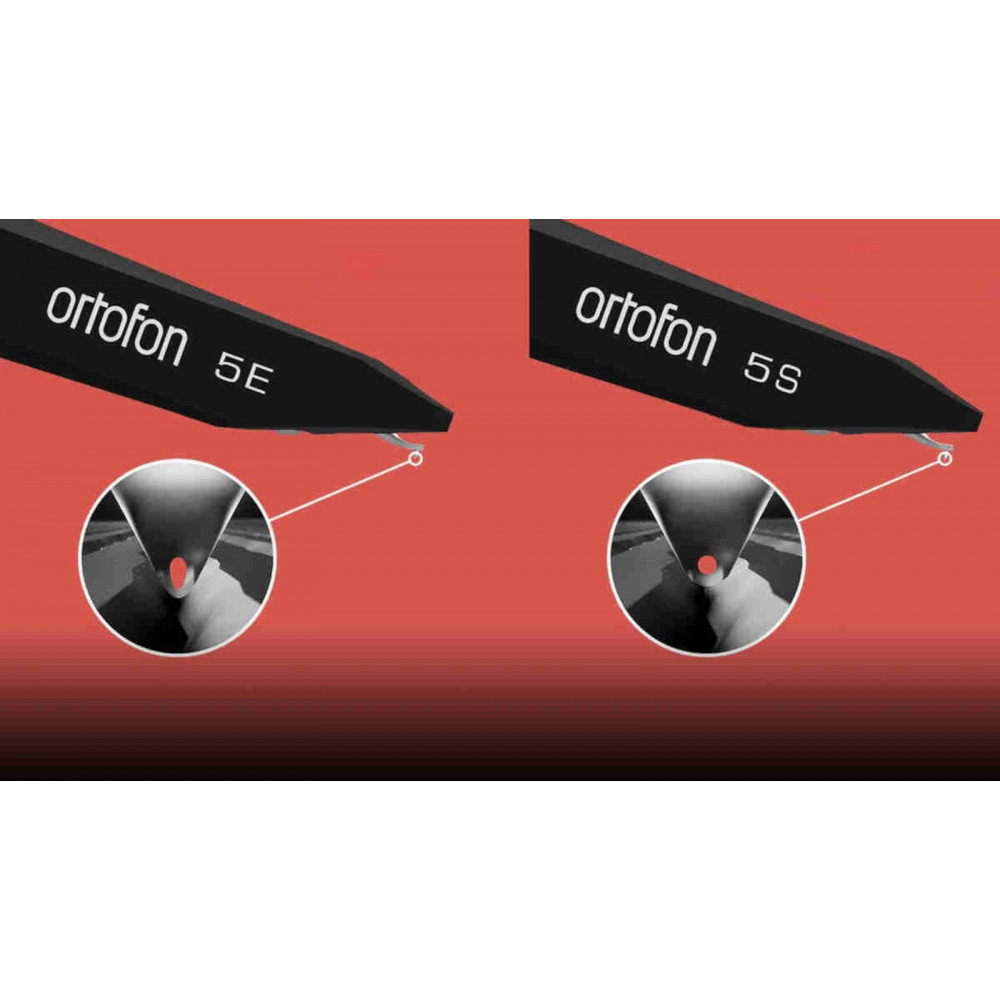

•  Elliptical stylus – improves tracking and enhances detail in the music.
•  Balanced and natural sound – perfect for music lovers seeking clarity and precision.

Included accessories:
The cartridge comes with a stylus brush and a rubber ring. The rubber ring helps prevent overtightening and ensures a secure fit between the cartridge and tonearm.

• Channel balance at 1 kHz
  < 2 dB
• Output voltage at 1 kHz, 5cm/sec
  4 mV
• Channel separation at 1 kHz
  > 20 dB
• Frequency response 20 Hz - 20 kHz
  +/- 3 dB
• Compliance, dynamic, lateral
  20 µm/mN
• Cantilever material
  Aluminium
• Stylus type
  Elliptical Diamond
• Stylus tip radius
  r/R 8/18 µm
• Tracking force, recommended
  1.8 grams
• Internal impedance, DC resistance
  750 Ω
• Coil wire material
  OFC
• Cartridge colour
  Black
• Cartridge weight
  18.5 grams
• Recommended load resistance
  47 kΩ
