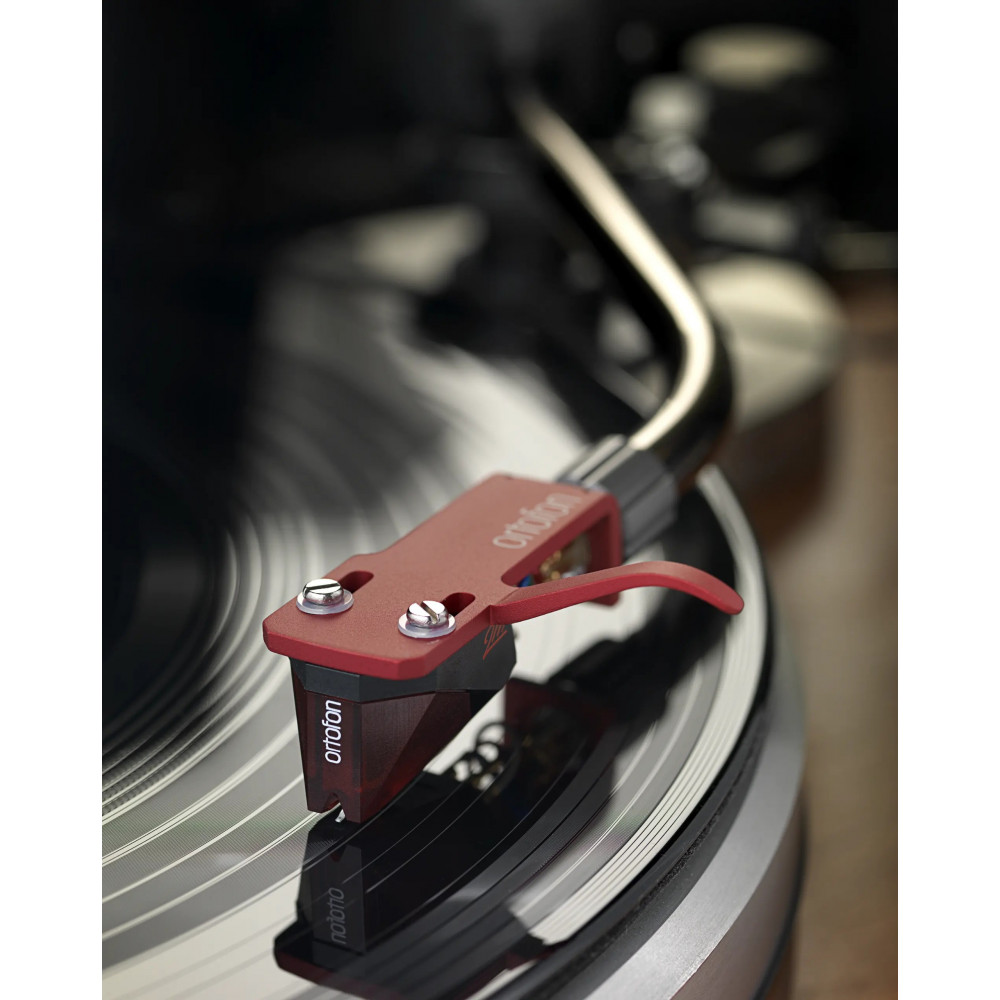

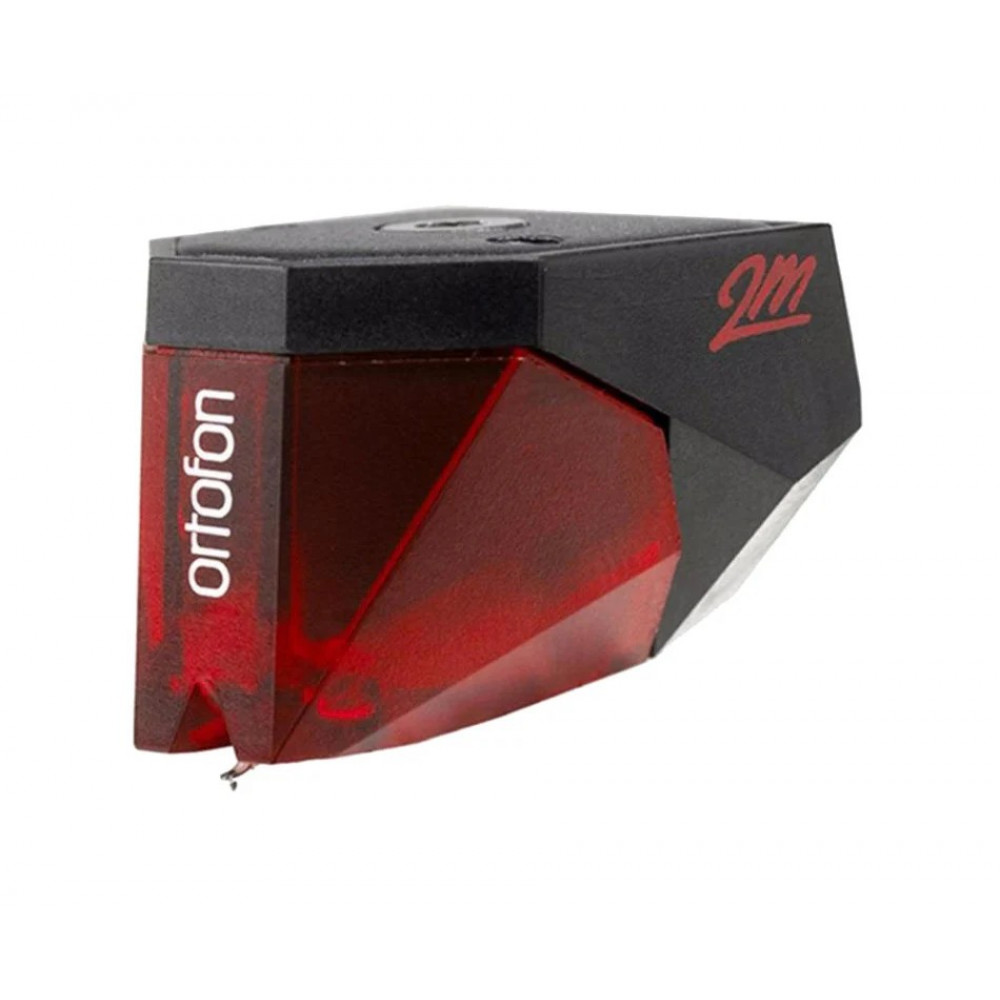

ORTOFON 2M Red

The 2M Series is designed for easy cartridge mounting, weight, and size to fit the most common turntables today. The 2M Series are available in four different product variant configurations: the 2M for most common turntables on the market; the 2M Premounted, for customers who wish direct and easy mounting and replacement on their S-shaped tonearm; the 2M Verso, for bottom mount headshells; and the 2MR, which is designed cartridge housing tailored for turntables and tonearms like Rega, matching their requirement for low-form factor cartridges.

• Channel balance at 1 kHz
  1.5 dB
• Output voltage at 1 kHz, 5cm/sec
  5.5 mV
• Channel separation at 1 kHz
  22 dB
• Frequency response 20 Hz - 20 kHz
  + 3 / - 1 dB
• Tracking ability at 315 Hz
  70 µm
• Compliance, dynamic, lateral
  20 µm/mN
• Cantilever material
  Aluminium
• Stylus type
  Elliptical
• Stylus tip radius
  r/R 8/18 µm
• Tracking force range
  1.6-2.0 g (16-20 mN)
• Tracking force, recommended
  1.8 g (18 mN)
• Tracking angle
  20°
• Internal impedance, DC resistance
  1.3 kOhm
• Cartridge colour
  Black/Red
• Cartridge weight
  7.2
• Premounted cartridge weight
  16.7 g
• Recommended load resistance
  47 kOhm
• Internal inductance
  700 mH
• Recommended load capacitance
  150-300 pF
