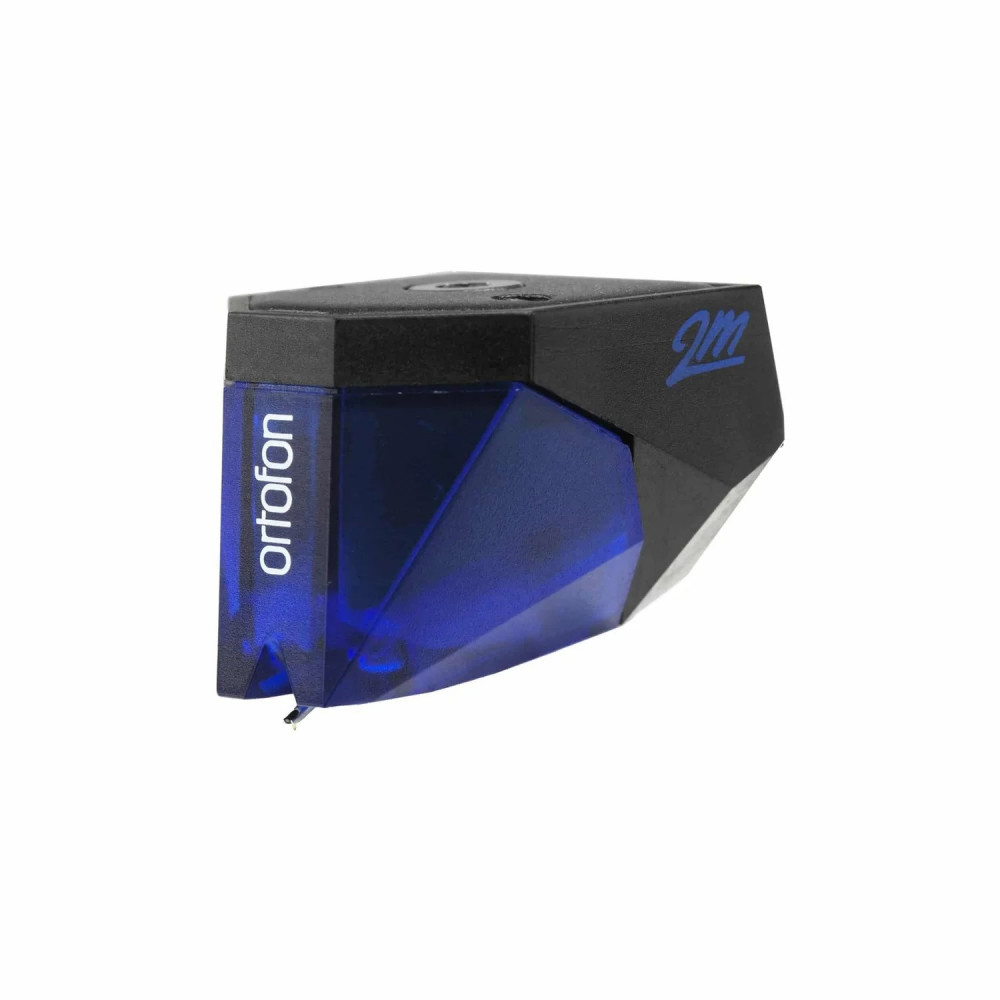

ORTOFON 2M Blue

The goal for any cartridge should be to reproduce the sound as close to the artist's vision as possible, and the 2M blue takes you further on this journey of authenticity. With the 2M Blue, you get serious about listening to vinyl.

High level of sonic accuracy

• Channel balance at 1 kHz
  1.5 dB
• Output voltage at 1 kHz, 5cm/sec
  5.5 mV
• Channel separation at 1 kHz
  25 dB
• Frequency response 20 Hz - 20 kHz
  20-20.000 Hz + 2 / - 1 dB
• Tracking ability at 315 Hz
  80 µm
• Compliance, dynamic, lateral
  20 µm/mN
• Cantilever material
  Aluminium
• Stylus type
  Nude Elliptical
• Stylus tip radius
  r/R 8/18 µm
• Tracking force range
  1.6-2.0 g (16-20 mN)
• Tracking force, recommended
  1.8 g (18 mN)
• Tracking angle
  20°
• Internal impedance, DC resistance
  1.3 kOhm
• Cartridge colour
  Black/Blue
• Cartridge weight
  7.2 g
• Premounted cartridge weight
  16.7 g
• Recommended load resistance
  47 kOhm
• Internal inductance
  700 mH
• Stylus colour
  Blue
• Recommended load capacitance
  150-300 pF
