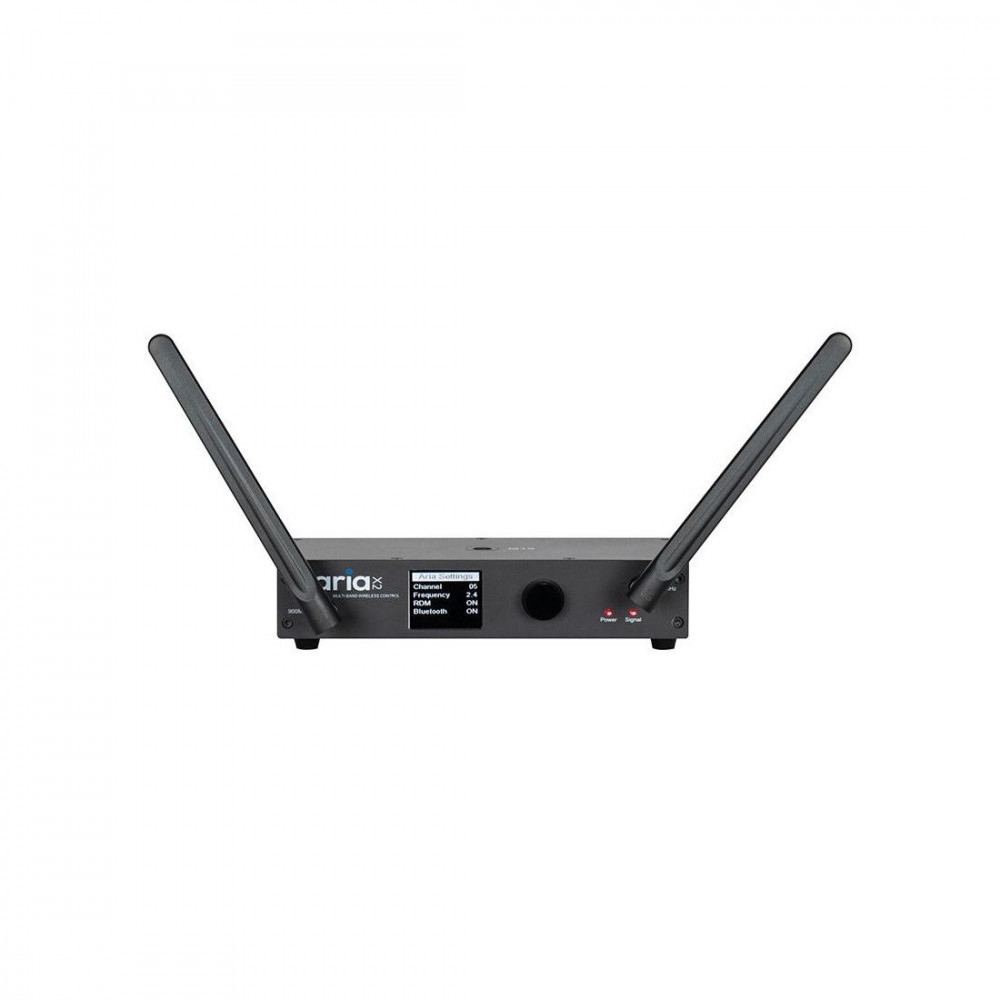

ADJ Aria X2 Transceiver

ADJ Aria X2 Transceiver
ADJ Aria X2 Transceiver
ADJ Aria X2 Transceiver
ADJ Aria X2 Transceiver
ADJ Aria X2 Transceiver
ADJ Aria X2 Transceiver

Specification

  • • Single DMX Universe
  • • 900Mhz., 2.4 GHz WiFi and Bluetooth
  • • Configuration via App or Front Panel
  • • Wireless to DMX or DMX to Wireless

  • • DMX
  • • RDM (Planned for future software release)
  • • Proprietary 802.15.4
  • • Aria X2 Mesh Protocol (Planned for future software release)
  • • Bluetooth 5.2 (BLE)
  • • Aria X2 Serial Protocol

    • • 2404-2480 MHz
    • • 863-870 MHz (EU)
    • • 902-928 MHz
    • • Radio module: Aria X2

    • • CSMA
    • • Adaptive frequency hopping (on the roadmap)
    • • OTA updates

    • • Antenna: 5G JT SMA

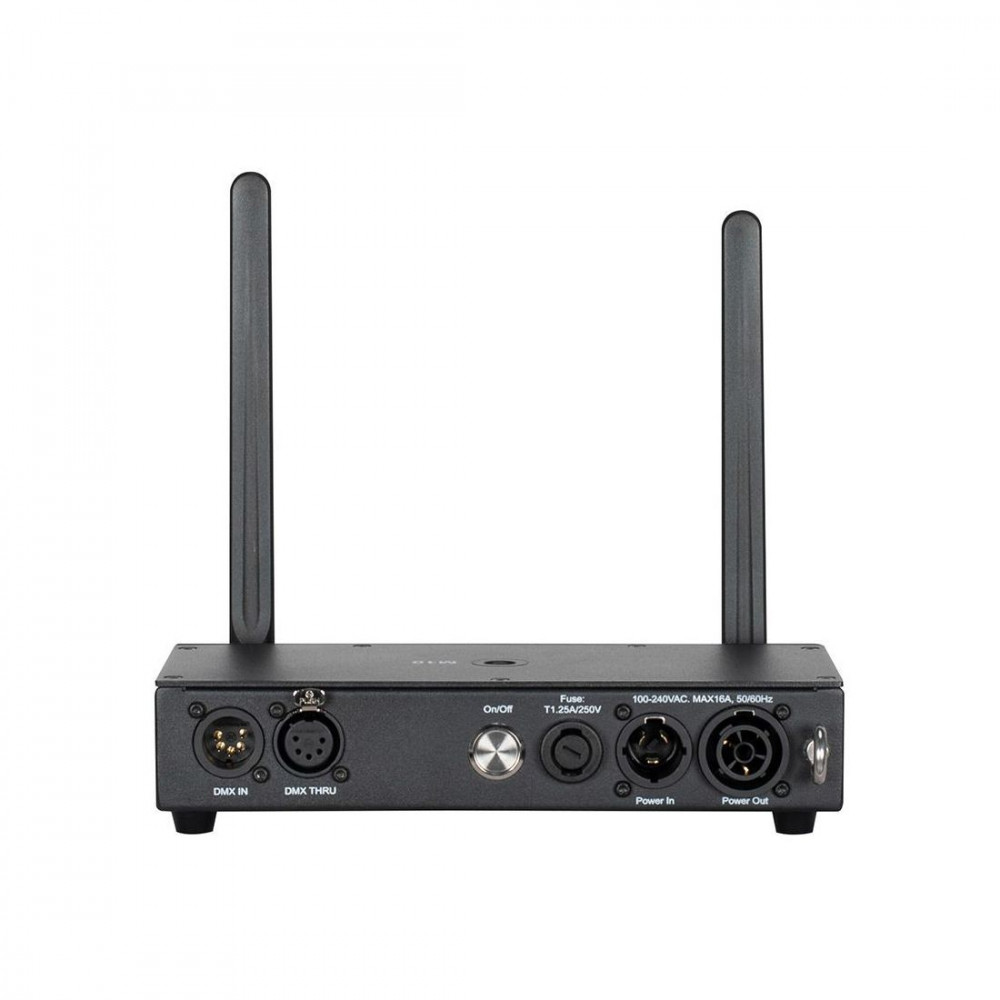

    • • DMX: 5-pin XLR Input and Output
    • • DC: 2.5mm/5.5mm Barrel connector
    • • Outdoor Locking Power Input and Output

    • • AC100-240V 50/60Hz
    • • Power Consumption: 2W
    • • Power Fuse: T1.25A/250V. (5 x 20mm)

    • • IP20 Aluminum / Metal enclosure

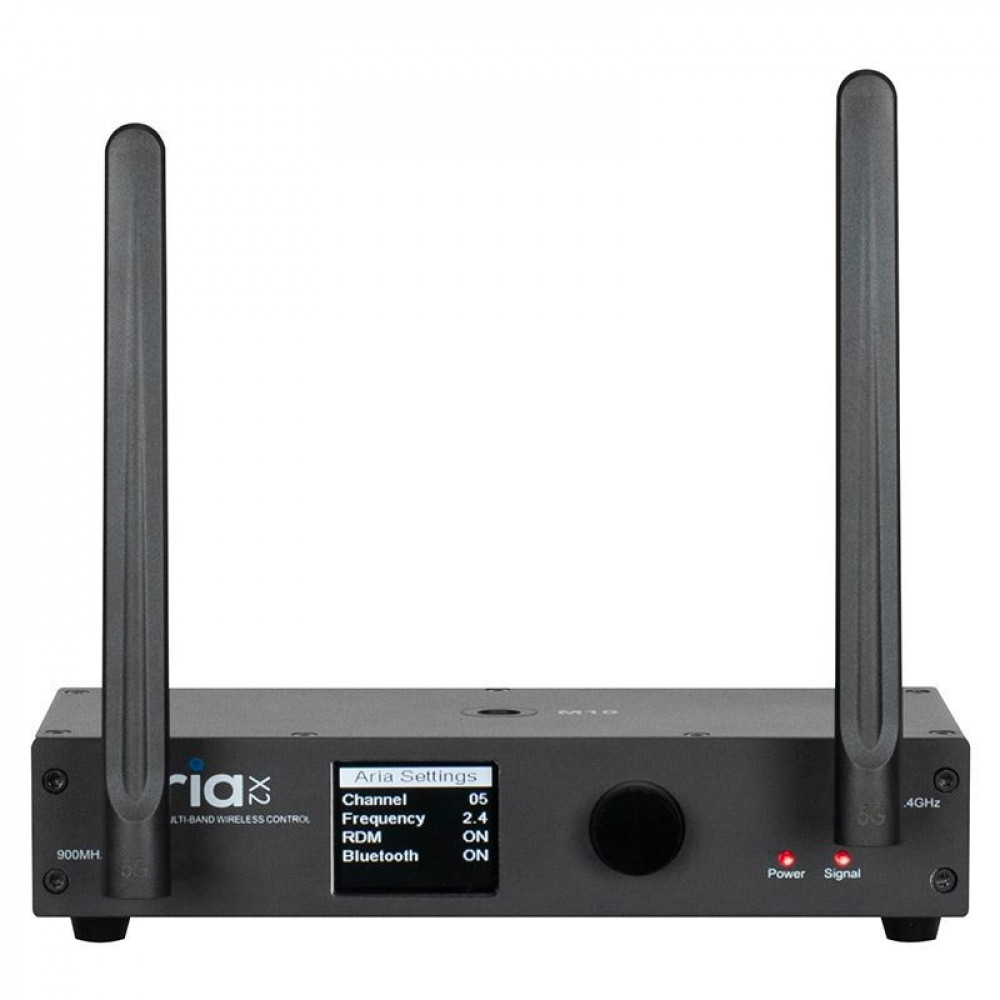

    • • Front panel screen and rotary knob
    • • M10 and M12 Threads
    • • Safety Eyelet
    • • Max ambient operating temp: 45°C
    • • Max operating humidity: <75%
    • • Storage temperature: 25°C
    • • Rack and wall mount accessories

    • • Length: 163.95mm
    • • Width: 215.30mm
    • • Height: 42mm
    • • 1.23 kg
