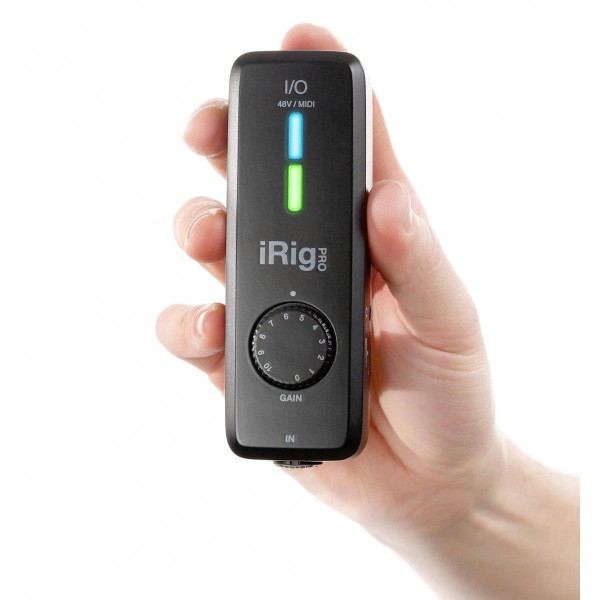

IK MULTIMEDIA iRig Pro I/O

Specs

iRig Pro I/O Specifications

Microphone Input

Microphone Input: balanced female 3-pin, XLR. Pin 2: hot / Pin 3: cold / Pin 1: ground

Microphone Input Level: from 6 mVpp to 1.4 Vpp

Microphone Input Impedance: 3.2 kOhms

Gain Range: 40 dB

Phantom Power: +48V ± 4V

Frequency Response: 20 Hz - 20 kHz +/-1.5dB

Input Noise: -103 dB(A), -97 dB RMS

Instrument Input

Instrument Input: unbalanced, Hi-Z, TS 1/4" Jack, Tip: signal / Shield: ground

Instrument Input Level: from 30 mVpp to 6.9 Vpp

Instrument Input Impedance: 1 MOhms

Gain Range: 27 dB

Frequency Response: 20 Hz - 20 kHz +/-1.5dB

Input Noise: -103 dB(A), -97 dB RMS

Stereo Headphone Output

Connector: 1/8" TRS Jack. Tip: right / Ring: left / Shield: ground

Headphone Level Control numbered thumbwheel

Headphone Level Power 100mW into 50 Ohms

Stereo Headphone Output

Connector: 1/8" TRS Jack. Tip: right / Ring: left / Shield: ground

Headphone Level Power 100mW into 50 Ohms

MIDI Input/Output

Connector: 2x2.5mm TS Jack

Other Input/Output

DC barrel: 1x DC barrel. For power and device charging.

Device Connector: mini-DIN

Common

Conversion: 24-bit A/D, 24-bit D/A

Sampling Rate: 44.1 kHz, 48 kHz, 88.2 kHz and 96 kHz

Power:

- USB bus powered when used with a computer

- Battery powered (2xAA included) when used with an iOS device

- DC power supply (not included, iRig PSU 3A sold separately)*

Package includes

iRig Pro I/O universal Audio-MIDI interface

Lightning to Mini-DIN connection cable with charging features (60cm/23.62")

USB-A to Mini-DIN connection cable (60cm/23.62")

2.5mm TRS male to MIDI female adapter (10cm / 3.9")

2 x 1.5V AA Battery

Velcro strip

Dimensions

Size: 43mm/1.69" x 127mm/5" x 37mm/1.46"

Weight: ~120g/4.23oz (batteries excluded)

Compatibility

iOS Devices

Compatible with iPhone 7 Plus, iPhone 7, iPhone SE, iPhone 6s Plus, iPhone 6s, iPhone 6 Plus, iPhone 6, iPhone 5s, iPhone 5c, iPhone 5, iPod touch 6th generation, iPod touch 5th generation, iPad Pro (12.9-inch), iPad mini 4, iPad Air 2, iPad mini 3, iPad Air, iPad mini 2, iPad mini, iPad 4th generation. iOS 6 or later is required.

Also compatible with all newer iPhone, iPad and iPod touch models.

Computers

Mac®: Mac OS X 10.6 or later. One free USB port.

Windows®: One free USB port. For low latency, the IK Multimedia's iRig audio driver must be installed. Download the iRig ASIO driver here.


Android Devices

Compatible with Android devices running Android 5 or later and with USB digital audio capabilities.

Micro-USB-OTG to Mini-DIN cable (sold separately) is required.

* Use only the specified AC adaptor

Use only the specified AC adaptor (iRig PSU 3A) and make sure the line voltage at the installation matches the input voltage specified on the AC adaptor's body. IK Multimedia will not be responsible of any damage caused by usage of any AC adaptor other than the specified one (iRig PSU 3A). The usage of AC adaptors other than the specified one (iRig PSU 3A) could compromise the user experience in terms of: Safety risk, Apple device charging performances, Noise performances.
