OMNITRONIC OD-4T W (pair)

OMNITRONIC OD-4T W (pair)
OMNITRONIC OD-4T W (pair)
OMNITRONIC OD-4T W (pair)
OMNITRONIC OD-4T W (pair)
OMNITRONIC OD-4T W (pair)
OMNITRONIC OD-4T W (pair)
Weatherproof wall speaker pair (IP65)

  • 100 V PA speaker systems with an excellent sound for general applications
  • 2-way system with 10 cm woofer (4") and 1.5 cm tweeter (0.5")
  • Weatherproof (IP65) plastic cabinet with metal grille and cover for the connectors
  • 100 V transformer with 4 power taps (2 W, 4 W, 8 W and 16 W)
  • Power selector switch with 8 ohms operating position

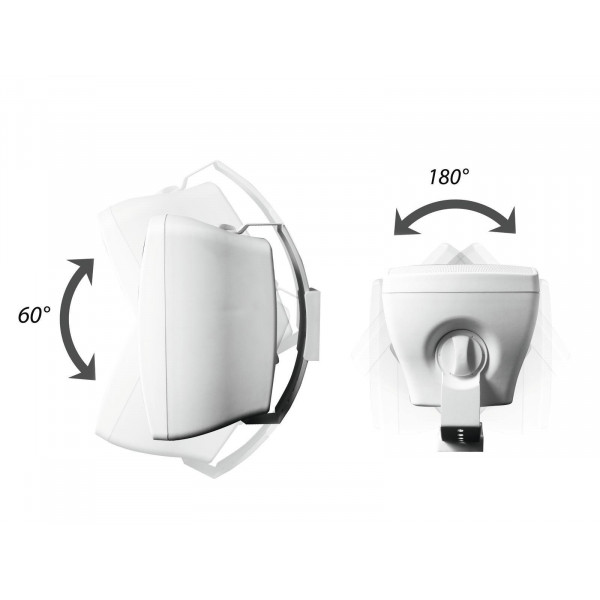

  • Panning and tilting mounting bracket allows ceiling or wall installation in most varying angles
  • Connection via pole terminals
  • Packed as a pair
  • For indoor and outdoor PA applications
  • Suitable for outdoor use

TECHNICAL SPECIFICATIONS
  • Power supply: 100 V DC
  • IP classification: IP65
  • Rated power: 16 W RMS
  • Program power: 32 W
  • Frequency range: 100 - 20000 Hz
  • Sensitivity: 88 dB
  • Max. SPL: 91 dB
  • Dispersion angle: 170° x 170°
  • Impedance: 8 Ohm; 100 V ELA
  • Power tapping: 2W; 4W; 8W; 16W RMS via Selector switch switchable
  • Connections: Input: speakers via screw terminal
  • Speakers: 1 x woofer (4") approx. 10 cm, Horn (0.5") approx. 1.27 cm
  • Type of speaker: Compact cabinet speaker
  • Dimension: Width: 12.5 cm
  • Depth: 12.5 cm
  • Height: 19.5 cm
  • Weight: 3.66 kg
Installation speakers
Colour White
Speakers & PA systems
100 V Yes
Frequency Response (Hz) 100 - 20.000
Impedance, Ω 8
Loudspeaker diameter (inches) 4
Power (RMS), W 16/8/4
