MONACOR IT-30

IT-30

• Weatherproof horn speaker
• 100 V line technique
• Weatherproof and IP66 tested
• Protected against powerful water jets
• Suitable for general indoor and outdoor applications
• Aluminium housing
• Mounting bracket and screws made of stainless steel
• 4-step power selector switch

• Active/passive: passive
• Transmission method: 100 V
• Total power rating: 20 W
• Power rating (RMS): 20/15/10/5 W
• Frequency range: 250-10,000 Hz
• Number of speakers: 1
• Sensitivity: 108 dB/W/m

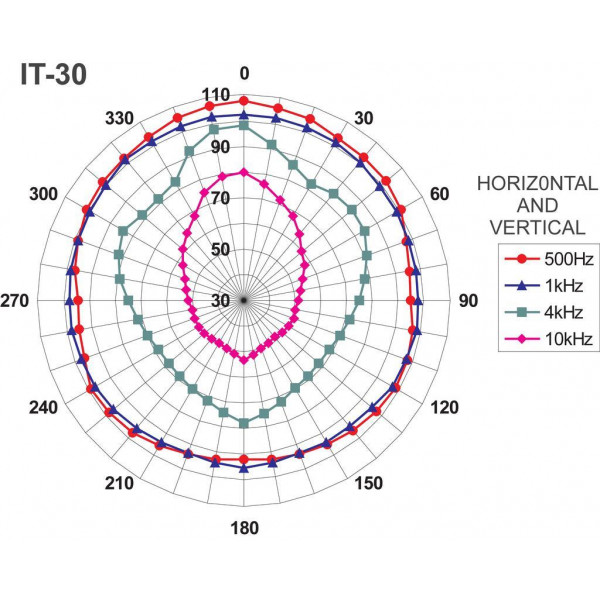

• Beam angle: H: 80°/V: 80°
• Radiation angle, horizontal: 80°
• Radiation angle, vertical: 80°
• Features: power selector switch
• Housing material: aluminium
• Colour: dark grey
• Mounting device stainless steel: mounting bracket
• Protection class: IP66
• Admiss. ambient temp.: -20 °C to +50 °C
• Dimensions: Ø 265 mm x 310 mm
• Width: Ø 265 mm
• Depth: 310 mm
• Weight: 2.25 kg
• Replacement voice coil: IT-230/VC
• Other features: weatherproof
