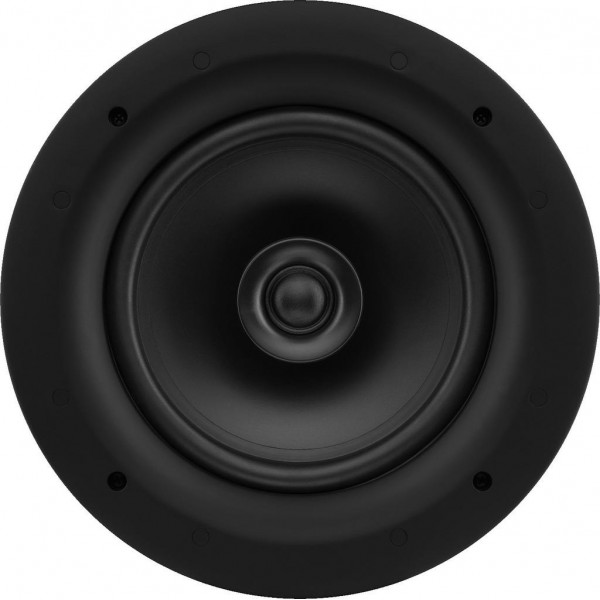

EDL-82HQ
- PA hi-fi wall and ceiling speaker, 30 W
- 100 V line technique or 8 Ω operation
- 2-way version with coaxial dome tweeter
- 20 cm (8") bass speaker with waveguide and 25 mm (1") silk dome
- Pivoting tweeter via ball joint
- Excellent sound characteristics
- Stylish flush fit protective metal grille with slim plastic frame
- Protective grille magnetically attached to speaker front
- For a wall thickness/ceiling thickness from 6 to 35 mm
Technical specifications EDL-82HQ
EDL-82HQ
- Impedance (Z): 8 Ω
- Transmission method: 100 V or low-impedance
- Frequency range: 30-20,000 Hz
- Resonant frequency (fs): 40 Hz
Power rating (RMS):
- 50 W (8 Ω)
- 30/16/8/4 W (100 V)
- Peak music power output (MAX): 100 W
- Sensitivity: 89 dB/W/m
- Mounting cutout: Ø 252 mm
- Mounting depth: 97 mm
- Dimensions: Ø 295 mm x 100 mm
- Outside diameter: Ø 295 mm
- Width: Ø 295 mm
- Depth: 100 mm
- Admiss. ambient temp.: 0-40 °C
- Weight: 2 kg
- Packing unit: 1
- Type of speaker: 200
Skandas un PA sistēmas | |
100 V | Jā |
Frekvenču diapazons (Hz) | 30- 20.000 |
Jauda (RMS), W | 30/16/8/4 |
Korpusa materiāls | Plastmasas |
Pretestība, Ω | 8 |
Skaļruņa diametrs (collas) | 8 |
Skaļums (max SPL), dB | 89 |
